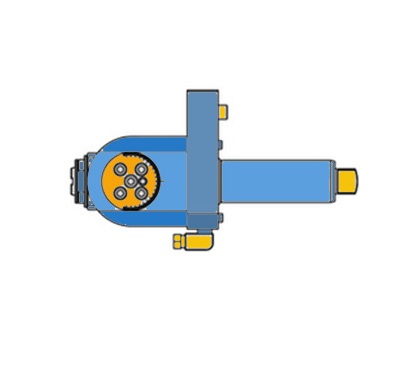

VDI30 DIN1809 UNIVERSAL DRILLING MILLING HEAD ER16A L=105 mm FOR MORI SEIKI ZT1500
THS004641
Compatible lathes
- MORI SEIKI MT-1500 TURRET RADIAL (STAR TYPE), MORI SEIKI ZT1500 VDI30 TURRET 30, DIN1809,
- MORI SEIKI ZT-1500Y TURRET RADIAL VDI30 DIN1809 TURRET RADIAL (STAR TYPE), MORI SEIKI ZT1500 VDI30 TURRET 30, DIN1809, Y-AXIS
- MORI SEIKI ZT-1000Y TURRET RADIAL VDI30 DIN1809 TURRET RADIAL (STAR TYPE), MORI SEIKI ZT1500 VDI30 TURRET 30, DIN1809, Y-AXIS
- MORI SEIKI NZ-2000 TURRET RADIAL VDI30 DIN1809 TURRET RADIAL (STAR TYPE), VDI 30, DIN1809,
- MORI SEIKI ZT-1500 TURRET VDI30 DIN1809 TURRET RADIAL (STAR TYPE), MORI SEIKI ZT1500 VDI30 TURRET 30, DIN1809, ANY
- MORI SEIKI ZT-1000 TURRET VDI30 DIN1809 TURRET ANY, MORI SEIKI ZT1500 VDI30 TURRET 30, DIN1809,
- MORI SEIKI ZT-1500YB TURRET RADIAL (STAR TYPE), MORI SEIKI ZT1500 VDI30 TURRET 30, DIN1809, Y-AXIS
- MORI SEIKI NZ-2000 VDI30 TURRET RADIAL (STAR TYPE), MORI SEIKI ZT1500 VDI30 TURRET 30, DIN1809, ANY
- MORI SEIKI NZ-1500 VDI30 TURRET RADIAL (STAR TYPE), MORI SEIKI ZT1500 VDI30 TURRET 30, DIN1809, ANY
- MORI SEIKI NL-1500 VDI30 TURRET TURRET RADIAL (STAR TYPE), VDI 30, STATIC,
- MORI SEIKI NL-2500 VDI30 TURRET TURRET RADIAL (STAR TYPE), VDI 30, STATIC,
$ USD
502900
502900

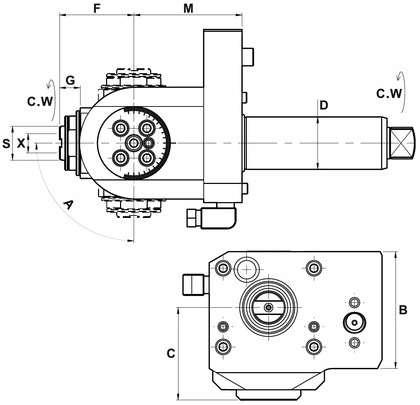

| SKU | D | X Capacity |
S | RPM | A | B | C | F | G | M | MORI SEIKI LATHE |
| THS004641 | 30 | 1-10 ER16 | 19.5 | 4000 | ±90° | 70 | 53 | 42.5 | 12 | 62 | MORI SEIKI ZT-1500 MORI SEIKI NZ-2000 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004641 VDI30 DIN1809 UNIVERSAL DRILLING MILLING HEAD ER16A L=105 mm FOR MORI SEIKI ZT1500 | ||||||
| UNIVERSAL | ER16 | 105 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202505.11
Tool holder machine interface: ANY turret, MORI SEIKI ZT1500 VDI30 TURRET-30, DIN1809, ANY
