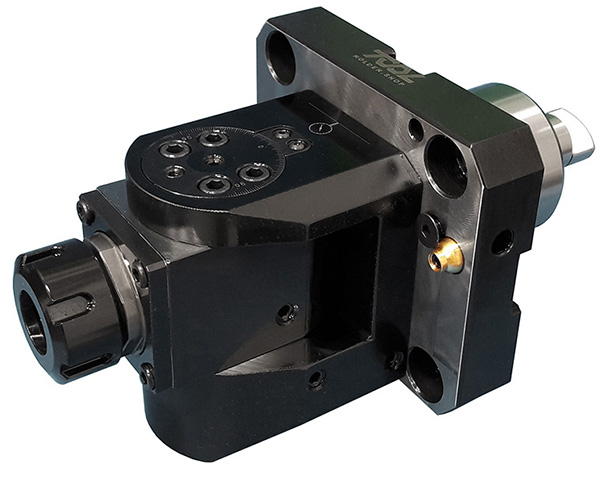

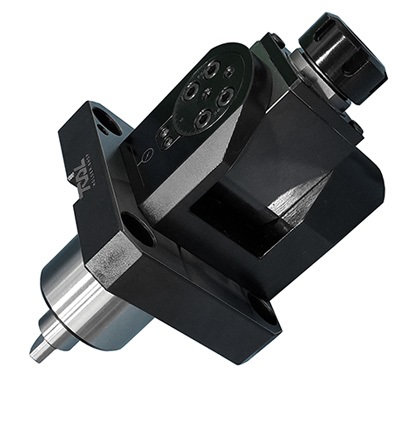

BMT40 BOLT PATTERN 62x70 DRILLING MILLING HEAD UNIVERSAL ER20 L=128 mm MORI NZ1500 NZ2000
THS006070
Compatible lathes
- MORI SEIKI NT-1000 TURRET DIA.40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI DURATURN DT-2550MC TURRET DIA.40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NL-1500 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NL-2000 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NLX-1500 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NLX-2500 TURRET BMT40 20 TOOL POSITIONS TURRET
- MORI SEIKI NLX-2000 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NZ-2000 BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
- MORI SEIKI NZ-2000CC BMT40 20 TOOLS TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
- MORI SEIKI NZ-1500 BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
- GANESH ASL-8M TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
- MORI SEIKI NL-2500 TURRET BMT40 20 TOOLS TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
| SKU | D | X Capacity |
S | RPM | A | B | C | F | G | M | MORI SEIKI LATHE |
| THS004344 | 60 | ER25 | 42 | 4000 | ±90° | 108 | 65 | 65.5 | 29.5 | 80 | MORI SEIKI NL-1500 MORI SEIKI NL-2000 MORI SEIKI NL-2500 MORI SEIKI NL-3000 |
| THS006070 | 40 | ER20 | -- | 4000 | ±90° | -- | -- | -- | -- | -- | MORI SEIKI NL-1500 20TLS MORI SEIKI NZ-2000 20TLS MORI SEIKI NL-2500 20TLS MORI SEIKI NL-3000 20TLS GANESH ASL-8M |
Updated 2021.09.15
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004344 BMT60 BOLT PATTERN 84x94 UNIVERSAL DRILLING MILLING HEAD ER25 L=181 mm MORI NL1500 NL2000 | ||||||
| UNIVERSAL | ER25 | 181 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS006070 BMT40 BOLT PATTERN 62x70 DRILLING MILLING HEAD UNIVERSAL ER20 L=128 mm MORI NZ1500 NZ2000 | ||||||
| UNIVERSAL | ER20 | 128 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 62x70 MORI SEIKI BMT40 MORI SEIKI NZ 2000, STATIC, ANY
COMPATIBLE LATHES
MORI SEIKI NT-1000 TURRET DIA.40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI DURATURN DT-2550MC TURRET DIA.40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NL-1500 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NL-2000 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NLX-1500 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NLX-2500 TURRET BMT40 20 TOOL POSITIONS TURRET ; MORI SEIKI NLX-2000 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NZ-2000 BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY; MORI SEIKI NZ-2000CC BMT40 20 TOOLS TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY; MORI SEIKI NZ-1500 BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY; GANESH ASL-8M TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY; MORI SEIKI NL-2500 TURRET BMT40 20 TOOLS TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY;
