BMT40 DIN1809 BOLT PATTERN 62x70 RADIAL DRILLING MILLING HEAD ER25A L=101mm IC MORI NZ2000
THS005702
Compatible lathes
- MORI SEIKI NT-1000 TURRET DIA.40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI DURATURN DT-2550MC TURRET DIA.40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NL-1500 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NL-2000 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NLX-1500 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NLX-2500 TURRET BMT40 20 TOOL POSITIONS TURRET
- MORI SEIKI NLX-2000 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NZ-2000 BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
- MORI SEIKI NZ-2000CC BMT40 20 TOOLS TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
- MORI SEIKI NZ-1500 BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
- GANESH ASL-8M TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
- MORI SEIKI NL-2500 TURRET BMT40 20 TOOLS TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
305100

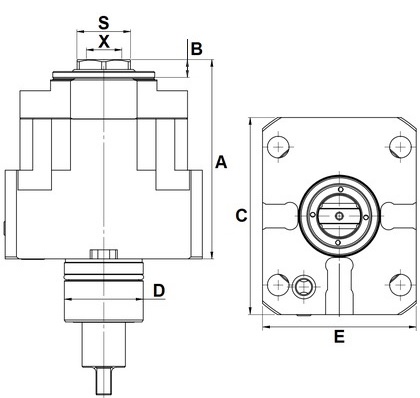

| SKU | D | X Capacity |
S | RPM | A | B | C | E | MORI SEIKI LATHE |
| THS013271 | 40 | 1~16 ER25A | 32 | 6000 | 77.4 | 5.6 | 100 | 78 | MORI SEIKI NZ-1500 MORI SEIKI NZ-2000 |
| THS005702 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS005702 BMT40 DIN1809 BOLT PATTERN 62x70 RADIAL DRILLING MILLING HEAD ER25A L=101mm IC MORI NZ2000 | ||||||
| ANGLE 90 DEGREE | ER25 | 101 mm |
CW-CCW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS013271 BMT40 BOLT PATTERN 62x70 DIN1809 AXIAL DRILLING MILLING HEAD ER25A L=75 MORI SEIKI NZ2000 | ||||||
| STRAIGHT | ER25 | 75 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 62x70 MORI SEIKI BMT40 MORI SEIKI NZ 2000, STATIC, ANY
COMPATIBLE LATHES
MORI SEIKI NT-1000 TURRET DIA.40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI DURATURN DT-2550MC TURRET DIA.40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NL-1500 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NL-2000 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NLX-1500 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NLX-2500 TURRET BMT40 20 TOOL POSITIONS TURRET ; MORI SEIKI NLX-2000 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NZ-2000 BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY; MORI SEIKI NZ-2000CC BMT40 20 TOOLS TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY; MORI SEIKI NZ-1500 BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY; GANESH ASL-8M TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY; MORI SEIKI NL-2500 TURRET BMT40 20 TOOLS TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY;
