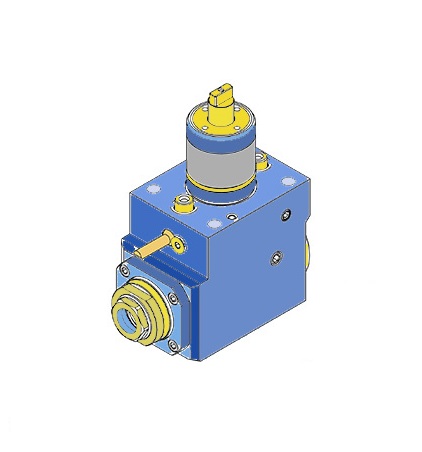

MIYANO RADIAL DRILLING MILLING HEAD ER25A L= 65 mm FOR MIYANO MIYANO ABX MIYANO BNJ
THS013797
Compatible lathes
- MIYANO LZ-02R2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO LZ-01R2 TURRET
- MIYANO ABX-51THY TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-51SY RADIAL TURRET TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64TH2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64SY TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- POLYGIM DIAMOND-52 DOUBLE-SPINDLE SINGLE-TURRET TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-51SY3 DIA.45 TURRET
- MIYANO BNJ-42SY3 DIA.45 TURRET
- MIYANO BNJ-42SY2 DIA.45 TURRET
- MIYANO BNJ-51SY2 DIA.45 TURRET
- MIYANO BND-51SY2 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- POLYGIM DIAMOND-60 DOUBLE-SPINDLE SINGLE-TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BNE-51SY5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64SY2 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNE-42S6 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO ABX-51TH3 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BND-34SY5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64TH3 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-51SY2 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY2 DIA.45 TURRET
- MIYANO BNE-51S5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BNE-42SY6 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34S2 DIA.45 TURRET
- MIYANO BND-34S5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BNJ-51S2 DIA.45 TURRET
- MIYANO BNJ-42S3 DIA.45 TURRET
- MIYANO BNE-51SY6 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY3 DIA.45 TURRET
- MIYANO BNJ-42S2 DIA.45 TURRET
- MIYANO BNJ-51S3 DIA.45 TURRET
- MIYANO BNE-51S6 DIA.45 TURRET
- MIYANO BNJ-34S3 DIA.45 TURRET
- MIYANO BND-51C2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO LZ-02RY2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO LZ-01RY2 TURRET
- MIYANO ABX-51TH2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BND-51SY TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64TH TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO BND-51S TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO ABX-51TH TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO BNJ-51SY6 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BND-51S TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO LZ-01R TURRET
- MIYANO LZ-02R TURRET
- MIYANO BNX-51MY TURRET ANY, MIYANO ABX BNE BNJ BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, Y-AXIS
- MIYANO BNX-51MSY TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- YAMA SEIKI GLS-2000LYS TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
$ USD
323300
323300
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS013797 MIYANO RADIAL DRILLING MILLING HEAD ER25A L= 65 mm FOR MIYANO MIYANO ABX MIYANO BNJ | ||||||

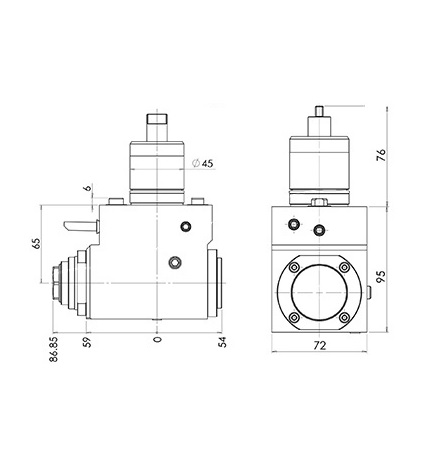

| ANGLE 90 DEGREE | ER25 | 65 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202505.11
Tool holder machine interface: RADIAL (STAR TYPE) turret, MIYANO ABX BNE BNJ-45, DIN1809, ANY
