MIYANO DRILLING MILLING RADIAL HEAD ER25 L=65 mm FOR MIYANO BNE34S BND51
THS004373
Compatible lathes
- MIYANO BNJ-42S DIA.45 TURRET
- MIYANO LZ-02R2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO LZ-01R2 TURRET
- MIYANO BNE-51S DIA.45 FROM MAY 2007 TURRET ANY, MIYANO ABX BNE BNJ 45, BEVEL GEAR, ANY
- MIYANO BND-51S2 DIA.45 TURRET
- MIYANO BNJ-34S DIA.45 TURRET
- MIYANO BNE-34S3 DIA.45 TURRET
- MIYANO LZ-02RY2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY DIA.45 TURRET
- MIYANO LZ-01RY2 TURRET
- MIYANO BNJ-42SY DIA.45 TURRET
- MIYANO BNE-34S DIA.45 TURRET
- MIYANO BNE-34S2 TURRET
- MIYANO BND-34TR TURRET
- MIYANO LZ-01R TURRET
- MIYANO LZ-02R TURRET
- MIYANO BND-42C5 TURRET ANY, BMT BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, ANY
$ USD
218200
218200

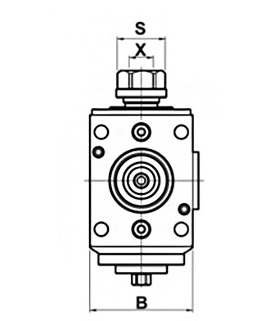

| SKU | D | X Capacity |
S | RPM | A | B | C | E | G | M | MIYANO LATHE |
| THS004687 | 45 | 1~13 ER20 | 35 | 5000 | 95 | 72 | 78 | 81 | 27.5 | 65 | MIYANO BND-51S2 MIYANO BNE-34S2 MIYANO 51S MIYANO LZ-01R2 MIYANO RY2 MIYANO 02R2 MIYANO RY2 |
| THS004373 | 1~16 ER25 | 42 | 5000 | 95 | 72 | 82 | 81 | 27.5 | 65 | ||
| THS003928 | 45 | 1~13 ER20 | 35 | 5000 | 95 | 72 | 77.5 | 116 | 27.5 | 65 | MIYANO BNJ-34S MIYANO 42S MIYANO BNJ-34SY MIYANO 42SY |
| THS004771 | 1~16 ER25 | 42 | 5000 | 95 | 72 | 83 | 116 | 28.5 | 65 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS003928 MIYANO DRILLING MILLING RADIAL HEAD ER20 L=65 mm MIYANO ABX BNJ34 BNJ42S MIYANO 2K701001 | ||||||
| ANGLE 90 DEGREE | ER20 | 65 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004373 MIYANO DRILLING MILLING RADIAL HEAD ER25 L=65 mm FOR MIYANO BNE34S BND51 | ||||||
| ANGLE 90 DEGREE | ER25 | 65 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004687 MIYANO DRILLING MILLING RADIAL HEAD ER20 L= 65 mm FOR MIYANO BND BNE LZ MIYANO 1X783100 | ||||||
| ANGLE 90 DEGREE | ER20 | 65 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004771 MIYANO DRILLING MILLING RADIAL HEAD ER25 L= 65 mm FOR MIYANO ABX BNJ34 BNJ42S | ||||||
| ANGLE 90 DEGREE | ER25 | 65 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS016717 MIYANO DRILLING MILLING RADIAL HEAD ER25 L=65 mm COOLANT THROUGH FOR MIYANO BNE34S BND51 | ||||||
| ANGLE 90 DEGREE | ER25 | 65 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS016718 MIYANO DRILLING MILLING RADIAL HEAD ER20 L= 65 mm COOLANT THROUGH FOR MIYANO BNE34S BND51 | ||||||
| ANGLE 90 DEGREE | ER20 | 65 mm |
CW-CCW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS017888 MIYANO RADIAL SPEEDER 1:2 RPM 8000 ER20 L= 65 mm INT CLNT MIYANO BNE34 MIYANO BNE51SY | ||||||
| ANGLE 90 DEGREE | ER20 | 65 mm |
CW-CCW SPEEDER |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
Updated 202505.11
Tool holder machine interface: ANY turret, MIYANO ABX BNE BNJ-45, BEVEL GEAR, ANY
