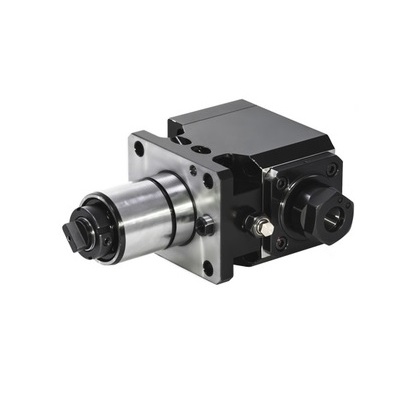

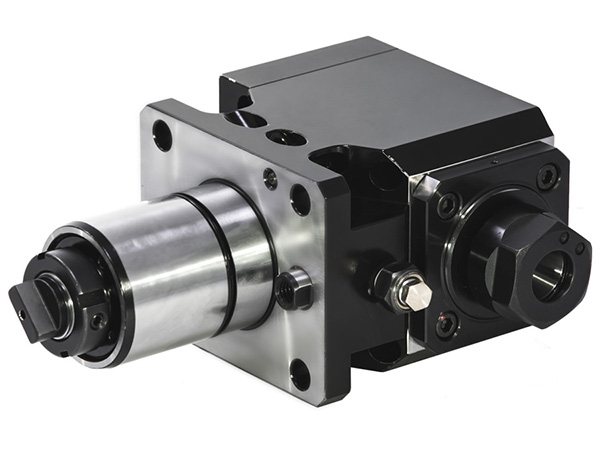

MIYANO DRILLING MILLING RADIAL HEAD ER25 L= 65 mm FOR MIYANO ABX BND BNE BNJ
THS004362
Compatible lathes
- MIYANO LZ-02R2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO LZ-01R2 TURRET
- MIYANO ABX-51THY TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-51SY RADIAL TURRET TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64TH2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64SY TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- POLYGIM DIAMOND-52 DOUBLE-SPINDLE SINGLE-TURRET TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-51SY3 DIA.45 TURRET
- MIYANO BNJ-42SY3 DIA.45 TURRET
- MIYANO BNJ-42SY2 DIA.45 TURRET
- MIYANO BNJ-51SY2 DIA.45 TURRET
- MIYANO BND-51SY2 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- POLYGIM DIAMOND-60 DOUBLE-SPINDLE SINGLE-TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BNE-51SY5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64SY2 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNE-42S6 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO ABX-51TH3 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BND-34SY5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64TH3 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-51SY2 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY2 DIA.45 TURRET
- MIYANO BNE-51S5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BNE-42SY6 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34S2 DIA.45 TURRET
- MIYANO BND-34S5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BNJ-51S2 DIA.45 TURRET
- MIYANO BNJ-42S3 DIA.45 TURRET
- MIYANO BNE-51SY6 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY3 DIA.45 TURRET
- MIYANO BNJ-42S2 DIA.45 TURRET
- MIYANO BNJ-51S3 DIA.45 TURRET
- MIYANO BNE-51S6 DIA.45 TURRET
- MIYANO BNJ-34S3 DIA.45 TURRET
- MIYANO BND-51C2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO LZ-02RY2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO LZ-01RY2 TURRET
- MIYANO ABX-51TH2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BND-51SY TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64TH TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO BND-51S TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO ABX-51TH TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO BNJ-51SY6 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BND-51S TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO LZ-01R TURRET
- MIYANO LZ-02R TURRET
- MIYANO BNX-51MY TURRET ANY, MIYANO ABX BNE BNJ BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, Y-AXIS
- MIYANO BNX-51MSY TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- YAMA SEIKI GLS-2000LYS TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
$ USD
237900
237900

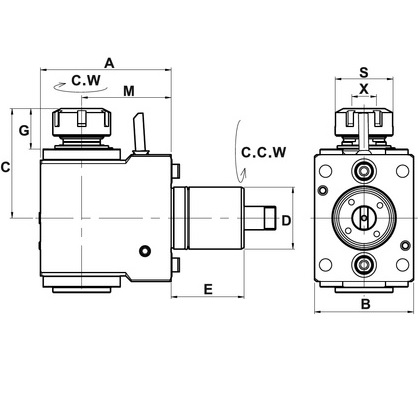

| SKU | D | ER collet size | S | RPM | A | B | C | E | G | M | MIYANO OEM compatible model | EPPINGER OEM compatible model | MIYANO LATHE |
| THS004697 | 45 | 1~13 ER20 | 35 | 6000 | 93 | 72 | 80 | 55 | 37.8 | 65 | OEM MIYANO 2W785550 | OEM EPPINGER 7.072.800 no PRECI-FLEX® | MIYANO ABX51 MIYANO ABX64 MIYANO BND51 MIYANO BNE51 MIYANO BNE51 MIYANO BNJ51 |
| THS004362 | 45 | 1~16 ER25 | 42 | 5000 | 95 | 72 | 79.5 | 53 | 29.5 | 65 | OEM EPPINGER 7.072.510 no PRECI-FLEX® | ||
| THS004367 | 45 | 1~16 ER25 | 42 | 8000 | 95 | 72 | 79.5 | 53 | 29.5 | 65 | |||
| THS003896 | 45 | 1~16 ER25 | 42 | 5000 | 116 | 72 | 79.5 | 53 | 29.5 | 85 | EPPINGER 7.072.510 no PRECI-FLEX® | ||
| THS003897 | 45 | 1~16 ER25 | 42 | 5000 | 116 | 72 | 79.5 | 53 | 29.5 | 85 | OEM EPPINGER 7.072.800 |
Updated 10.11.2021
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS003896 MIYANO DRILLING MILLING RADIAL HEAD ER25 L= 85 mm FOR MIYANO ABX BND BNE BNJ | ||||||
| ANGLE 90 DEGREE | ER25 | 85 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003897 MIYANO DRILLING MILLING RADIAL HEAD ER25 L= 85 mm INT COOLANT FOR MIYANO ABX51 | ||||||
| ANGLE 90 DEGREE | ER25 | 85 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS004362 MIYANO DRILLING MILLING RADIAL HEAD ER25 L= 65 mm FOR MIYANO ABX BND BNE BNJ | ||||||
| ANGLE 90 DEGREE | ER25 | 65 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004367 MIYANO DRILLING MILLING RADIAL HEAD ER25 L= 65 mm RPM=8000 FOR MIYANO ABX BND BNE BNJ | ||||||
| ANGLE 90 DEGREE | ER25 | 65 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004697 MIYANO DRILLING MILLING RADIAL HEAD ER20 L= 65 mm IC MIYANO 2W785550 MIYANO 2X785500 | ||||||
| ANGLE 90 DEGREE | ER20 | 65 mm |
CW-CCW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS019309 MIYANO RADIAL DRILLING MILLING HEAD ER20 L= 65 mm FOR MIYANO ABX MIYANO BNJ51 | ||||||
|
|
||||||
Updated 202505.24
Tool holder machine interface: RADIAL (STAR TYPE) turret, MIYANO ABX BNE BNJ-45, DIN1809, ANY
