MIYANO DRILLING MILLING AXIAL HEAD ER20 L= 51 mm BNJ34S BNJ42S MIYANO BNJ34SY 2K700001
THS004785
Compatible lathes
- MIYANO BNJ-42S DIA.45 TURRET
- MIYANO LZ-02R2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO LZ-01R2 TURRET
- MIYANO BNE-51S DIA.45 FROM MAY 2007 TURRET ANY, MIYANO ABX BNE BNJ 45, BEVEL GEAR, ANY
- MIYANO BND-51S2 DIA.45 TURRET
- MIYANO BNJ-34S DIA.45 TURRET
- MIYANO BNE-34S3 DIA.45 TURRET
- MIYANO LZ-02RY2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY DIA.45 TURRET
- MIYANO LZ-01RY2 TURRET
- MIYANO BNJ-42SY DIA.45 TURRET
- MIYANO BNE-34S DIA.45 TURRET
- MIYANO BNE-34S2 TURRET
- MIYANO BND-34TR TURRET
- MIYANO LZ-01R TURRET
- MIYANO LZ-02R TURRET
- MIYANO BND-42C5 TURRET ANY, BMT BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, ANY
$ USD
142200
142200
| SKU | D | X Capacity |
S | RPM | A | B | C | E | G | MIYANO LATHE | MIYAMO OEM COMPATIBLE |
| THS004677 | 38 | 1~13 ER20 | 35 | 6000 | 70 | 74 | 62 | 57 | 30 | MIYANO BNE-34S3 MIYANO BNE-51S |
|

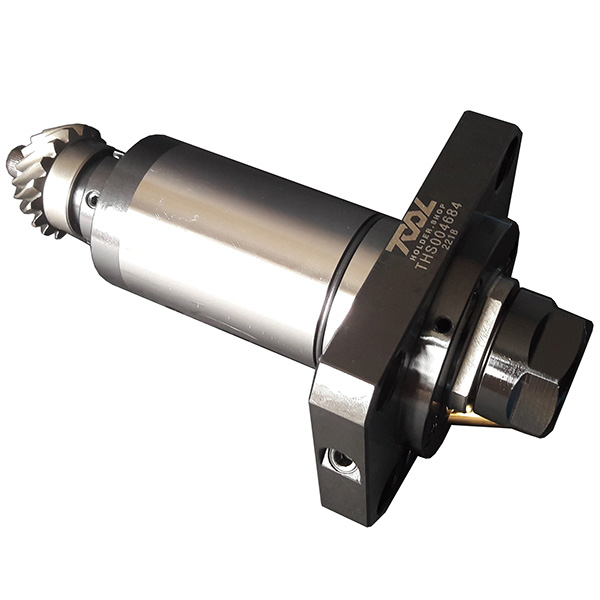

| THS004684 | 45 | 1~13 ER20 | 35 | 6000 | 92 | 72 | 52 | 81 | 32 | MIYANO BND-51S2 MIYANO BNE-34S3 MIYANO BNE-51S MIYANO LZ-01R2 MIYANO LZ-01RY2 MIYANO LZ-02R2 MIYANO LZ-02RY2 |
OEM MIYANO 1X783000 |
| THS004685 | 45 | 1~16 ER25 | 42 | 6000 | 92 | 72 | 54 | 81 | 33 | OEM MIYANO 1X783000 | |
| THS004666 | 45 | 1~13 ER20 | 35 | 6000 | 86 | 80 | 58 | 44.5 | 30 | MIYANO BND-51 | |
| THS004785 | 45 | 1~13 ER20 | 35 | 6000 | 92 | 72 | 50 | 116 | 28 | MIYANO BNJ-34S MIYANO BNJ-34SY MIYANO BNJ-42S MIYANO BNJ-42SY |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004666 MIYANO DRILLING MILLING AXIAL HEAD ER20 L= 58 mm FOR MIYANO BND51 | ||||||
| STRAIGHT | ER20 | 58 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004677 MIYANO DRILLING MILLING AXIAL HEAD ER20 L= 62 mm FOR MIYANO BNE34S3 BNE51S | ||||||
| STRAIGHT | ER20 | 62 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004684 DRILLING MILLING AXIAL HEAD ER20 L= 53 mm BND51S2 BNE34S3 BNE51S LZ01R2 LZ02RY2 1X783000 | ||||||
| STRAIGHT | ER20 | 53 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004685 MIYANO DRILLING MILLING AXIAL HEAD ER25 L=54mm MIYANO BND51S2 BNE34S3 BNE51S LZ01R2 LZ02R2 | ||||||
| STRAIGHT | ER25 | 54 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004785 MIYANO DRILLING MILLING AXIAL HEAD ER20 L= 51 mm BNJ34S BNJ42S MIYANO BNJ34SY 2K700001 | ||||||
| STRAIGHT | ER20 | 51 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202505.11
Tool holder machine interface: ANY turret, MIYANO ABX BNE BNJ-45, BEVEL GEAR, ANY
