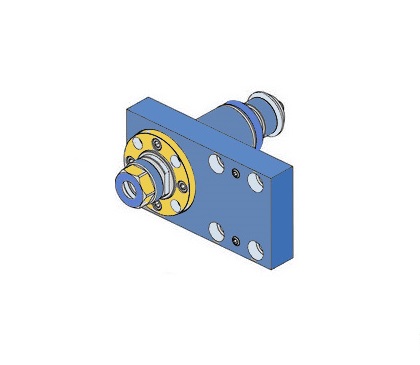

MIYANO DRILLING MILLING AXIAL HEAD ER16 L= 53 mm OEM MIYANO 1U783000 FOR MIYANO BNC
THS004664
Compatible lathes
- MIYANO BNC-20R TURRET
- MIYANO BNC-34S6 TURRET RADIAL (STAR TYPE), MIYANO BNC 38, BEVEL GEAR,
- MIYANO BNC-34C5R TURRET RADIAL (STAR TYPE), MIYANO BNC 38, BEVEL GEAR,
- MIYANO BNC-42C5R TURRET RADIAL (STAR TYPE), MIYANO BNC 38, BEVEL GEAR,
- MIYANO BNC-42S6 TURRET RADIAL (STAR TYPE), MIYANO BNC 38, BEVEL GEAR,
$ USD
144900
144900

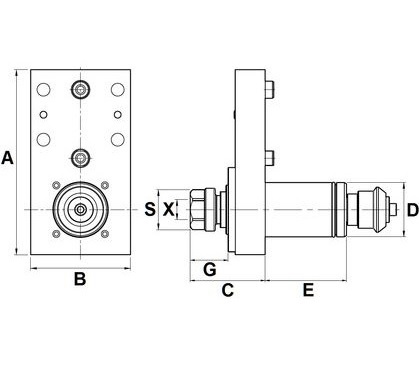

| SKU | D | X Capacity |
S | RPM | A | B | C | E | G | MIYANO LATHE |
| THS004664 | 38 | 1~10 ER16 | 30 | 6000 | 129.5 | 70 | 52.5 | 57 | 26.5 | MIYANO BNC |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004664 MIYANO DRILLING MILLING AXIAL HEAD ER16 L= 53 mm OEM MIYANO 1U783000 FOR MIYANO BNC | ||||||
| STRAIGHT | ER16 | 53 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
COMPATIBLE LATHES
MIYANO BNC-20R TURRET ; MIYANO BNC-34S6 TURRET RADIAL (STAR TYPE), MIYANO BNC 38, BEVEL GEAR, ; MIYANO BNC-34C5R TURRET RADIAL (STAR TYPE), MIYANO BNC 38, BEVEL GEAR, ; MIYANO BNC-42C5R TURRET RADIAL (STAR TYPE), MIYANO BNC 38, BEVEL GEAR, ; MIYANO BNC-42S6 TURRET RADIAL (STAR TYPE), MIYANO BNC 38, BEVEL GEAR, ;
