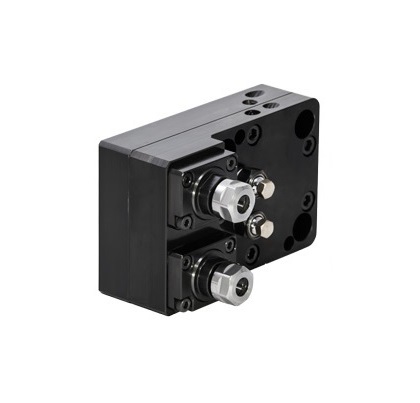

MIYANO DRILLING MILLING AXIAL HEAD ER11x2 L= 78 mm OEM MIYANO CL70A000 Y-AXIS MIYANO BNA
THS004682
Compatible lathes
- MIYANO BNA-34DHY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS
- MIYANO BNA-42MSY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS
- MIYANO BNA-42DHY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS
- MIYANO BNA-42DHY2 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS
$ USD
395700
395700

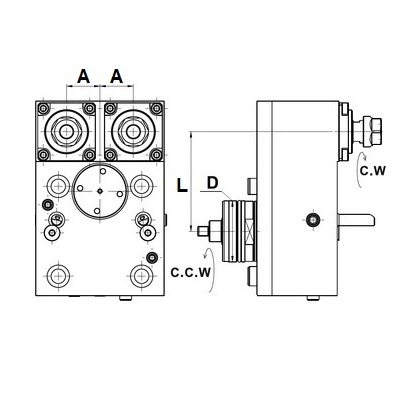

| SKU | D | Version | ER Collet size | RPM | L | A | Ratio | MIYANO LATHE | MIYANO OEM ID |
| THS004682 | A | 38 | ER11 | 5000 | 62.00 | 20.84 | - | MIYANO BNA-34DHY MIYANO BNA 42DHY MIYANO BNA-42MSY MIYANO BNA-42GTY |
OEM MIYANO CL70C000 |
| THS004682 | B | 38 | ER11 | 6000 | 59.86 | 20.00 | 1:1.66 | MIYANO BNA-34DHY MIYANO BNA 42DHY MIYANO BNA-42MSY MIYANO BNA-42GTY |
OEM MIYANO CL70A000 |
Update 2021-10-19
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004682 MIYANO DRILLING MILLING AXIAL HEAD ER11x2 L= 78 mm OEM MIYANO CL70A000 Y-AXIS MIYANO BNA | ||||||
| STRAIGHT | ER11 | 78 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: ANY turret, MIYANO BNA-38, DIN1809, Y-AXIS
COMPATIBLE LATHES
MIYANO BNA-34DHY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS; MIYANO BNA-42MSY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS; MIYANO BNA-42DHY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS; MIYANO BNA-42DHY2 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS;
