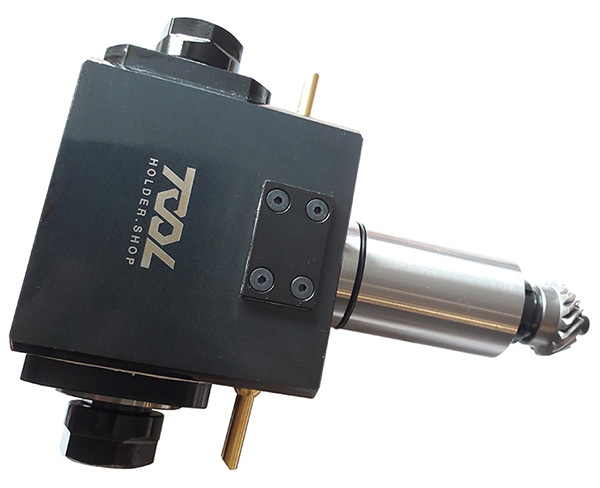

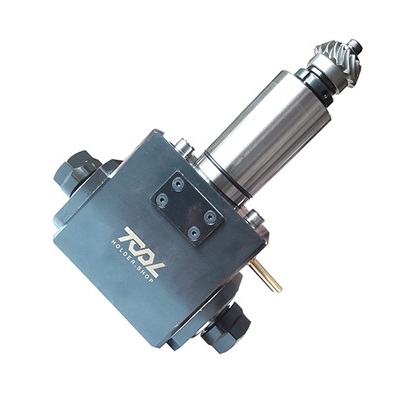

BMT BOLT PATTERN 56x68 RADIAL DRILLING MILLING HEAD DOUBLE 2xER25 L=65 MIYANO ABX BNJ34
THS004772
Compatible lathes
- MIYANO BNJ-42S DIA.45 TURRET
- MIYANO LZ-02R2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO LZ-01R2 TURRET
- MIYANO BNE-51S DIA.45 FROM MAY 2007 TURRET ANY, MIYANO ABX BNE BNJ 45, BEVEL GEAR, ANY
- MIYANO BND-51S2 DIA.45 TURRET
- MIYANO BNJ-34S DIA.45 TURRET
- MIYANO BNE-34S3 DIA.45 TURRET
- MIYANO LZ-02RY2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY DIA.45 TURRET
- MIYANO LZ-01RY2 TURRET
- MIYANO BNJ-42SY DIA.45 TURRET
- MIYANO BNE-34S DIA.45 TURRET
- MIYANO BNE-34S2 TURRET
- MIYANO BND-34TR TURRET
- MIYANO LZ-01R TURRET
- MIYANO LZ-02R TURRET
- MIYANO BND-42C5 TURRET ANY, BMT BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, ANY
510300

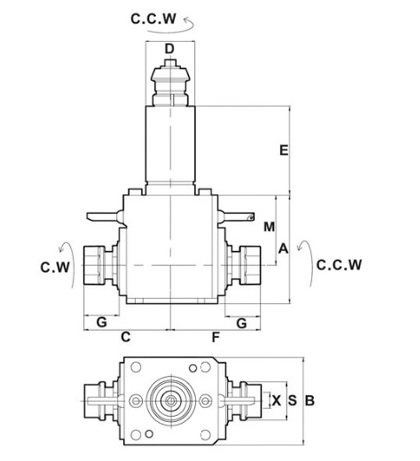

| SKU | D | X Capacity |
S | RPM | A | B | C | F | E | G | M | MIYANO LATHE |
| THS004688 | 45 | 1~16 ER25 | 42 | 4000 | 98 | 72 | 92 | 92 | 81 | 33 | 65 | MIYANO BND-51S2 MIYANO BNE-34S2 MIYANO 51S |
| THS004772 | 95 | 116 | MIYANO BNJ-34 MIYANO S42S MIYANO BNJ-34SY MIYANO 42SY |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004688 BMT BOLT PATTERN 56x68 RADIAL DRILLING MILLING DOUBLE HEAD 2xER25 L= 65 mm MIYANO BNE BND | ||||||
| ANGLE 90 DEGREE | ER25 | 65 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004772 BMT BOLT PATTERN 56x68 RADIAL DRILLING MILLING HEAD DOUBLE 2xER25 L=65 MIYANO ABX BNJ34 | ||||||
| ANGLE 90 DEGREE | ER25 | 65 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS013709 BMT BOLT PATTERN 56x68 RADIAL DRILLING MILLING HEAD 2xER20 L=65mm 1X783400 MIYANO 2K703000 | ||||||
| ANGLE 90 DEGREE | ER20 | 65 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: ANY turret, MIYANO ABX BNE BNJ-45, BEVEL GEAR, ANY
COMPATIBLE LATHES
MIYANO BNJ-42S DIA.45 TURRET ; MIYANO LZ-02R2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, ; MIYANO LZ-01R2 TURRET ; MIYANO BNE-51S DIA.45 FROM MAY 2007 TURRET ANY, MIYANO ABX BNE BNJ 45, BEVEL GEAR, ANY; MIYANO BND-51S2 DIA.45 TURRET ; MIYANO BNJ-34S DIA.45 TURRET ; MIYANO BNE-34S3 DIA.45 TURRET ; MIYANO LZ-02RY2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS; MIYANO BNJ-34SY DIA.45 TURRET ; MIYANO LZ-01RY2 TURRET ; MIYANO BNJ-42SY DIA.45 TURRET ; MIYANO BNE-34S DIA.45 TURRET ; MIYANO BNE-34S2 TURRET ; MIYANO BND-34TR TURRET ; MIYANO LZ-01R TURRET ; MIYANO LZ-02R TURRET ; MIYANO BND-42C5 TURRET ANY, BMT BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, ANY;
