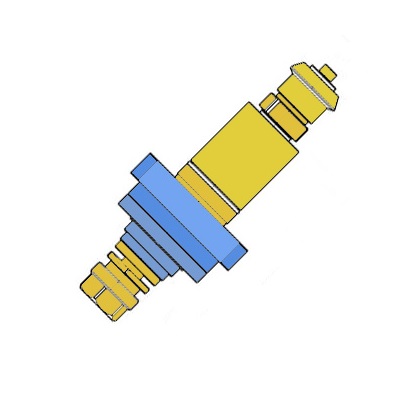

BMT BOLT PATTERN 56x68 AXIAL TAPPING HEAD ER16 L= 78 mm FOR MIYANO BNE BND
THS004770
$ USD
160100
160100

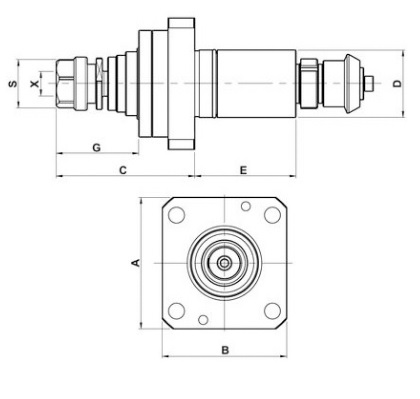

| SKU | D | X Capacity |
S | RPM | A | B | C | E | G | MIYANO LATHE |
| THS004770 | 38 | 1~10 ER16 | 30 | 3000 | 74 | 70 | 78 | 57 | 46.5 | MIYANO BNE-34S MIYANO BNE-51S |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004770 BMT BOLT PATTERN 56x68 AXIAL TAPPING HEAD ER16 L= 78 mm FOR MIYANO BNE BND | ||||||
| STRAIGHT | ER16 | 78 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: ANY turret, MIYANO ABX BNE BNJ-38, BEVEL GEAR, ANY
