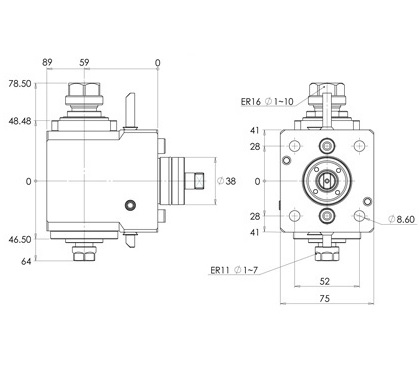

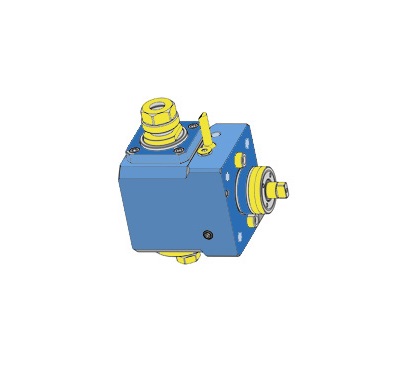

BMT BOLT PATTERN 52x56 RADIAL DRILLING MILLING HEAD DOUBLE ER16 ER11 L= 59 mm MIYANO BNA
THS004838
Compatible lathes
- MIYANO BNA TURRET DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809,
- MIYANO BNA-42S TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809,
- MIYANO BNA-34DHY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS
- MIYANO BNA-42MSY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS
- MIYANO BNA-42DHY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS
- MIYANO BNA-34S TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809,
- MIYANO BNA-34C DIA.38 TURRET ANY, MIYANO BNA 38, DIN1809, ANY
- MIYANO BNA-42C TURRET ANY, MIYANO BNA 38, DIN1809, ANY
- MIYANO BNA-42DHY2 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS
480500
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004838 BMT BOLT PATTERN 52x56 RADIAL DRILLING MILLING HEAD DOUBLE ER16 ER11 L= 59 mm MIYANO BNA | ||||||
| ANGLE 90 DEGREE | ER11 | 59 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: ANY turret, MIYANO BNA-38, DIN1809, ANY
COMPATIBLE LATHES
MIYANO BNA TURRET DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, ; MIYANO BNA-42S TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, ; MIYANO BNA-34DHY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS; MIYANO BNA-42MSY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS; MIYANO BNA-42DHY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS; MIYANO BNA-34S TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, ; MIYANO BNA-34C DIA.38 TURRET ANY, MIYANO BNA 38, DIN1809, ANY; MIYANO BNA-42C TURRET ANY, MIYANO BNA 38, DIN1809, ANY; MIYANO BNA-42DHY2 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS;
