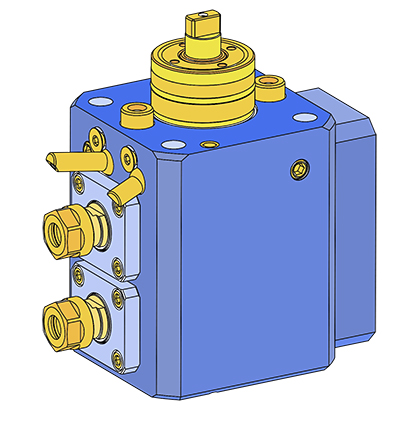

BMT BOLT PATTERN 52x56 RADIAL DRILLING MILLING HEAD DOUBLE ER11x2 L= 73 mm BNA
THS004662
Compatible lathes
- MIYANO BNA-34DHY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS
- MIYANO BNA-42MSY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS
- MIYANO BNA-42DHY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS
- MIYANO BNA-42DHY2 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS
$ USD
472900
472900
| SKU | D | X Capacity |
S | RPM | A | B | C | E | G | M | M1 | MIYANO LATHE |
| THS004662 | 38 | 1~7 ER11 | 19 | 4000 | 96 | 75 | 63 | 21 | 18.5 | 37 | 36 | BNA series |
OEM Part Code: Miyano Part No. CG70E000
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004662 BMT BOLT PATTERN 52x56 RADIAL DRILLING MILLING HEAD DOUBLE ER11x2 L= 73 mm BNA | ||||||
| ANGLE 90 DEGREE | ER11 | 73 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: ANY turret, MIYANO BNA-38, DIN1809, Y-AXIS
COMPATIBLE LATHES
MIYANO BNA-34DHY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS; MIYANO BNA-42MSY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS; MIYANO BNA-42DHY DIA.38 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS; MIYANO BNA-42DHY2 TURRET RADIAL (STAR TYPE), MIYANO BNA 38, DIN1809, Y-AXIS;
