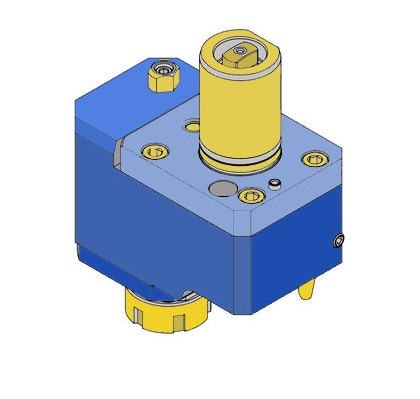

MAZAK VDI40 AXIAL TAPPING HEAD ER16 OFFSET L=50 mm FOR MAZAK MP410 MAZAK MP610
THS000709
Compatible lathes
- MAZAK MULTIPLEX MP-615N-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK SUPER QUICK TURN SQT-15MSY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK MULTIPLEX MP-6200-16D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK SUPER QUICK TURN SQT-18MSY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-18MY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-15AMS DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY
- MAZAK SUPER QUICK TURN SQT-10MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK QT-COMPACT 300MS TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK MULTIPLEX MP-6300-II TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK MULTIPLEX MP-6100-16D TURRET RADIAL DIA.40 TURRET
- MAZAK MULTIPLEX MP-410-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-6150 TURRET
- MAZAK QUICK TURN NEXUS QTN-100II-M TURRET RADIAL DIA.40 TURRET
- MAZAK SUPER QUICK TURN SQT-15MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-200MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-250MS TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK MEGATURN SMART 500S TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-200M-12D TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH), ANY
- MAZAK QUICK TURN NEXUS QTN-250M-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, STATIC,
- MAZAK MULTIPLEX MP-410N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-415N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-610-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-6200Y-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-610 TURRET
- MAZAK SUPER QUICK TURN SQT-15AM DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, STATIC, ANY
- MAZAK MULTIPLEX MP-610N-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-615 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-410N TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH), ANY
- MAZAK MULTIPLEX MP-415N TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH), ANY
297400

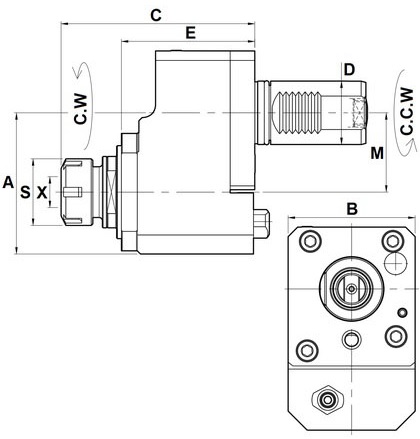

| SKU | D | X Capacity |
S | RPM | A | B | C | E | M | MAZAK LATHE | MAZAK LATHE |
| THS000709 | 40 | 1~10 ER16 | 30 | 3000 | 89 | 75 | 122 | 84 | 50 | MAZAK MP610 | MAZAK MP 410N-12D MAZAK MP 415N-12D MAZAK MP 610-12D MAZAK MP 6200-16D |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS000709 MAZAK VDI40 AXIAL TAPPING HEAD ER16 OFFSET L=50 mm FOR MAZAK MP410 MAZAK MP610 | ||||||
| STRAIGHT | ER16 | 50 mm |
STATIC 1:1 |
STRAIGHT | EXTERNAL COOLANT | OFFSET |
Updated 202404
Tool holder machine interface: RADIAL (STAR TYPE) turret, MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL-40, MAZAK MP610 (FLUSH), ANY
