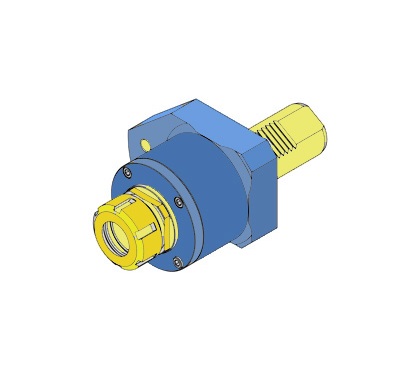

VDI40 MAZAK V TYPE AXIAL DRILLING MILLING HEAD ER32 L=120 mm FOR MAZAK SQT15 MAZAK QTN200
THS004209
Compatible lathes
- MAZAK SUPER QUICK TURN SQT-15MSY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-100M-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-18MSY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-18MY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-15MY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-200MY TURRET VDI40 12 POS TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-100MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK QT-COMPACT 300MS TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-250MSY TURRET DIA.40 TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK MULTIPLEX MP-6300-II TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-200MSY TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-200MS TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK MEGATURN SMART 500MS TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-15MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK MULTIPLEX MP-6200-II TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-18MS TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-200MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-250MS TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-15M TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-18M TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-200M TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-250M TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-200M-12D TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH), ANY
- MAZAK QUICK TURN NEXUS QTN-250M-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, STATIC,
- MAZAK QUICK TURN NEXUS QTN-200II-M TURRET MAZAK DIA.40 TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250II-M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-200II-MS TURRET MAZAK DIA.40 TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250II-MS TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-15MS TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250MSY TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK QUICK TURN NEXUS QTN-250MS TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250M TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-100-12D DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-200-12D DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-200M TURRET RADIAL 12 TOOL VDI40. TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN QT-200-8D TURRET MAZAK VDI40 PIN70 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, ANY
- MAZAK QUICK TURN NEXUS QTN-250MSYII TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK QUICK TURN NEXUS QTN-200MS TURRET RADIAL 12 TOOL VDI40 TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN QT-250MSY TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
$ USD
178500
178500

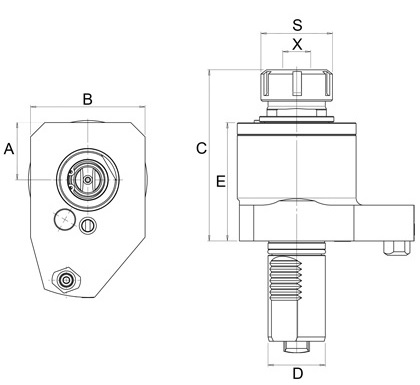

| SKU | D | X Capacity |
S | RPM | A | B | C | E | MAZAK LATHE | MAZAK LATHE |
| THS004209 | 40 | 2~20 ER32 | 50 | 6000 | 40 | 80 | 119.5 | 82.5 | MAZAK QTN 200M MAZAK QTN 250M MAZAK SQT 15 MAZAK SQT 18M |
MAZAK SQT 15M-12D MAZAK SQT 18M-12D MAZAK SQT 200M-12D MAZAK SQT 250M-12D |
| THS004345 | 133.5 | 98.5 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004209 VDI40 MAZAK V TYPE AXIAL DRILLING MILLING HEAD ER32 L=120 mm FOR MAZAK SQT15 MAZAK QTN200 | ||||||
| STRAIGHT | ER32 | 120 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004345 VDI40 MAZAK V TYPE AXIAL DRILLING MILLING HEAD ER32 L=134 mm FOR MAZAK SQT15 MAZAK QTN200 | ||||||
| STRAIGHT | ER32 | 134 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202506.15
Tool holder machine interface: ANY turret, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250-40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, ANY
