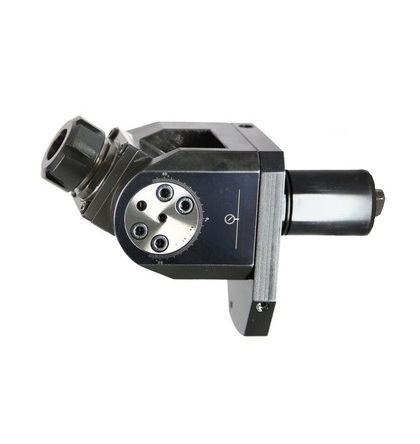

VDI40 MAZAK UNIVERSAL DRILLING MILLING HEAD ER25 L=176 mm MAZAK SQT15 18 QTN200 250
THS003980
Compatible lathes
- MAZAK SUPER QUICK TURN SQT-15MSY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-100M-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-18MSY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-18MY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-15MY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-200MY TURRET VDI40 12 POS TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-100MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK QT-COMPACT 300MS TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-250MSY TURRET DIA.40 TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK MULTIPLEX MP-6300-II TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-200MSY TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-200MS TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK MEGATURN SMART 500MS TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK MULTIPLEX MP-6200-II TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-18MS TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-250MS TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-250M TURRET RADIAL 16 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-15M TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-18M TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-200M TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-250M TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250M-16D TURRET RADIAL DIA.40 TURRET
- MAZAK QUICK TURN NEXUS QTN-200II-M TURRET MAZAK DIA.40 TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250II-M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-200II-MS TURRET MAZAK DIA.40 TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250II-MS TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-200M-16D TURRET RADIAL DIA.40 TURRET
- MAZAK SUPER QUICK TURN SQT-15MS TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250MSY TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK QUICK TURN NEXUS QTN-250MS TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250M TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-100-12D DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-200-12D DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-200M TURRET RADIAL 12 TOOL VDI40. TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN QT-200-8D TURRET MAZAK VDI40 PIN70 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, ANY
- MAZAK QUICK TURN NEXUS QTN-250MSYII TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK QUICK TURN NEXUS QTN-200MS TURRET RADIAL 12 TOOL VDI40 TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN QT-250MSY TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
$ USD
682500
682500

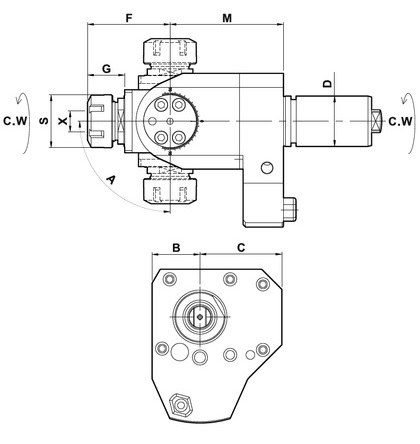

| SKU | D | X Capacity |
S | RPM | A | B | C | F | G | M | MAZAK LATHE | MAZAK LATHE |
| THS003980 | 40 | 1~16 ER25 | 42 | 4000 | ±90° | 38 | 65 | 66 | 30 | 90 | MAZAK QTN 200M MAZAK QTN 250M MAZAK SQT 15M MAZAK SQT 18M |
MAZAK SQT 15M-12D MAZAK SQT 18M-12D MAZAK SQT 200M-12D MAZAK SQT 250M-12D |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS003980 VDI40 MAZAK UNIVERSAL DRILLING MILLING HEAD ER25 L=176 mm MAZAK SQT15 18 QTN200 250 | ||||||
| UNIVERSAL | ER25 | 176 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202505.11
Tool holder machine interface: ANY turret, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250-40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, ANY
