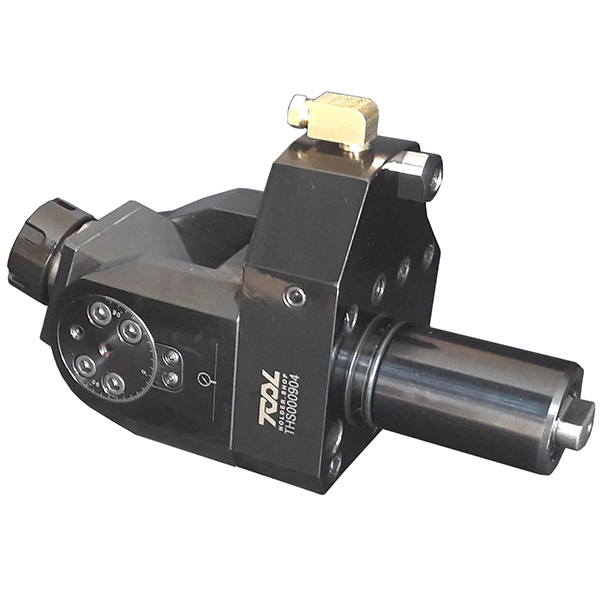

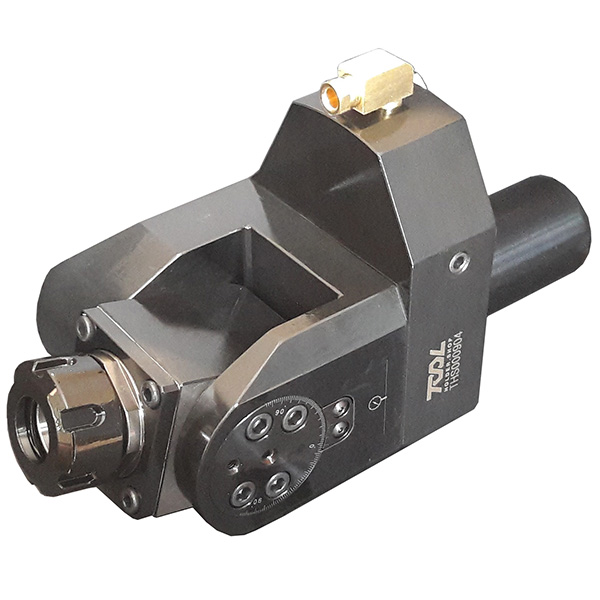

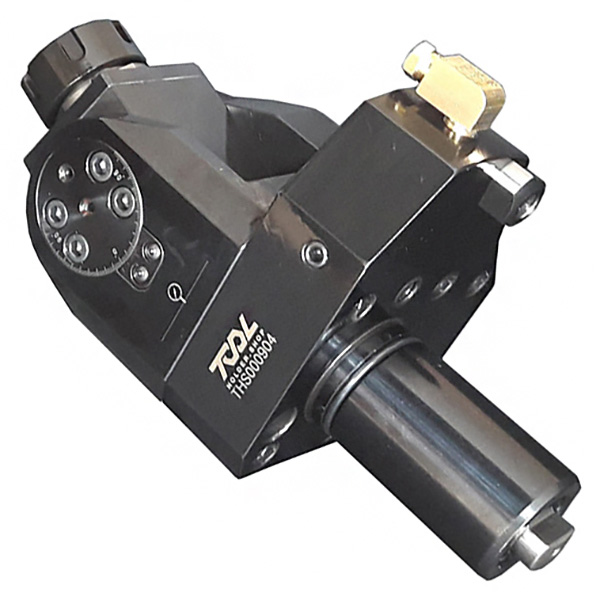

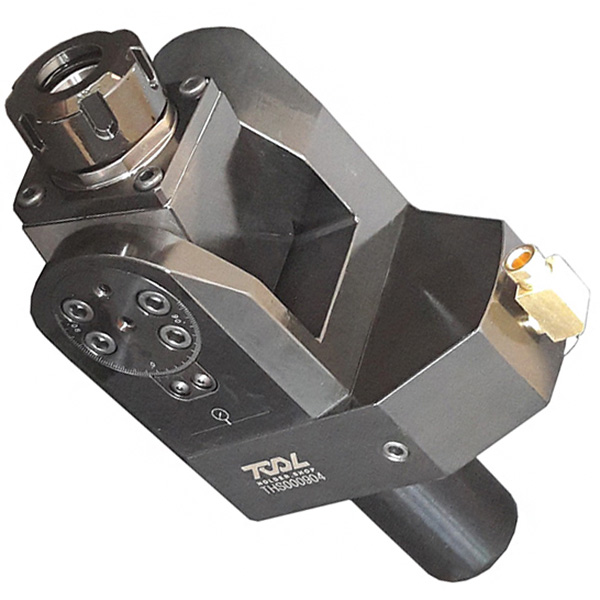

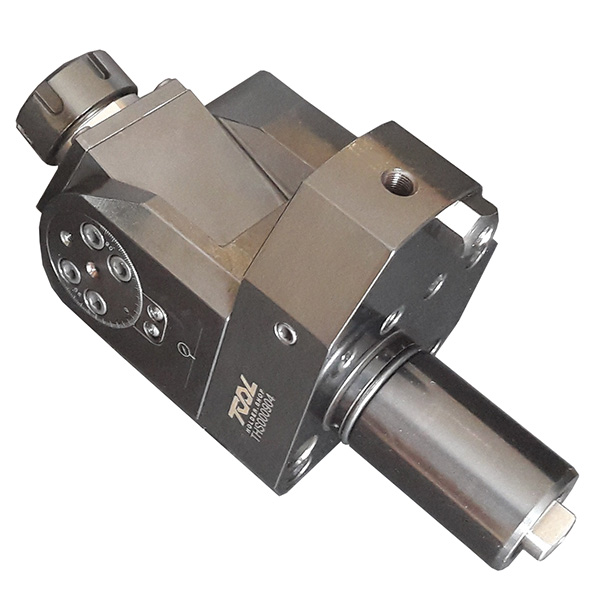

MAZAK UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER25 L=216 mm MAZAK MP420 MP6200 12 POS
THS000904
Compatible lathes
- MAZAK MULTIPLEX MP-6200Y-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-425 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-620-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 50, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-415N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-420N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-620N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-620N-12D TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC,
- MAZAK MULTIPLEX MP-620N TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC,
- MAZAK MULTIPLEX MP-625N-12D TURRET DIA.40 TURRET ANY, MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK HYPER QUADREX 200MSY TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), Y-AXIS
- MAZAK MULTIPLEX MP-6200-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-W200 TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-620 TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-6200 TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-6250 TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-W200Y TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), Y-AXIS
684300

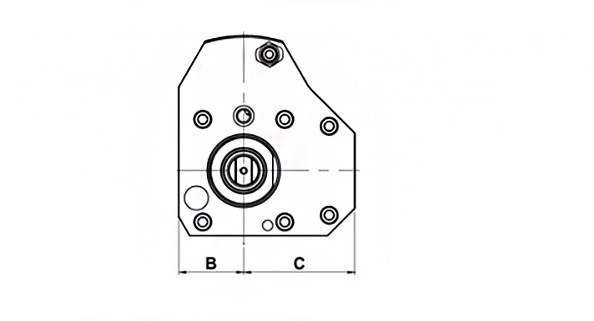

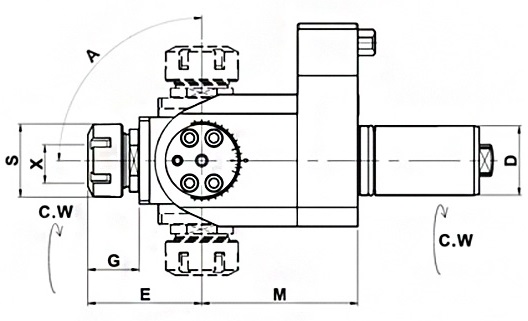

| SKU | D | X Capacity |
S | RPM | A | B | C | E | G | M | MAZAK LATHE | MAZAK LATHE |
| THS000904 | 40 | 1~16 ER25 | 42 | 4000 | ±90° | 38 | 65 | 65.5 | 29.5 | 90 | MAZAK MP 620 | MAZAK MP 420N-12D MAZAK MP 620N-12D MAZAK MP 620-12D MAZAK MP 6200-12D |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS000904 MAZAK UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER25 L=216 mm MAZAK MP420 MP6200 12 POS | ||||||
| UNIVERSAL | ER25 | 216 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: ANY turret, MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET-40, MAZAK MP620 (REGULAR), ANY
COMPATIBLE LATHES
MAZAK MULTIPLEX MP-6200Y-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ; MAZAK MULTIPLEX MP-425 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ; MAZAK MULTIPLEX MP-620-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 50, MAZAK MP620 (REGULAR), ; MAZAK MULTIPLEX MP-415N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH), ; MAZAK MULTIPLEX MP-420N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ; MAZAK MULTIPLEX MP-620N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ; MAZAK MULTIPLEX MP-620N-12D TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ; MAZAK MULTIPLEX MP-620N TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ; MAZAK MULTIPLEX MP-625N-12D TURRET DIA.40 TURRET ANY, MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ; MAZAK HYPER QUADREX 200MSY TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), Y-AXIS; MAZAK MULTIPLEX MP-6200-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ; MAZAK MULTIPLEX MP-W200 TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ; MAZAK MULTIPLEX MP-620 TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ; MAZAK MULTIPLEX MP-6200 TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ; MAZAK MULTIPLEX MP-6250 TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ; MAZAK MULTIPLEX MP-W200Y TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), Y-AXIS;
