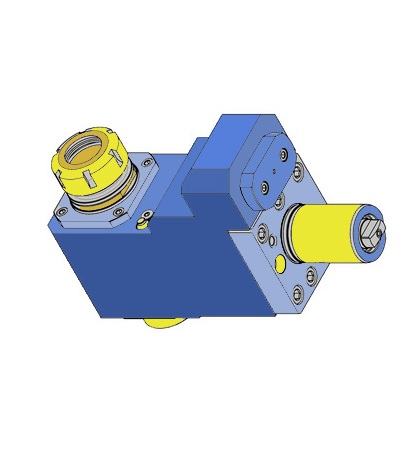

VDI50 MAZAK RADIAL DRILLING MILLING HEAD ER40 L=101 mm CTS FOR MAZAK MP630 MAZAK MP650
THS000910
Compatible lathes
- MAZAK MULTIPLEX MP-6300 TURRET RADIAL 12 TOOLS VDI50 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR),
- MAZAK MULTIPLEX MP-630 TURRET RADIAL 12 TOOLS VDI50 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR), ANY
- MAZAK MULTIPLEX MP-430 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR), ANY
- MAZAK MULTIPLEX MP-6300Y RADIAL TURRET 12 TOOLS VDI50 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR),
- MAZAK MULTIPLEX MP-650 TURRET RADIAL 10 TOOLS VDI50 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR),
- MAZAK MP-4300 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR), ANY
- MAZAK MULTIPLEX MP-W300Y TURRET RADIAL 12 TOOLS VDI50 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR),
- MAZAK MULTIPLEX MP-W300 TURRET RADIAL 12 TOOLS VDI50 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR),
545400

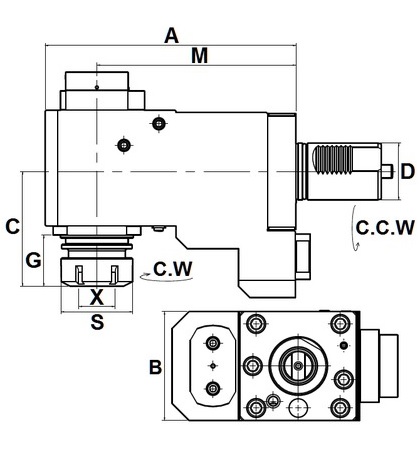

| SKU | D | X Capacity |
S | RPM | A | B | C | G | M | Coolant Supply | MAZAK LATHE | MAZAK LATHE |
| THS000910 | 50 | 3~26 ER40 | 63 | 5000 | 221 | 96 | 101 | 45 | 175 | internal | MAZAK MP 630 | MAZAK MP 6300Y-12D MAZAK MP 6300-12D MAZAK MP 630-12D MAZAK MP 650-10D |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS000910 VDI50 MAZAK RADIAL DRILLING MILLING HEAD ER40 L=101 mm CTS FOR MAZAK MP630 MAZAK MP650 | ||||||
| ANGLE 90 DEGREE | ER40 | 101 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS016813 VDI50 MAZAK RADIAL DRILLING MILLING HEAD ER40 L=175 mm FOR MAZAK MP630 MAZAK MP650 | ||||||
| ANGLE 90 DEGREE | ER40 | 175 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: RADIAL (STAR TYPE) turret, MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET-50, MAZAK MP630 (REGULAR), ANY
COMPATIBLE LATHES
MAZAK MULTIPLEX MP-6300 TURRET RADIAL 12 TOOLS VDI50 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR), ; MAZAK MULTIPLEX MP-630 TURRET RADIAL 12 TOOLS VDI50 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR), ANY; MAZAK MULTIPLEX MP-430 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR), ANY; MAZAK MULTIPLEX MP-6300Y RADIAL TURRET 12 TOOLS VDI50 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR), ; MAZAK MULTIPLEX MP-650 TURRET RADIAL 10 TOOLS VDI50 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR), ; MAZAK MP-4300 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR), ANY; MAZAK MULTIPLEX MP-W300Y TURRET RADIAL 12 TOOLS VDI50 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR), ; MAZAK MULTIPLEX MP-W300 TURRET RADIAL 12 TOOLS VDI50 TURRET RADIAL (STAR TYPE), MAZAK VDI50 30DEG PIN72x75 MP630 6300 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET 50, MAZAK MP630 (REGULAR), ;
