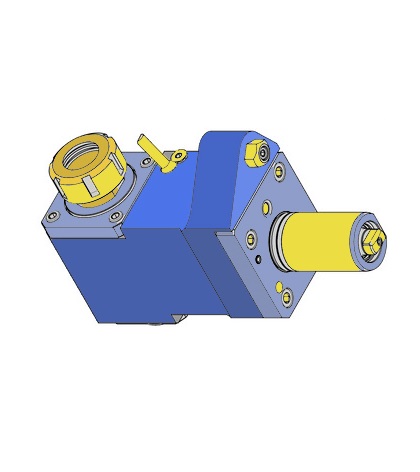

VDI40 MAZAK H TYPE RADIAL DRILLING MILLING HEAD ER32 L=103mm SPEEDER 1:2 MP420 MAZAK MP620
THS000908
Compatible lathes
- MAZAK MULTIPLEX MP-6200Y-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-4200 TURRET
- MAZAK MULTIPLEX MP-425 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-620-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 50, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-420N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-620N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-620N-12D TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC,
- MAZAK MULTIPLEX MP-620N TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC,
- MAZAK MULTIPLEX MP-625N-12D TURRET DIA.40 TURRET ANY, MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK HYPER QUADREX 200MSY TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), Y-AXIS
- MAZAK MULTIPLEX MP-6200-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-W200 TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-620 TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-6200 TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-6250 TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR),
- MAZAK MULTIPLEX MP-W200Y TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), Y-AXIS
$ USD
364900
364900

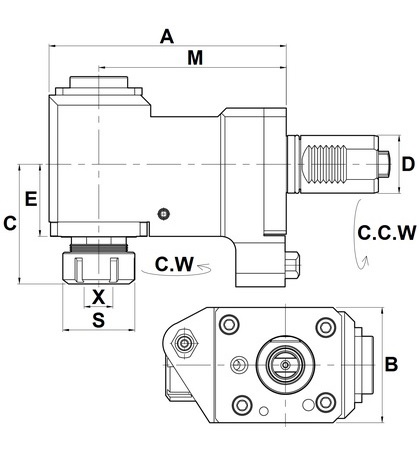

| SKU | D | X Capacity |
S | Gear Ratio |
RPM | A | B | C | E | M | MAZAK LATHE | MAZAK LATHE |
| THS000906 | 40 | 1~16 ER25 | 42 | 1 : 1 | 5000 | 165 | 80 | 80.5 | 50 | 130 | MAZAK MP620 | MAZAK MP 420N-12D MAZAK MP 620N-12D MAZAK MP 620-12D MAZAK MP 6200-12D |
| THS000907 | 2~20 ER32 | 50 | 1 : 1 | 5000 | 165 | 80 | 82.5 | 50 | 130 | |||
| THS000908 | 2~20 ER32 | 50 | 1 : 2 | 8000 | 169 | 88 | 103 | 68 | 130 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS000906 VDI40 MAZAK RADIAL DRILLING MILLING HEAD ER25 L=83 mm FOR MAZAK MP420 MAZAK MP620 | ||||||
| ANGLE 90 DEGREE | ER25 | 83 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS000907 VDI40 MAZAK H TYPE RADIAL DRILLING MILLING HEAD ER32 L=130 mm FOR MP420 MAZAK MP620 | ||||||
| ANGLE 90 DEGREE | ER32 | 83 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS000908 VDI40 MAZAK H TYPE RADIAL DRILLING MILLING HEAD ER32 L=103mm SPEEDER 1:2 MP420 MAZAK MP620 | ||||||
| ANGLE 90 DEGREE | ER32 | 103 mm |
CW-CW SPEEDER |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS019523 VDI40 MAZAK H TYPE RADIAL DRILLING MILLING HEAD ER32 L=130 IC INT NUT CW-CW MAZAK MP6200Y | ||||||
|
|
||||||
Updated 202507.03
Tool holder machine interface: ANY turret, MAZAK VDI40 0 DEG PIN20x70 OFFSET MP420N 620N 625N 620 12 TOOLS 6200 12 TOOLS TURRET-40, MAZAK MP620 (REGULAR), ANY
