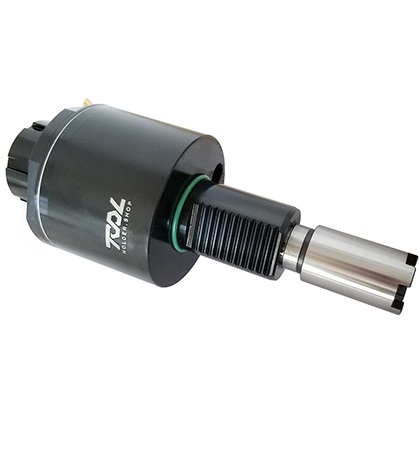

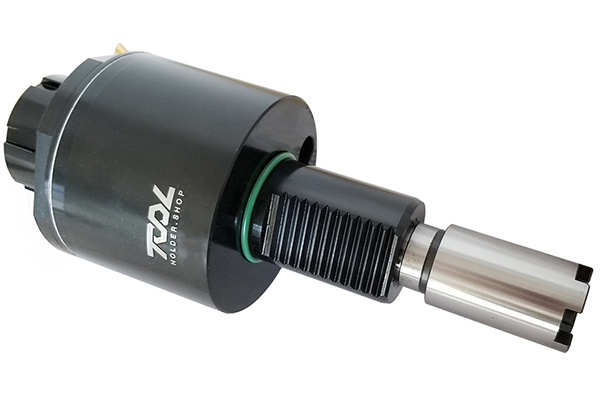

VDI40 HAAS AXIAL DRILLING MILLING HEAD ER32 L=109 mm FOR HAAS SL40
THS003888
Compatible lathes
- HAAS SL-30 VDI-TURRET AXIAL HAAS VDI40 1-STEP-SHORT TURRET AXIAL, VDI 40, HAAS 104.85,
- HAAS SL-40 VDI-TURRET AXIAL HAAS VDI40 1-STEP-MEDIUM TURRET AXIAL, VDI 40, HAAS 117.55,
- HAAS ST-20SSY HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS TL-15 VDI-TURRET AXIAL HAAS VDI40 TURRET AXIAL, VDI 40, HAAS-GEAR,
- HAAS ST-35Y HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-10 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS TL-25 VDI-TURRET AXIAL HAAS VDI40 TURRET AXIAL, VDI 40, HAAS-GEAR,
- HAAS ST-35Y VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-35 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-35 VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-20Y HYBRID VDI/BOT HAAS TURRET TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-25 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-30 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-30Y HYBRID-TURRET AXIAL HAAS VDI40 TURRET AXIAL, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-10Y HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS TCE-860 TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-10 VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-30Y VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-25Y HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-10Y VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-20Y VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-20 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-25Y VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-25 VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS DS-30 Hybrid Turret 6 BOT/6 VDI TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS DS-30SS Hybrid Turret 12 BOT/12 VDI TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS DS-30Y Hybrid Turret 6 BOT/6 VDI TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS DS-30SSY Hybrid Turret 12 BOT/12 VDI TURRET AXIAL, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-40 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-20SS HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-30SS HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-40L HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-30SSY HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-45L HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-45 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
$ USD
189700
In stock 1
189700
In stock 1

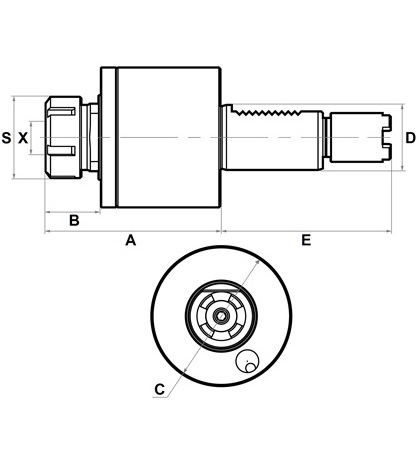

| SKU | D | X Capacity |
S | RPM | A | B | C | E | HAAS LATHE |
| THS004115 | 40 | 2~20 ER32 | 50 | 6000 | 109 | 34 | 86 | 104.85 | HAAS SL-20 / HAAS TL-15 HAAS SL-30 / HAAS TL-25 HAAS SL-40 |
| THS004918 | 104.85 | ||||||||
| THS003888 | 117.55 | ||||||||
| THS003890 | 117.55 | ||||||||
| THS006796 | 130.25 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS003888 VDI40 HAAS AXIAL DRILLING MILLING HEAD ER32 L=109 mm FOR HAAS SL40 | ||||||
| STRAIGHT | ER32 | 109 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003890 VDI40 HAAS AXIAL DRILLING MILLING HEAD ER32 L=109 mm FOR HAAS SL40 INTERNAL COOLANT | ||||||
| STRAIGHT | ER32 | 109 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS004115 VDI40 HAAS AXIAL DRILLING MILLING HEAD ER32 L=109 mm HAAS SL15 HAAS TL15 | ||||||
| STRAIGHT | ER32 | 109 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004918 VDI40 HAAS AXIAL DRILLING MILLING HEAD ER32 L=109 mm CTS HAAS SL15 HAAS TL15 | ||||||
| STRAIGHT | ER32 | 109 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS006796 VDI40 HAAS AXIAL DRILLING MILLING HEAD ER32 L=109 mm FOR HAAS SL40 | ||||||
| STRAIGHT | ER32 | 109 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202506.15
Tool holder machine interface: ANY turret, VDI-40, HAAS-GEAR, ANY
