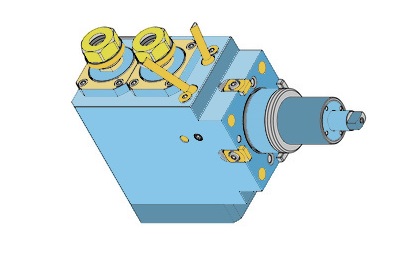

BMT75 DIN1809 RADIAL DRILLING MILLING HEAD DOUBLE ER20x2 L=106 mm
THS005202
Compatible lathes
- DAEWOO PUMA PA-350M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DAEWOO PUMA-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DAEWOO PUMA PA-350LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HYUNDAI L-400MA TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HWACHEON HI-TECH-550 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN INFRACORE PUMA-400 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN INFRACORE PUMA-400LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN INFRACORE PUMA-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN INFRACORE PUMA-400XLM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN INFRACORE PUMA-480LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN INFRACORE PUMA-480M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN INFRACORE PUMA-480XLM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN INFRACORE VT-750M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN INFRACORE VT-750-2SP TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN INFRACORE VT-750TM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HYUNDAI SKT-V80M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HYUNDAI L-400LMA TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HYUNDAI SKT-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HYUNDAI LV-500LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HYUNDAI LV-500RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- LEADWELL LTC-45D BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- NAKAMURA SC-450M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- ROMI G-550M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- SAMSUNG SL-45MC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- SAMSUNG SL-V80M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- LEADWELL LTC-50M TURRET RADIAL EWS BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- LEADWELL LTC-60M TURRET EWS RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- LEADWELL LTC-60CXXLY BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- LEADWELL LTC-60CXLM TURRET EWS BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- LEADWELL LTC-35M TURRET EWS RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- LEADWELL LTC-45M BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- YOU JI YH-36+C-75 BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- NAKAMURA STS-40 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HWACHEON HI-TECH-550B TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC,
- HWACHEON HI-TECH-550MC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HWACHEON VT-650M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HWACHEON VT-650RMC TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY
- JOHNFORD SL-80L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-40A TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD SL-100L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD SL-70L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD SL-120L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-70C TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-40B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-60A TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-70A TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-60C TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-60B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-40C TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-70B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-240B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-100B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-160B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-80B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-130B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- JOHNFORD ST-200B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- SAMSUNG PL-45MC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- TONGTAI THL-620M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- TONGTAI THL-620LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- TONGTAI THL-620LMX TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- KIA SUPER KIA TURN SKT-V5LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- KIA SUPER KIA TURN SKT-V80M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- KIA SUPER KIA TURN SKT-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DAEWOO PUMA-480LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- LEADWELL LTC-35MY TURRET EWS RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- LEADWELL LTC-50MY TURRET RADIAL DUPLOMATIC BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- LEADWELL LTC-60MY TURRET DUPLOMATIC RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- DAEWOO PUMA-480XLM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DAEWOO PUMA-480M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DAEWOO PUMA VT-750TM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- WIA L-400MA TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HYUNDAI SKT-V80RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HYUNDAI SKT-V80LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- WIA LV-500RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- WIA LV-500LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- WIA LV-800RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- WIA LV-800LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN INFRACORE PUMA-5100LY TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- DUPLOMATIC DM-TR25 TURRET BMT75 DIN1809 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- ALEX-TECH VT-40 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DAEWOO PUMA-400LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DAEWOO PUMA V-550 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DMC DL-45M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DMC DL-55M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HYUNDAI LV-800RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HYUNDAI LV-800LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- WIA L-400LMA TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- NAKAMURA TW-30MMY 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- NAKAMURA TW-30M 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- NAKAMURA TW-30MM 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- NAKAMURA TMC-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- NAKAMURA STW-400 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- NAKAMURA TW-30MY 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- NAKAMURA TW-30MMYY 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- MTRENT MTCUT T-36FLMC TURRET RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- MTRENT MTCUT T-36FMC TURRET RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN PUMA-400C TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY
- HYUNDAI LV-450RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- HYUNDAI LV-450LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- SAMSUNG SL-45BB TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- SAMSUNG SL-45LY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- DOOSAN PUMA-400MB TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC,
- LEADWELL LTC-35Y TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- LEADWELL LTC-35LY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- LEADWELL LTC-35XLY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- LEADWELL LTC-35XXLY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- LEADWELL LTC-35LVY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- SAMSUNG SL-45MC-2200BB Mill-Turn TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY
- SAMSUNG SL-4500CLM TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC, ANY
- ALEX-TECH VT-36 BLMC 3000 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC, ANY
- HYUNDAI L-400LMC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY
- SMART NL-5000Y TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- SMART NL-5000LY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS
- DOOSAN PUMA-5100MB TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, DIN1809, ANY
- HWACHEON VT-650MC TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY
- HWACHEON VT-650MG TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY
$ USD
481600
481600

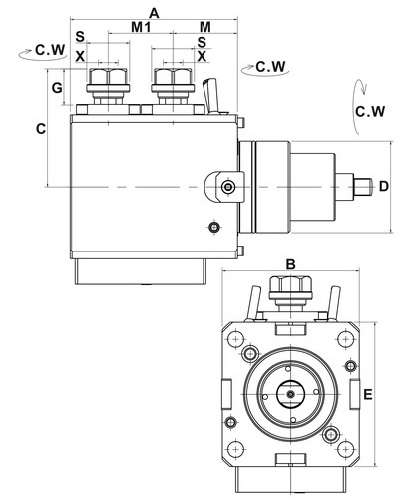

| SKU | D | X Capacity |
S | RPM | A | B | C | E | G | M | M1 | Bolt Pattern |
| THS013270 | 55 | 1~13 ER20 | 35 | 4000 | 151 | 85 | 98 | 118 | 30 | 70 | 53 | BMT55 |
| THS005202 | 75 | 1~13 ER20 | 35 | 4000 | 137 | 112 | 98 | 118 | 30 | 53 | 53 | BMT75 |
...
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS005202 BMT75 DIN1809 RADIAL DRILLING MILLING HEAD DOUBLE ER20x2 L=106 mm | ||||||
| ANGLE 90 DEGREE | ER20 | 106 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS013270 BMT55 DIN1809 RADIAL DRILLING MILLING HEAD DOUBLE ER20x2 L=123 mm | ||||||
| ANGLE 90 DEGREE | ER20 | 123 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202507.03
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-75, DIN1809, ANY
