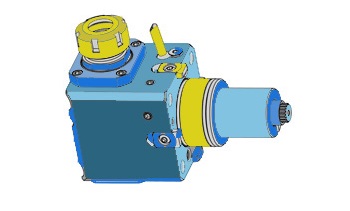

BMT55 DIN5480 RADIAL DRILLING MILLING HEAD ER25 L= 60 mm FOR DUPLOMATIC TURRET
THS019217

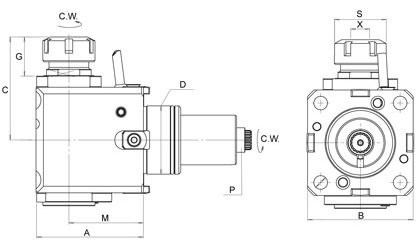

| SKU | D | X Capacity |
S | RPM | A | B | C | G | M | P DIN 5480 |
| THS004692 | 45 | 1~13 ER20 | 35 | 5000 | 95 | 75 | 77.5 | 29 | 65 | W14x0.8 |
| THS006387 | 55 | 1~16 ER25 | 42 | 5000 | 86.5 | 85 | 82 | 32 | 60 | W16x0.8 |
| THS006583 | 65 | 2~20 ER32 | 50 | 5000 | 136 | 94 | 96.5 | 34.5 | 100 | W20x0.8 |
| THS014000 | 65 | 2~20 ER32 | 50 | 5000 | 136 | 94 | 96.5 | 34.5 | 110 | W20x0.8 |
Updated 12.09.2021
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004692 BMT45 DIN5480 RADIAL DRILLING MILLING HEAD ER20 L= 63 mm CW-CW FOR DAEWOO | ||||||
| ANGLE 90 DEGREE | ER20 | 63 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS006387 BMT55 DIN5480 RADIAL DRILLING MILLING HEAD ER25 L= 60 mm | ||||||
| ANGLE 90 DEGREE | ER25 | 60 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS006583 BMT65 BOLT PATTERN 70x73 DIN5480 RADIAL DRILLING MILLING HEAD ER32 L=100 FOR SAUTER TURRET | ||||||
| ANGLE 90 DEGREE | ER32 | 100 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS014000 BMT65 BOLT PATTERN 70x73 DIN5480 RADIAL DRILLING MILLING HEAD ER32 L=115 mm SAUTER TURRET | ||||||
| ANGLE 90 DEGREE | ER32 | 115 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS017213 BMT65 BOLT PATTERN 70x73 DIN5480 RADIAL DRILLING MILLING HEAD ER32 L= 72 mm SAUTER CW-CW | ||||||
| ANGLE 90 DEGREE | ER32 | 72 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS019217 BMT55 DIN5480 RADIAL DRILLING MILLING HEAD ER25 L= 60 mm FOR DUPLOMATIC TURRET | ||||||
|
|
||||||
Updated 202505.11
