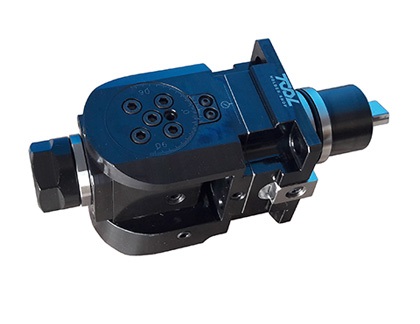

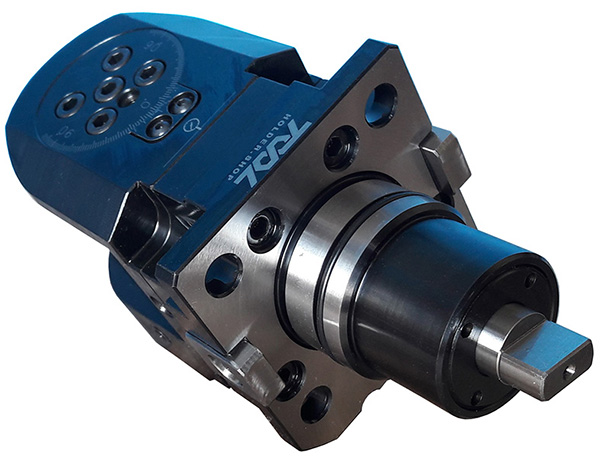

BMT40 BOLT PATTERN 50x50 UNIVERSAL DRILLING MILLING HEAD ER20 L=129 BIGLIA B436Y2 B438Y2
THS013660
Compatible lathes
- BIGLIA B-436Y2 TURRET RADIAL BMT40 DIN1809 TURRET
- EUROTECH RAPIDO B-436Y2 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 50x50 BIGLIA B436 UPPER TURRET, DIN1809, Y-AXIS
- EUROTECH RAPIDO B-436S TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 50x50 BIGLIA B436 UPPER TURRET, DIN1809, Y-AXIS
- BIGLIA B-438Y2 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 50x50 BIGLIA B436 UPPER TURRET, DIN1809, Y-AXIS
$ USD
685800
685800

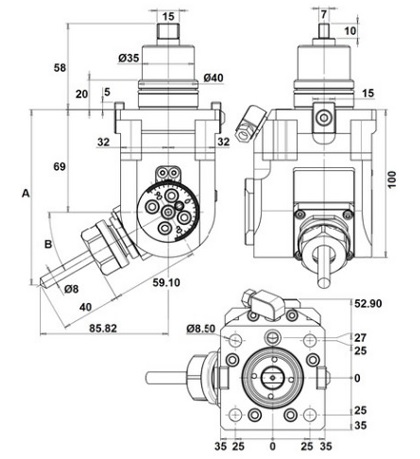

| A Length |
B Angle |
| 94.65 mm | 15° |
| 118.55 mm | 30° |
| 124.60 mm | 45° |
| 139.10 mm | 60° |
| 164.80 mm | 75° |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS013660 BMT40 BOLT PATTERN 50x50 UNIVERSAL DRILLING MILLING HEAD ER20 L=129 BIGLIA B436Y2 B438Y2 | ||||||
| UNIVERSAL | ER20 | 129 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 50x50 BIGLIA B436 UPPER TURRET, DIN1809, ANY
COMPATIBLE LATHES
BIGLIA B-436Y2 TURRET RADIAL BMT40 DIN1809 TURRET ; EUROTECH RAPIDO B-436Y2 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 50x50 BIGLIA B436 UPPER TURRET, DIN1809, Y-AXIS; EUROTECH RAPIDO B-436S TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 50x50 BIGLIA B436 UPPER TURRET, DIN1809, Y-AXIS; BIGLIA B-438Y2 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 50x50 BIGLIA B436 UPPER TURRET, DIN1809, Y-AXIS;
