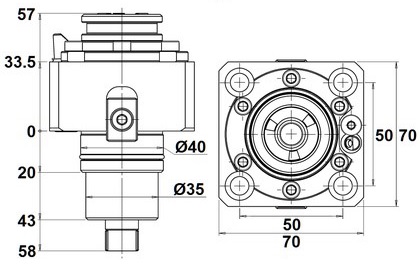

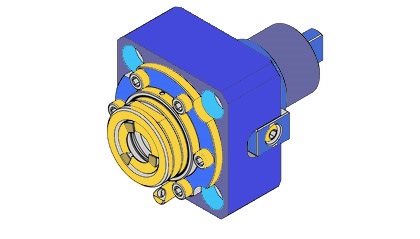

BMT40 BOLT PATTERN 50x50 AXIAL DRILLING MILLING HEAD ER20A L= 57 mm FOR BIGLIA B436Y2
THS006757
Compatible lathes
- BIGLIA B-436Y2 TURRET RADIAL BMT40 DIN1809 TURRET
- EUROTECH RAPIDO B-436Y2 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 50x50 BIGLIA B436 UPPER TURRET, DIN1809, Y-AXIS
- EUROTECH RAPIDO B-436S TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 50x50 BIGLIA B436 UPPER TURRET, DIN1809, Y-AXIS
- EUROTECH RAPIDO B-436-Y2 TURRET
- BIGLIA B-438Y2 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 50x50 BIGLIA B436 UPPER TURRET, DIN1809, Y-AXIS
$ USD
160000
160000
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS006757 BMT40 BOLT PATTERN 50x50 AXIAL DRILLING MILLING HEAD ER20A L= 57 mm FOR BIGLIA B436Y2 | ||||||
| STRAIGHT | ER20 | 57 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202411
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 50x50 BIGLIA B436 UPPER TURRET, DIN1809, ANY
