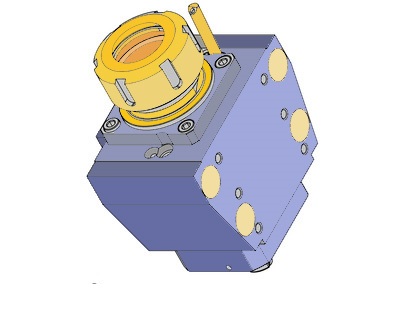

BMT BOLT PATTERN 52x100x124 AXIAL DRILLING MILLING HEAD ER50 L=168 mm MORI SL400 UT400
THS007428
$ USD
391100
391100

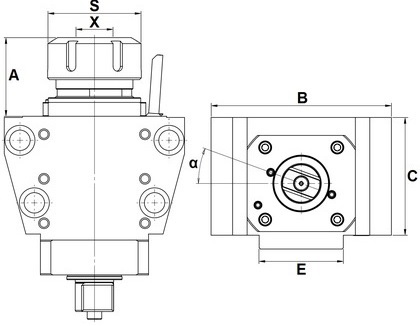

| SKU | X Capacity |
S | RPM | A | B | C | E | α (Pin Degree) |
MORI SEIKI LATHE |
| THS007428 | 10~34 ER50 | 78 | 6000 | 65.5 | 150 | 98 | 70 | 18.67° | ACCUWAY UT-400 MORI SEIKI UT400 GOODWAY GS-400M GOODWAY GS-600M GOODWAY GS-6000 |
| THS007429 | |||||||||
| THS007430 | 20° | ||||||||
| THS007431 |
THS007429 and THS007431: Coolant-Through Spindle
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS007428 BMT BOLT PATTERN 52x100x124 AXIAL DRILLING MILLING HEAD ER50 L=168 mm MORI SL400 UT400 | ||||||
| STRAIGHT | ER50 | 168 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS007429 BMT BOLT PATTERN 52x100x124 AXIAL DRILLING MILLING HEAD ER50 18.67DEG L=169 IC MORI UT400 | ||||||
| STRAIGHT | ER50 | 169 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS007430 BMT BOLT PATTERN 52x100x124 AXIAL DRILLING MILLING HEAD ER50 L=169 mm FOR GOODWAY GS400M | ||||||
| STRAIGHT | ER50 | 169 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS007431 BMT BOLT PATTERN 52x100x124 AXIAL DRILLING MILLING HEAD IC ER50 L=169 mm GOODWAY GS400M | ||||||
| STRAIGHT | ER50 | 169 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
Updated 202504.01
Tool holder machine interface: RADIAL (STAR TYPE) turret, ACCUWAY UT400M PIN 18.67 DEG-70, DIN1809, ANY
