HARD JAWS SERRATION (1/16")x90 L=105 mm SET OF 3 FOR SMW CHUCK
THS007198

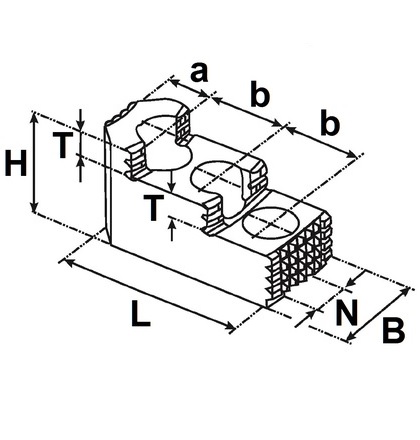

| SKU | B mm |
H mm |
L mm |
N mm |
T mm |
a mm |
b mm |
Serration Pitch |
| THS007196 | 40 | 45 | 82 | 17 | 10.5 | 19 | 23 | 1/16" x 90° |
| THS007197 | 45 | 56 | 100 | 17 | 15.5 | 23 | 30 | 1/16" x 90° |
| THS007198 | 45 | 56 | 105 | 21 | 13.5 | 26 | 30 | 1/16" x 90° |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS007196 HARD JAWS SERRATION (1/16")x90 L= 82 mm SET OF 3 FOR SMW CHUCK | ||||||
|
|
||||||
| THS007197 HARD JAWS SERRATION (1/16")x90 L=100 mm SET OF 3 FOR SMW CHUCK | ||||||
|
|
||||||
| THS007198 HARD JAWS SERRATION (1/16")x90 L=105 mm SET OF 3 FOR SMW CHUCK | ||||||
|
|
||||||
Updated 202309
COMPATIBLE LATHES
