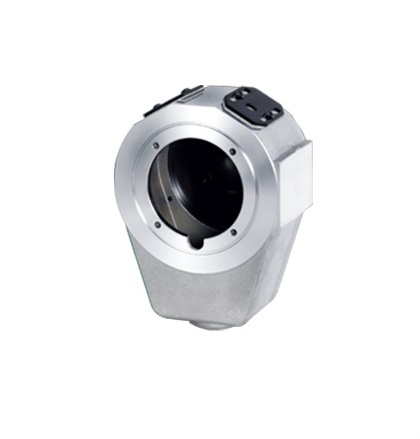

COOLANT COLLECTOR WITH DETECTIVE PLATE STRONG CM28B
THS006848
$ USD
53400
53400

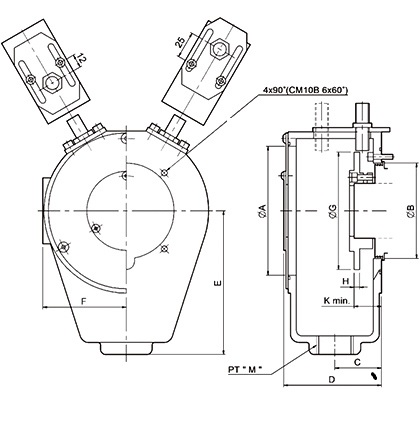

| SKU | A | B | C | D | E | F | G | H | K max. |
M | Weight (kg) |
Matching Cylinder |
| THS006857 | 85 | 67 | 33 | 70 | 105 | 55.5 | 77 | 5 | 21 | PT 3/4" | 0.85 | M-0928 |
| THS006856 | 118 | 75 | 42 | 84 | 131 | 76 | 107 | 5 | 24 | PT 1" | 1.6 | M-1036 |
| THS006855 | 118 | 87 | 42 | 84 | 131 | 76 | 107 | 5 | 25 | PT 1" | 1.6 | M-1236, M-1246 |
| THS006853 | 118 | 98 | 42 | 84 | 131 | 76 | 107 | 5 | 25 | PT 1" | 1.6 | M-1546, M-1552 |
| THS006851 | 158 | 123 | 44 | 88.5 | 151 | 96 | 147 | 5 | 24 | PT 1" | 2.0 | M-1868, M-1875 |
| THS006847 | 158 | 140 | 44 | 88.5 | 151 | 96 | 147 | 5 | 23 | PT 1" | 2.1 | M-2091 |
| THS006849 | 198 | 177 | 45 | 90 | 180 | 118 | 192 | 12 | 35 | PT 1" | 2.4 | M-2511 |
| THS006848 | 254 | 222.6 | 50 | 107 | 260 | 147 | 240 | 8 | 28 | PT 1-1/4" | 4 | ML-2816 |
| THS006327 | 305 | 262.6 | 49 | 100 | 259 | 170 | 285 | 8 | 28 | PT 1-1/4" | 6 | ML-3320 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS006327 COOLANT COLLECTOR WITH DETECTIVE PLATE STRONG CM33B | ||||||
|
|
||||||
| THS006847 COOLANT COLLECTOR WITH DETECTIVE PLATE STRONG CM20B | ||||||
|
|
||||||
| THS006848 COOLANT COLLECTOR WITH DETECTIVE PLATE STRONG CM28B | ||||||
|
|
||||||
| THS006849 COOLANT COLLECTOR WITH DETECTIVE PLATE STRONG CM25B | ||||||
|
|
||||||
| THS006851 COOLANT COLLECTOR WITH DETECTIVE PLATE STRONG CM18B | ||||||
|
|
||||||
| THS006853 COOLANT COLLECTOR WITH DETECTIVE PLATE STRONG CM15B8 | ||||||
|
|
||||||
| THS006855 COOLANT COLLECTOR WITH DETECTIVE PLATE STRONG CM12B | ||||||
|
|
||||||
| THS006856 COOLANT COLLECTOR WITH DETECTIVE PLATE STRONG CM10B | ||||||
|
|
||||||
| THS006857 COOLANT COLLECTOR WITH DETECTIVE PLATE STRONG CM09B | ||||||
|
|
||||||
Updated 202404
COMPATIBLE LATHES
