COLLET CHUCK CR60 ADAPTER 220
THS014209
$ USD
291500
291500
| SKU | Matching Adapter |
Bar Capacity (mm) |
Sleeve Stroke (mm) |
Max.Push Force KN (kgf) |
Max.Gripping Force KN (kgf) |
RPM | Weight (kg) |
| SKP064013 | 140 | 42 | 7 | 25 (2549) | 55 (5608) | 6000 | 6.2 |
| SKP064014 | 170 | 60 | 7 | 30 (3059) | 65 (6628) | 5000 | 11.5 |
| SKP064015 | 220 | 60 | 7 | 30 (3059) | 65 (6628) | 5000 | 15.5 |

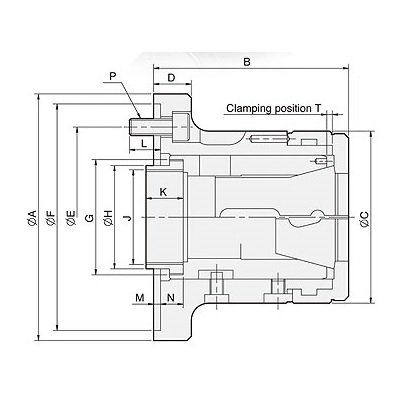

| SKU | A (h6) |
B | C | D | E | F (h6) |
G | H | J max. |
K | L | M | N | P | T |
| SKP064013 | 155 | 114 | 100 | 23 | 104.78 | 140 | M66xP1.5 | 60 | M55xP2.0 | 25 | 18 | 6 | 11.9 | 3-M10 | 3.1 |
| SKP064014 | 185 | 139 | 130 | 30 | 133.35 | 170 | M90xP1.5 | 80 | M74xP2.0 | 30 | 18 | 6 | 17.9 | 6-M12 | 3.1 |
| SKP064015 | 235 | 141 | 130 | 32 | 171.45 | 220 | M90xP1.5 | 80 | M74xP2.0 | 30 | 20 | 6 | 19.9 | 6-M16 | 3.1 |
| Capacities Chuck |
Multibore | Spring Collet |
| SKP064013 | M-673 / 42 / 36 / 30 | 173E / 4728 / 42 / 36 / 30 |
| SKP064014 | M-677 / 60 / 52 / 42 | 185E / 4291 / 60 / 52 / 42 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS014207 COLLET CHUCK CR42 ADAPTER 140 | ||||||
|
|
||||||
| THS014208 COLLET CHUCK CR60 ADAPTER 170 | ||||||
|
|
||||||
| THS014209 COLLET CHUCK CR60 ADAPTER 220 | ||||||
|
|
||||||
Updated 202404
COMPATIBLE LATHES
