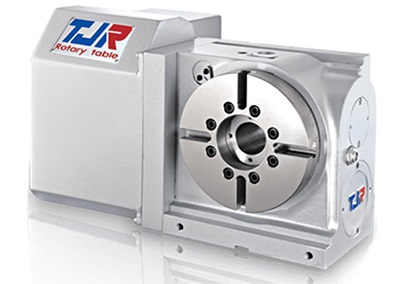

CNC ROTARY TABLE 4TH AXIS 250 mm 0.001 DEG. PNEUMATIC BRAKE WORM GEAR MOTOR LEFT
THS013655
$ USD
2625000
2625000
| Item / Model | Unit | THS013652 AR(s)-125L |
THS013653 AR(s)-170L |
THS013654 AR(s)-210L |
THS013655 AR(s)-250L |
|
| Table Diameter | mm | Ø 125 | Ø 170 | Ø 210 | Ø 250 | |
| Diameter of Table Central Hole | mm | Ø 35H7 | Ø 67 | Ø 67 | Ø 67 | |
| Inner Diameter of Mandrel Sleeve | mm | - | Ø 40H7 | Ø 40H7 | Ø 40H7 | |
| Diameter of Center Through Hole | mm | Ø 25 | Ø 40 | Ø 40 | Ø 40 | |
| Center Height (Vertical) | mm | 110 | 135 | 160 | 160 | |
| Table Height (Horizontal) | mm | 152 | 152 | 152 | 160 | |
| Table T-slot Width | mm | 12H7 | 12H7 | 12H7 | 12H7 | |
| Guide Block Width | mm | 14h7 | 18h7 | 18h7 | 18h7 | |
| Minimal Increment | deg. | 0.001° | 0.001° | 0.001° | 0.001° | |
| Indexing Precision | sec. | 40 | 20 | 20 | 20 | |
| Repeatability | sec. | 6 | 6 | 6 | 6 | |
| Clamping System (Pneumatic) | kg/cm2 | 6 | 6 | 6 | 6 | |
| Clamping Torque | kg-m | 13 | 31 | 31 | 31 | |
| Servo Motor Model | FANUC | Taper shaft | αiS4 / βiS4 | αiF4 / αiF8 / βiS8 | αiF4 / αiF8 / βiS8 | αiF4 / αiF8 / βiS8 |
| MITSUBISHI | Taper shaft | HG/HF-75/105 | HG/HF-54/104 | HG/HF-54/104 | HG/HF-54/104 | |
| Speed Reduction Ratio | - | 1:60 | 1:90 | 1:90 | 1:90 | |
| Max. Rotation Rate of Table (Calculate with Fanuc α Motor) |
R.P.M. | 83.3(33.3) | 44.4(33.3) | 44.4(33.3) | 44.4(33.3) | |
| Allowable Inertia Load Capacity (Horizontal) |
kg.cm.sec2 | 2 | 5.4 | 8.3 | 11.7 | |
| Allowable Workpiece Load | Vertical |
kg | 50 | 75 | 75 | 75 |
| with Tailstock | kg | 100 | 150 | 150 | 150 | |
Horizontal |
kg | 100 | 150 | 150 | 150 | |
| Allowable Load (with Rotary Table Clamping) |
F |
kgf | 1000 | 1450 | 1450 | 1450 |
FxL |
kgf.m | 45 | 100 | 100 | 100 | |
FxL |
kgf.m | 13 | 31 | 31 | 31 | |
| Strength of worm gears |  |
kg.m | 9(3.7) | 18(14.6) | 18(14.6) | 18(14.6) |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS013652 CNC ROTARY TABLE 4TH AXIS 125 mm 0.001 DEG. PNEUMATIC BRAKE WORM GEAR MOTOR LEFT | ||||||
|
|
||||||
| THS013653 CNC ROTARY TABLE 4TH AXIS 170 mm 0.001 DEG. PNEUMATIC BRAKE WORM GEAR MOTOR LEFT | ||||||
|
|
||||||
| THS013654 CNC ROTARY TABLE 4TH AXIS 210 mm 0.001 DEG. PNEUMATIC BRAKE WORM GEAR MOTOR LEFT | ||||||
|
|
||||||
| THS013655 CNC ROTARY TABLE 4TH AXIS 250 mm 0.001 DEG. PNEUMATIC BRAKE WORM GEAR MOTOR LEFT | ||||||
|
|
||||||
