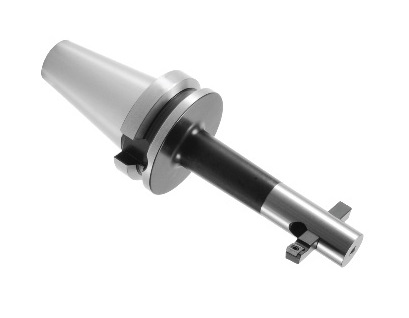

BT50 INSERTED TYPE ROUGH BORING HOLDER ID=130-260 mm L=255
THS014518
$ USD
21700
21700

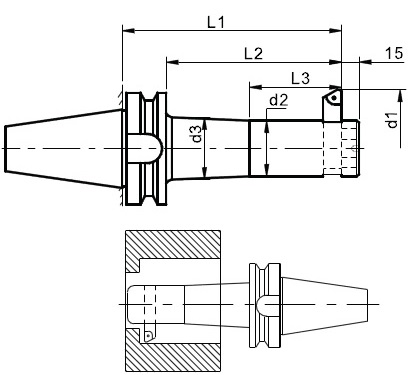

| SKU | L | d2 | d3 | L2 | L3 | W | T | Weight (kg) | |
| Min Machining diameter |
Max Machining diameter |
||||||||
| SKP010746 | 25 | 52 | 20 | 22 | 90 | 35 | 8 | M6 | 1.2 |
| SKP010747 | 38 | 70 | 30 | 33 | 120 | 55 | M8 | 1.7 | |
| SKP010748 | 50 | 90 | 40 | 44 | 135 | 70 | 13 | M10 | 2.5 |
| SKP010749 | 62 | 115 | 50 | 56 | 150 | 80 | 16 | 3.6 | |
| SKP010750 | 90 | 150 | 75 | - | 150 | 115 | 19 | M12 | 5.9 |
| SKP010751 | 25 | 52 | 20 | 22 | 92 | 35 | 8 | M6 | 4.3 |
| SKP010752 | 38 | 70 | 30 | 32 | 137 | 55 | 10 | M8 | 4.9 |
| SKP010753 | 50 | 90 | 40 | 44 | 137 | 70 | 13 | M10 | 5.5 |
| SKP010754 | 50 | 90 | 40 | 44 | 197 | 70 | 5.8 | ||
| SKP010755 | 62 | 115 | 50 | 56 | 152 | 80 | 16 | 6.4 | |
| SKP010756 | 62 | 115 | 50 | 56 | 227 | 80 | 7.8 | ||
| SKP010757 | 72 | 135 | 60 | 66 | 152 | 95 | 19 | 7.3 | |
| SKP010758 | 72 | 135 | 60 | 66 | 242 | 95 | 9.6 | ||
| SKP010759 | 90 | 150 | 75 | 80 | 167 | 115 | M12 | 9.7 | |
| SKP010760 | 90 | 150 | 75 | 80 | 257 | 115 | 12.8 | ||
| SKP010761 | 105 | 190 | 90 | 90 | - | - | 25 | 11.4 | |
| SKP010762 | 105 | 190 | 90 | 94 | - | 135 | 15.7 | ||
| SKP010763 | 130 | 260 | 110 | - | - | 60 | 14.1 | ||
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS014498 BT40 ROUGH BORING BAR HOLDER 90 DEGREES INSERT TYPE RANGE 50-90 mm L=165 mm | ||||||
|
|
||||||
| THS014499 BT40 ROUGH BORING BAR HOLDER 90 DEGREES INSERT TYPE RANGE 62-115 mm L=180 mm | ||||||
|
|
||||||
| THS014500 BT40 ROUGH BORING BAR HOLDER 90 DEGREES INSERT TYPE RANGE 90-150 mm L=180 mm | ||||||
|
|
||||||
| THS014516 BT50 INSERTED TYPE ROUGH BORING HOLDER ID=105-190 mm L=195 | ||||||
|
|
||||||
| THS014517 BT50 INSERTED TYPE ROUGH BORING HOLDER ID=105-190 mm L=285 | ||||||
|
|
||||||
| THS014518 BT50 INSERTED TYPE ROUGH BORING HOLDER ID=130-260 mm L=255 | ||||||
|
|
||||||
| THS014519 BT50 INSERTED TYPE ROUGH BORING HOLDER ID= 25- 52 mm L=135 | ||||||
|
|
||||||
| THS014520 BT50 INSERTED TYPE ROUGH BORING HOLDER ID= 38- 70 mm L=180 | ||||||
|
|
||||||
| THS014521 BT50 INSERTED TYPE ROUGH BORING HOLDER ID= 50- 90 mm L=180 | ||||||
|
|
||||||
| THS014522 BT50 INSERTED TYPE ROUGH BORING HOLDER ID= 50- 90 mm L=240 | ||||||
|
|
||||||
| THS014523 BT50 INSERTED TYPE ROUGH BORING HOLDER ID= 62-115 mm L=195 | ||||||
|
|
||||||
| THS014524 BT50 INSERTED TYPE ROUGH BORING HOLDER ID= 62-115 mm L=270 | ||||||
|
|
||||||
| THS014525 BT50 INSERTED TYPE ROUGH BORING HOLDER ID= 72-135 mm L=195 | ||||||
|
|
||||||
| THS014526 BT50 INSERTED TYPE ROUGH BORING HOLDER ID= 72-135 mm L=285 | ||||||
|
|
||||||
| THS014527 BT50 INSERTED TYPE ROUGH BORING HOLDER ID= 90-150 mm L=210 | ||||||
|
|
||||||
| THS014528 BT50 INSERTED TYPE ROUGH BORING HOLDER ID= 90-150 mm L=300 | ||||||
|
|
||||||
| THS015472 BT40 ROUGH BORING BAR HOLDER 90 DEGREES INCERT TYPE RANGE 25-52 mm L=120 mm | ||||||
|
|
||||||
| THS015473 BT40 ROUGH BORING BAR HOLDER 90 DEGREES INCERT TYPE RANGE 38-70 mm L=150 mm | ||||||
|
|
||||||
Updated 202504.30
Tool holder machine interface: CNC MILLING SPINDLE turret, BT-50, TAPER, ANY
