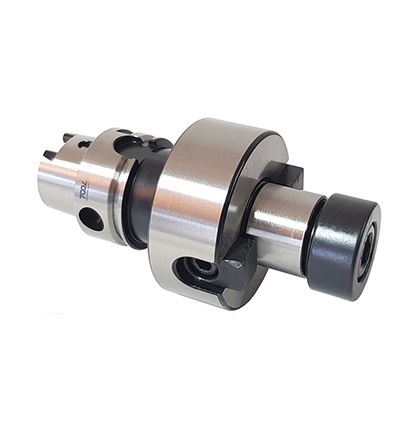

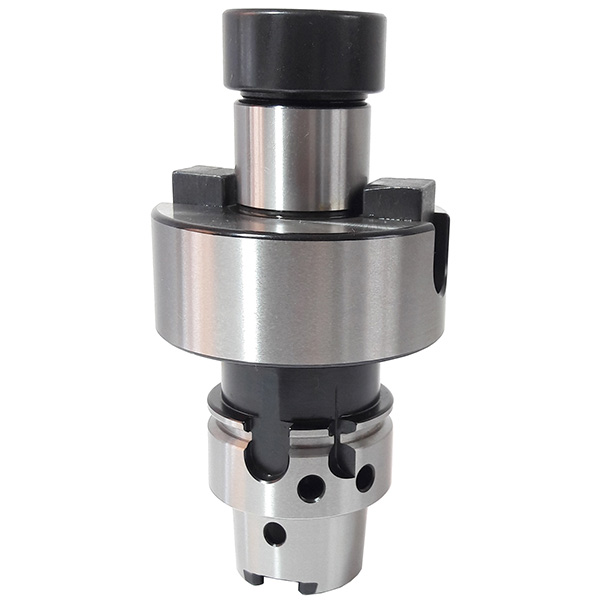

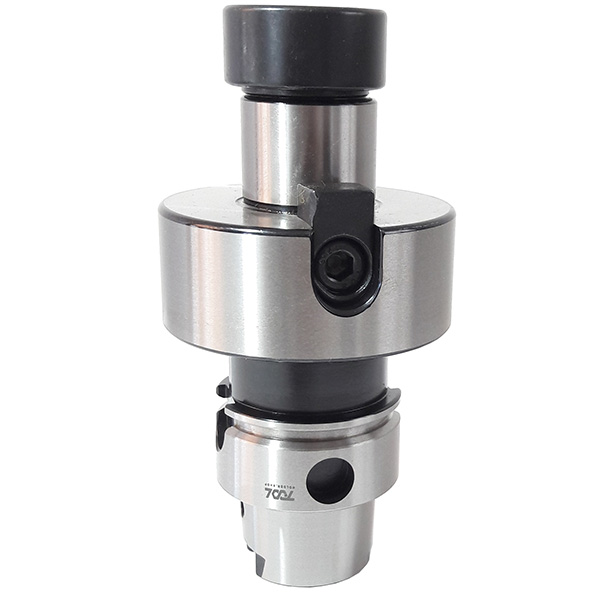

HSK40A FACE MILL ARBOR OD=27 mm L=60 mm
THS007364
$ USD
23700
In stock 2
23700
In stock 2

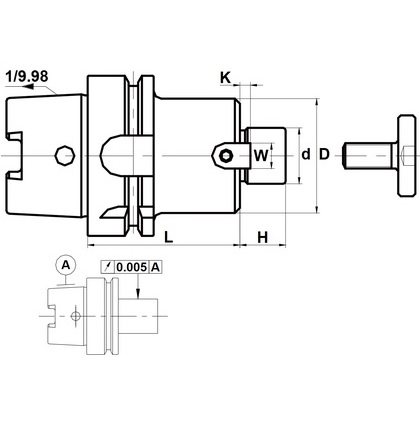

| SKU | L | Ø d | Ø D | H | K | W |
| THS006355 | 50 | 22 | 48 | 18 | 5 | 10 |
| THS006354 | 120 | |||||
| THS006357 | 60 | 27 | 60 | 20 | 6 | 12 |
| THS006356 | 120 | |||||
| THS006359 | 60 | 32 | 72 | 22 | 7 | 14 |
| THS006358 | 120 | |||||
| THS006361 | 60 | 40 | 80 | 25 | 8 | 16 |
| THS006360 | 120 | |||||
| THS006347 | 50 | 22 | 48 | 18 | 5 | 10 |
| THS006346 | 120 | |||||
| THS006349 | 60 | 27 | 60 | 20 | 6 | 12 |
| THS006348 | 120 | |||||
| THS006351 | 60 | 32 | 72 | 22 | 7 | 14 |
| THS006350 | 120 | |||||
| THS006353 | 60 | 40 | 80 | 25 | 8 | 16 |
| THS006352 | 120 | |||||
| THS007364 | 60 | 27 | - | - | - | - |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS002511 HSK63A FACE MILL HOLDER OD=16 mm L= 45 mm | ||||||
| STRAIGHT | 16 mm | 45 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002512 HSK63A FACE MILL HOLDER OD=16 mm L=100 mm | ||||||
| STRAIGHT | 16 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002513 HSK63A FACE MILL HOLDER OD=16 mm L=160 mm | ||||||
| STRAIGHT | 16 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002514 HSK63A FACE MILL HOLDER OD=22 mm L= 50 mm | ||||||
| STRAIGHT | 22 mm | 50 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002515 HSK63A FACE MILL HOLDER OD=22 mm L=100 mm | ||||||
| STRAIGHT | 22 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002516 HSK63A FACE MILL HOLDER OD=22 mm L=160 mm | ||||||
| STRAIGHT | 22 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002517 HSK63A FACE MILL HOLDER OD=27 mm L= 55 mm | ||||||
| STRAIGHT | 27 mm | 55 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002518 HSK63A FACE MILL HOLDER OD=27 mm L=100 mm | ||||||
| STRAIGHT | 27 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002519 HSK63A FACE MILL HOLDER OD=27 mm L=160 mm | ||||||
| STRAIGHT | 27 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002520 HSK63A FACE MILL HOLDER OD=32 mm L= 60 mm | ||||||
| STRAIGHT | 32 mm | 60 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002521 HSK63A FACE MILL HOLDER OD=32 mm L=100 mm | ||||||
| STRAIGHT | 32 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002522 HSK63A FACE MILL HOLDER OD=32 mm L=160 mm | ||||||
| STRAIGHT | 32 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002523 HSK63A FACE MILL HOLDER OD=40 mm L= 65 mm | ||||||
| STRAIGHT | 40 mm | 65 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002524 HSK63A FACE MILL HOLDER OD=40 mm L=100 mm | ||||||
| STRAIGHT | 40 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002525 HSK63A FACE MILL HOLDER OD=40 mm L=160 mm | ||||||
| STRAIGHT | 40 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002526 HSK100A FACE MILL HOLDER OD=16 mm L= 55 mm | ||||||
| STRAIGHT | 16 mm | 55 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002527 HSK100A FACE MILL HOLDER OD=16 mm L=100 mm | ||||||
| STRAIGHT | 16 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002528 HSK100A FACE MILL HOLDER OD=16 mm L=160 mm | ||||||
| STRAIGHT | 16 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002529 HSK100A FACE MILL HOLDER OD=22 mm L= 55 mm | ||||||
| STRAIGHT | 22 mm | 55 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002530 HSK100A FACE MILL HOLDER OD=22 mm L=100 mm | ||||||
| STRAIGHT | 22 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002531 HSK100A FACE MILL HOLDER OD=22 mm L=160 mm | ||||||
| STRAIGHT | 22 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002532 HSK100A FACE MILL HOLDER OD=27 mm L= 55 mm | ||||||
| STRAIGHT | 27 mm | 55 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002533 HSK100A FACE MILL HOLDER OD=27 mm L=100 mm | ||||||
| STRAIGHT | 27 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002534 HSK100A FACE MILL HOLDER OD=27 mm L=160 mm | ||||||
| STRAIGHT | 27 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002535 HSK100A FACE MILL HOLDER OD=32 mm L= 60 mm | ||||||
| STRAIGHT | 32 mm | 60 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002536 HSK100A FACE MILL HOLDER OD=32 mm L=100 mm | ||||||
| STRAIGHT | 32 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002537 HSK100A FACE MILL HOLDER OD=32 mm L=160 mm | ||||||
| STRAIGHT | 32 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002538 HSK100A FACE MILL HOLDER OD=40 mm L= 65 mm | ||||||
| STRAIGHT | 40 mm | 65 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002541 HSK100A FACE MILL HOLDER OD=40 mm L=100 mm | ||||||
| STRAIGHT | 40 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002542 HSK100A FACE MILL HOLDER OD=40 mm L=160 mm | ||||||
| STRAIGHT | 40 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
