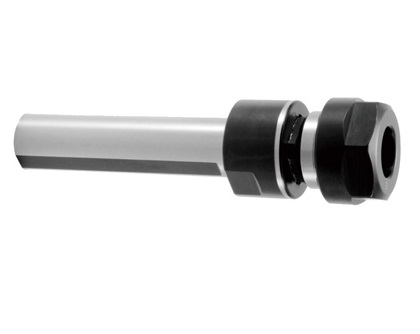

OD=16 STRAIGHT SHANK COLLET CHUCK FLOATING ER16M L= 50 mm FOR AUTOMATIC LATHE
THS006047
$ USD
36800
36800

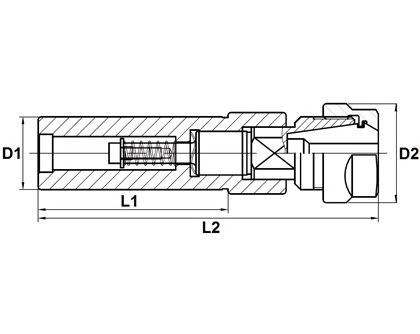

| SKU | Ø D1 | L1 | Ø D2 | L2 | Collet |
| THS001061 | 20 | 80 | 30 | 133.5 | ER16 |
| THS001063 | 34 | 134 | ER20 | ||
| THS001064 | 25 | 80 | 30 | 133.5 | ER16 |
| THS001065 | 34 | 134 | ER20 | ||
| THS001066 | 42 | 148 | ER25 | ||
| SKP013702 | 32 | 80 | 34 | 134 | ER20 |
| THS001067 | 42 | 148 | ER25 | ||
| THS001068 | 50 | 149 | ER32 | ||
| SKP013703 | 40 | 80 | 42 | 148 | ER25 |
| SKP013704 | 50 | 149 | ER32 | ||
| SKP013707 | 50 | 80 | 50 | 149 | ER32 |
The above models do not contain spanners, collets and pull studs. Please order them additionally if necessary.
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001061 OD=20 mm COMPENSATING TAPPING COLLET CHUCK ER16 L=134 mm | ||||||
| STRAIGHT | ER16 | 134 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001063 OD=20 mm COMPENSATING TAPPING COLLET CHUCK ER20 L=134 mm | ||||||
| STRAIGHT | ER20 | 134 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001064 OD=25 mm CYLINDRICAL SHANK WITH FLAT COMPENSATING TAPPING COLLET CHUCK ER16 L=134 mm | ||||||
| STRAIGHT | ER16 | 134 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001065 OD=25 mm CYLINDRICAL SHANK WITH FLAT COMPENSATING TAPPING COLLET CHUCK ER20 L=134 mm | ||||||
| STRAIGHT | ER20 | 134 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001066 OD=25 mm CYLINDRICAL SHANK WITH FLAT COMPENSATING TAPPING COLLET CHUCK ER25 L=148 mm | ||||||
| STRAIGHT | ER25 | 148 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001067 OD=32 mm COMPENSATING TAPPING COLLET CHUCK ER25 L=148 mm | ||||||
| STRAIGHT | ER25 | 148 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001068 OD=32 mm STRIGHT SHANK SIDE LOCK COMPENSATING TAPPING COLLET CHUCK ER32 L=149 mm | ||||||
| STRAIGHT | ER32 | 149 mm |
CW-CW 1:1 |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS006047 OD=16 STRAIGHT SHANK COLLET CHUCK FLOATING ER16M L= 50 mm FOR AUTOMATIC LATHE | ||||||
|
|
||||||
| THS006078 OD=22 STRAIGHT SHANK COLLET CHUCK FLOATING ER16M L= 85 mm FOR AUTOMATIC LATHE | ||||||
|
|
||||||
| THS014381 OD=32 mm SIDE LOCK COMPENSATING TAPPING COLLET CHUCK ER20 L= 80 mm | ||||||
|
|
||||||
| THS014382 OD=40 mm SIDE LOCK COMPENSATING TAPPING COLLET CHUCK ER25 L= 80 mm | ||||||
|
|
||||||
| THS014383 OD=40 mm SIDE LOCK COMPENSATING TAPPING COLLET CHUCK ER32 L= 80 mm | ||||||
|
|
||||||
| THS014384 OD=50 mm SIDE LOCK COMPENSATING TAPPING COLLET CHUCK ER32 L= 80 mm | ||||||
|
|
||||||
Updated 202505.11
