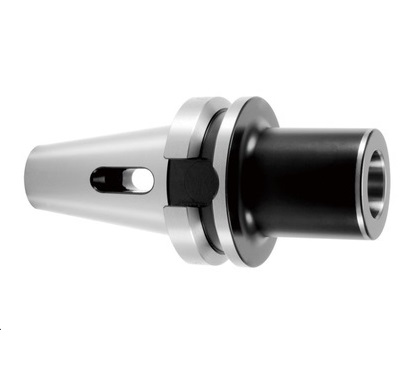

BT50 MORSE TAPER ADAPTER MT5 L=210 mm
THS004998
$ USD
20300
20300

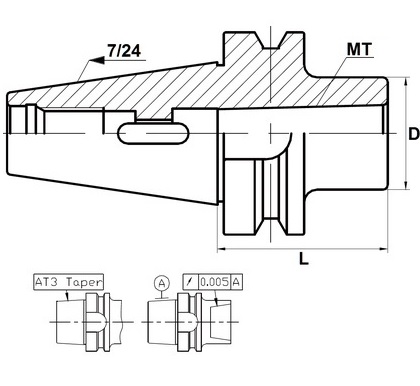

| SKU | MT (Morse Taper) |
L | Ø D |
| THS004225 | MT-1 | 45 | 25 |
| THS001965 | MT-2 | 60 | 35 |
| THS004654 | MT-3 | 77 | 40 |
| THS003730 | MT-1 | 41 | 25 |
| THS005177 | 120 | ||
| THS003731 | MT-2 | 45 | 35 |
| THS005939 | 60 | ||
| THS005175 | 120 | ||
| THS003732 | MT-3 | 72 | 40 |
| THS005179 | 135 | ||
| THS003733 | MT4 | 90 | 50 |
| THS004988 | MT-1 | 45 | 25 |
| THS001975 | 120 | ||
| THS004991 | MT-2 | 45 | 35 |
| THS004989 | 135 | ||
| THS004994 | MT-3 | 45 | 40 |
| THS001983 | 150 | ||
| THS004996 | MT-4 | 75 | 50 |
| THS001985 | 180 | ||
| THS004997 | MT-5 | 105 | 65 |
| THS004998 | 210 | ||
| THS004992 | MT-6 | 275 | 85 |
Updated 2020.8.11:12:43
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001964 BT30 MORSE TAPER ADAPTER MT1 L= 50 mm | ||||||
| STRAIGHT | MT1 | 50 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001965 BT30 MORSE TAPER ADAPTER MT2 L= 60 mm | ||||||
| STRAIGHT | MT2 | 60 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001966 BT30 MORSE TAPER ADAPTER MT3 L= 75 mm | ||||||
| STRAIGHT | MT3 | 75 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001973 BT40 MORSE TAPER ADAPTER MT4 L= 95 mm | ||||||
| STRAIGHT | MT4 | 95 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001975 BT50 MORSE TAPER ADAPTER MT1 L=120 mm | ||||||
| STRAIGHT | MT1 | 120 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001983 BT50 MORSE TAPER ADAPTER MT3 L=150 mm | ||||||
| STRAIGHT | MT3 | 150 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001985 BT50 MORSE TAPER ADAPTER MT4 L=180 mm | ||||||
| STRAIGHT | MT4 | 180 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003730 BT40 MORSE TAPER ADAPTER MT1 L= 45 mm | ||||||
|
|
||||||
| THS003731 BT40 MORSE TAPER ADAPTER MT2 L= 45 mm | ||||||
|
|
||||||
| THS003732 BT40 MORSE TAPER ADAPTER MT3 L= 75 mm | ||||||
|
|
||||||
| THS003733 BT40 MORSE TAPER ADAPTER MT4 L= 90 mm | ||||||
|
|
||||||
| THS004225 BT30 MORSE TAPER ADAPTER MT1 L= 45 mm | ||||||
|
|
||||||
| THS004654 BT30 MORSE TAPER ADAPTER MT3 L= 80 mm | ||||||
|
|
||||||
| THS004872 BT30 MORSE TAPER ADAPTER MT1 L=120 mm | ||||||
|
|
||||||
| THS004874 BT30 MORSE TAPER ADAPTER MT1 L=180 mm | ||||||
|
|
||||||
| THS004875 BT30 MORSE TAPER ADAPTER MT2 L=120 mm | ||||||
|
|
||||||
| THS004876 BT30 MORSE TAPER ADAPTER MT2 L=180 mm | ||||||
|
|
||||||
| THS004877 BT30 MORSE TAPER ADAPTER MT3 L=135 mm | ||||||
|
|
||||||
| THS004878 BT30 MORSE TAPER ADAPTER MT3 L= 90 mm | ||||||
|
|
||||||
| THS004988 BT50 MORSE TAPER ADAPTER MT1 L= 45 mm | ||||||
|
|
||||||
| THS004989 BT50 MORSE TAPER ADAPTER MT2 L=135 mm | ||||||
|
|
||||||
| THS004991 BT50 MORSE TAPER ADAPTER MT2 L= 45 mm | ||||||
|
|
||||||
| THS004992 BT50 MORSE TAPER ADAPTER MT6 L=275 mm | ||||||
|
|
||||||
| THS004994 BT50 MORSE TAPER ADAPTER MT3 L= 45 mm | ||||||
|
|
||||||
| THS004996 BT50 MORSE TAPER ADAPTER MT4 L= 75 mm | ||||||
|
|
||||||
| THS004997 BT50 MORSE TAPER ADAPTER MT5 L=105 mm | ||||||
|
|
||||||
| THS004998 BT50 MORSE TAPER ADAPTER MT5 L=210 mm | ||||||
|
|
||||||
| THS005175 BT40 MORSE TAPER ADAPTER MT2 L=120 mm | ||||||
|
|
||||||
| THS005177 BT40 MORSE TAPER ADAPTER MT1 L=120 mm | ||||||
|
|
||||||
| THS005939 BT40 MORSE TAPER ADAPTER MT2 L= 60 mm | ||||||
|
|
||||||
Updated 202504.30
