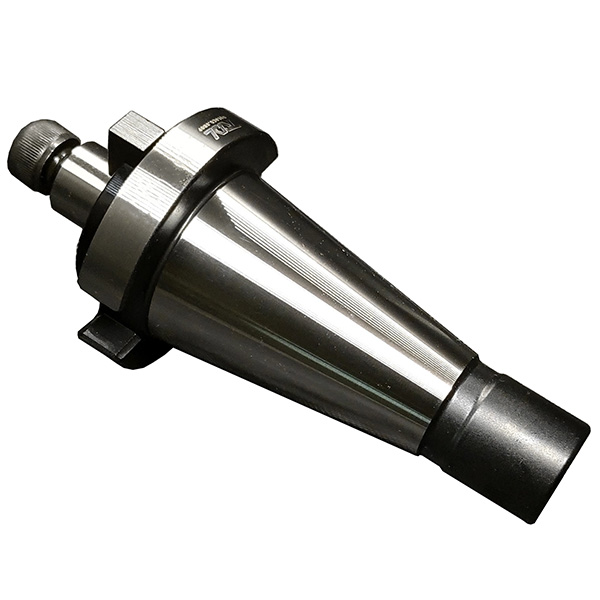

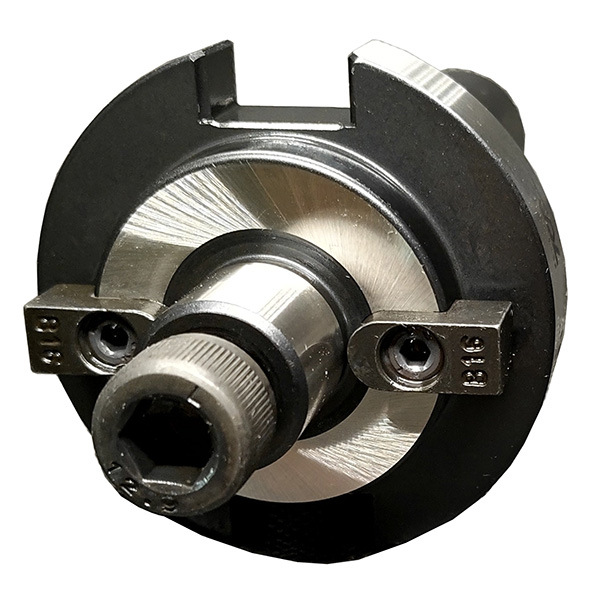

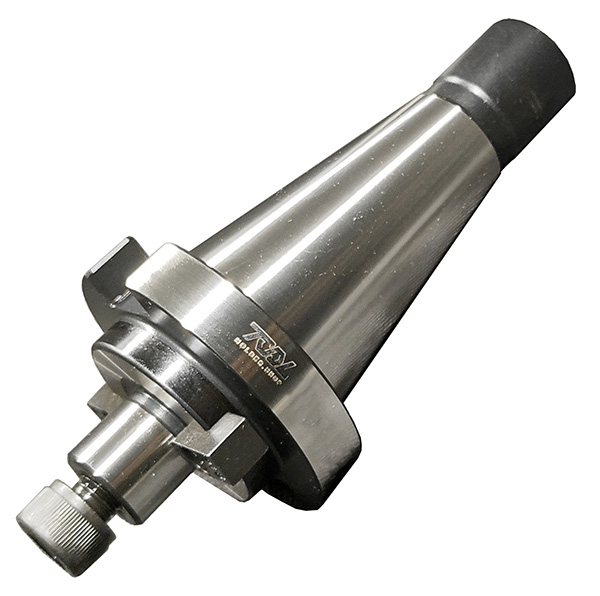

NT50 FACE MILL HOLDER OD=(1-1/2)" L= 35 mm
THS006421
$ USD
11400
11400
| SKU | FIG | L | Ø d (h6) | Ø D | H | K | W | Weight |
| THS005559 | 1 | 20 | 25.4 | 50 | 20 | 5 | 9.5 | 0.7 |
| THS006384 | 25 | 31.75 | 60 | 22 | 7 | 12.7 | 1.0 | |
| THS006385 | 30 | 38.1 | 80 | 25 | 9 | 15.9 | 1.5 | |
| THS006412 | 1 | 25 | 24.5 | 50 | 20 | 5 | 9.5 | 1.2 |
| THS006413 | 31.75 | 60 | 22 | 7 | 12.7 | 1.4 | ||
| THS006414 | 30 | 38.1 | 80 | 25 | 9 | 15.9 | 2.0 | |
| THS006415 | 35 | 50.8 | 100 | 28 | 12 | 3.2 | ||
| THS006418 | 1 | 35 | 25.4 | 50 | 20 | 5 | 9.5 | 3.2 |
| THS006419 | 31.75 | 60 | 22 | 7 | 12.7 | 3.4 | ||
| THS006421 | 38.1 | 80 | 25 | 9 | 15.9 | 4.0 | ||
| THS006423 | 50.8 | 100 | 28 | 12 | 4.8 | |||
| THS006422 | 2 | 45 | 47.625 | 128 | 32 | 12.5 | 25.4 | 6.3 |
The collet and spanner are not included, please order them additionally if necessary. The tool package of whole set is available on request (includes 1 spanner and 7 collets).
Updated 2020.8.11:12:43
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS005559 NT30 FACE MILL HOLDER OD=(1)" L= 20 mm | ||||||
|
|
||||||
| THS005573 NT40 FACE MILL HOLDER OD=(1)" L=100 mm | ||||||
|
|
||||||
| THS005574 NT40 FACE MILL HOLDER OD=(1)" L= 20 mm THREAD M16x2.0P | ||||||
|
|
||||||
| THS005575 NT40 FACE MILL HOLDER OD=(1)" L= 50 mm | ||||||
|
|
||||||
| THS005576 NT40 FACE MILL HOLDER OD=(1)" L= 75 mm | ||||||
|
|
||||||
| THS005577 NT40 FACE MILL HOLDER OD=(1-1/4)" L=100 mm | ||||||
|
|
||||||
| THS005578 NT40 FACE MILL HOLDER OD=(1-1/4)" L= 20 mm | ||||||
|
|
||||||
| THS005579 NT40 FACE MILL HOLDER OD=(1-1/4)" L= 50 mm | ||||||
|
|
||||||
| THS005580 NT40 FACE MILL HOLDER OD=(1-1/4)" L= 75 mm | ||||||
|
|
||||||
| THS005581 NT40 FACE MILL HOLDER OD=(1-1/2)" L=100 mm | ||||||
|
|
||||||
| THS005582 NT40 FACE MILL HOLDER OD=(1-1/2)" L= 20 mm | ||||||
|
|
||||||
| THS005583 NT40 FACE MILL HOLDER OD=(1-1/2)" L= 50 mm | ||||||
|
|
||||||
| THS005584 NT40 FACE MILL HOLDER OD=(1-1/2)" L= 75 mm | ||||||
|
|
||||||
| THS005585 NT40 FACE MILL HOLDER OD=(2)" L=100 mm | ||||||
|
|
||||||
| THS005586 NT40 FACE MILL HOLDER OD=(2)" L= 20 mm | ||||||
|
|
||||||
| THS005587 NT40 FACE MILL HOLDER OD=(2)" L= 50 mm | ||||||
|
|
||||||
| THS005588 NT40 FACE MILL HOLDER OD=(2)" L= 75 mm | ||||||
|
|
||||||
| THS005589 NT40 FACE MILL HOLDER OD=(1-7/8)" L= 20 mm | ||||||
|
|
||||||
| THS005590 NT40 FACE MILL HOLDER OD=22 mm L= 20 mm | ||||||
|
|
||||||
| THS005591 NT40 FACE MILL HOLDER OD=27 mm L= 20 mm | ||||||
|
|
||||||
| THS005592 NT40 FACE MILL HOLDER OD=32 mm L= 20 mm | ||||||
|
|
||||||
| THS005593 NT40 FACE MILL HOLDER OD=40 mm L= 20 mm | ||||||
|
|
||||||
| THS005594 NT40 FACE MILL HOLDER OD=60 mm L= 24 mm | ||||||
|
|
||||||
| THS006384 NT30 FACE MILL HOLDER OD=(1-1/4)" L=25 mm | ||||||
|
|
||||||
| THS006385 NT30 FACE MILL HOLDER OD=(1-1/2)" L=30 mm | ||||||
|
|
||||||
| THS006412 NT40 FACE MILL HOLDER OD=(1)" L= 25 mm | ||||||
|
|
||||||
| THS006413 NT40 FACE MILL HOLDER OD=(1-1/4)" L= 25 mm | ||||||
|
|
||||||
| THS006414 NT40 FACE MILL HOLDER OD=(1-1/2)" L= 30 mm | ||||||
|
|
||||||
| THS006415 NT40 FACE MILL HOLDER OD=(2)" L= 35 mm | ||||||
|
|
||||||
| THS006418 NT50 FACE MILL HOLDER OD=(1)" L= 35 mm | ||||||
|
|
||||||
