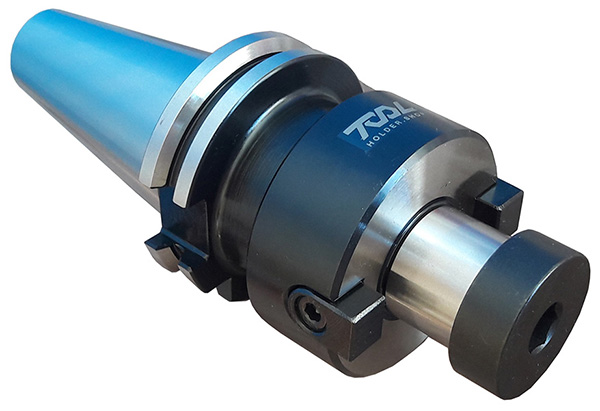

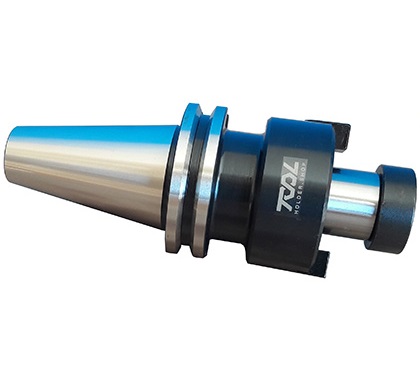

BT50 FACE MILL HOLDER OD=22 mm L=350 mm
THS005237
$ USD
36400
36400
| SKU | L | Ø d | Ø D | H | K | W |
| THS005740 | 45 | 22 | 48 | 18 | 5 | 10 |
| THS005005 | 100 | |||||
| THS005007 | 60 | 27 | 60 | 20 | 6 | 12 |
| THS005009 | 60 | 32 | 72 | 22 | 7 | 14 |
| THS001927 | 45 | 22 | 48 | 18 | 5 | 10 |
| THS005220 | 60 | |||||
| THS005221 | 90 | |||||
| THS005950 | 105 | |||||
| THS005218 | 150 | |||||
| THS005951 | 200 | |||||
| THS001935 | 45 | 27 | 60 | 20 | 6 | 12 |
| THS005228 | 60 | |||||
| THS005226 | 105 | |||||
| THS003729 | 45 | 32 | 72 | 22 | 7 | 14 |
| THS005231 | 60 | |||||
| THS005230 | 105 | |||||
| THS005952 | 70 | 40 | 80 | 25 | 8 | 16 |
| THS001952 | 60 | 22 | 48 | 18 | 5 | 10 |
| THS011108 | 60 | |||||
| THS005965 | 105 | |||||
| THS005966 | 150 | |||||
| THS005234 | 200 | |||||
| THS005235 | 250 | |||||
| THS005236 | 300 | |||||
| THS005237 | 350 | |||||
| THS005243 | 45 | 27 | 60 | 20 | 6 | 12 |
| THS005245 | 90 | |||||
| THS005234 | 105 | |||||
| THS005248 | 45 | 32 | 72 | 22 | 7 | 14 |
| THS005249 | 75 | |||||
| THS005967 | 105 | |||||
| THS005246 | 150 | |||||
| THS005251 | 45 | 40 | 80 | 25 | 8 | 16 |
| THS005968 | 70 | |||||
| THS005969 | 105 |
* Coolant-Through Spindle
** These models are for extension only, they are not standard products. Please order them additionally if necessary
** These models are for extension only, they are not standard products. Please order them additionally if necessary
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001926 BT40 FACE MILL HOLDER OD=16 mm L=160 mm | ||||||
| STRAIGHT | 16 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001927 BT40 FACE MILL HOLDER OD=22 mm L= 45 mm | ||||||
| STRAIGHT | 22 mm | 45 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001928 BT40 FACE MILL HOLDER OD=22 mm L=100 mm | ||||||
| STRAIGHT | 22 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001929 BT40 FACE MILL HOLDER OD=22 mm L=160 mm | ||||||
| STRAIGHT | 22 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001930 BT30 FACE MILL HOLDER OD=16 mm L= 35 mm | ||||||
| STRAIGHT | 16 mm | 35 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001931 BT30 FACE MILL HOLDER OD=22 mm L= 40 mm | ||||||
| STRAIGHT | 22 mm | 40 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001932 BT30 FACE MILL HOLDER OD=27 mm L= 40 mm | ||||||
| STRAIGHT | 27 mm | 40 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001933 BT40 FACE MILL HOLDER OD=16 mm L= 45 mm | ||||||
| STRAIGHT | 16 mm | 45 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001934 BT40 FACE MILL HOLDER OD=16 mm L=100 mm | ||||||
| STRAIGHT | 16 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001935 BT40 FACE MILL HOLDER OD=27 mm L= 45 mm | ||||||
| STRAIGHT | 27 mm | 45 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001936 BT40 FACE MILL HOLDER OD=27 mm L=100 mm | ||||||
| STRAIGHT | 27 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001937 BT40 FACE MILL HOLDER OD=27 mm L=160 mm | ||||||
| STRAIGHT | 27 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001938 BT40 FACE MILL HOLDER OD=32 mm L= 50 mm | ||||||
| STRAIGHT | 32 mm | 50 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001939 BT40 FACE MILL HOLDER OD=32 mm L=100 mm | ||||||
| STRAIGHT | 32 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001940 BT40 FACE MILL HOLDER OD=32 mm L=160 mm | ||||||
| STRAIGHT | 32 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001941 BT40 FACE MILL HOLDER OD=40 mm L= 55 mm | ||||||
| STRAIGHT | 40 mm | 55 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001947 BT40 FACE MILL HOLDER OD=40 mm L=100 mm | ||||||
| STRAIGHT | 40 mm | 100 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001948 BT40 FACE MILL HOLDER OD=40 mm L=160 mm | ||||||
| STRAIGHT | 40 mm | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001952 BT50 FACE MILL HOLDER OD=22 mm L= 60 mm | ||||||
| STRAIGHT | 22 mm | 60 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003729 BT40 FACE MILL HOLDER OD=32 mm L= 45 mm | ||||||
|
|
||||||
| THS005005 BT30 FACE MILL HOLDER OD=22 mm L=100 mm | ||||||
|
|
||||||
| THS005007 BT30 FACE MILL HOLDER OD=27 mm L= 60 mm | ||||||
|
|
||||||
| THS005009 BT30 FACE MILL HOLDER OD=32 mm L= 60 mm | ||||||
|
|
||||||
| THS005217 BT40 FACE MILL HOLDER OD=22 mm L=125 mm | ||||||
|
|
||||||
| THS005218 BT40 FACE MILL HOLDER OD=22 mm L=150 mm | ||||||
|
|
||||||
| THS005220 BT40 FACE MILL HOLDER OD=22 mm L= 60 mm | ||||||
|
|
||||||
| THS005221 BT40 FACE MILL HOLDER OD=22 mm L= 90 mm | ||||||
|
|
||||||
| THS005226 BT40 FACE MILL HOLDER OD=27 mm L=105 mm | ||||||
|
|
||||||
| THS005228 BT40 FACE MILL HOLDER OD=27 mm L= 60 mm | ||||||
|
|
||||||
| THS005229 BT40 FACE MILL HOLDER OD=27 mm L= 90 mm | ||||||
|
|
||||||
Updated 202505.11
Tool holder machine interface: CNC MILLING SPINDLE turret, BT-50, TAPER, ANY
