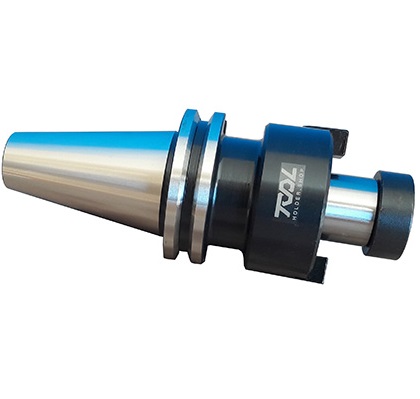

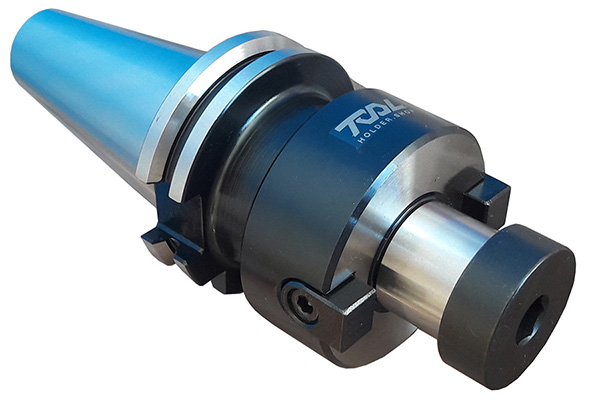

BT50 FACE MILL HOLDER OD=(1-1/4)" L=150 mm
THS004980
$ USD
21800
21800
| SKU | FIG | L | Ø d(h6) | Ø D | H | K | W | Weight |
| THS003660 | 1 | 45 | 25.4 | 50 | 20 | 5 | 9.5 | 0.9 |
| THS005003 | 60 | 38.1 | 80 | 25 | 9 | 15.9 | 2.1 | |
| THS002133 | 1 | 45 | 25.4 | 50 | 20 | 5 | 9.5 | 1.4 |
| THS005210 | 60 | 1.7 | ||||||
| THS005208 | 105 | 2.4 | ||||||
| THS005947 | 150 | 3.1 | ||||||
| THS005948 | 200 | 3.8 | ||||||
| THS005949 | 250 | 4.6 | ||||||
| THS002134 | 45 | 31.75 | 60 | 22 | 7 | 12.7 | 1.6 | |
| THS005212 | 60 | 2.0 | ||||||
| THS005213 | 90 | 2.7 | ||||||
| THS002135 | 60 | 38.1 | 80 | 25 | 9 | 15.9 | 2.5 | |
| THS003786 | 1 | 45 | 25.4 | 50 | 2- | 5 | 9.5 | 4.0 |
| THS005963 | 90 | 4.6 | ||||||
| THS004968 | 105 | 4.9 | ||||||
| BT50-FMA25.4-150 | 150 | 5.6 | ||||||
| THS004977 | 200 | 6.4 | ||||||
| THS005962 | 250 | 7.2 | ||||||
| THS004982 | 45 | 31.75 | 60 | 22 | 7 | 12.7 | 4.1 | |
| THS004983 | 75 | 4.8 | ||||||
| THS004978 | 105 | 5.5 | ||||||
| THS004980 | 150 | 6.4 | ||||||
| THS004981 | 200 | 7.6 | ||||||
| THS003785 | 1 | 45 | 38.1 | 80 | 25 | 9 | 15.9 | 4.5 |
| THS004984 | 75 | 5.6 | ||||||
| THS004985 | 45 | 50.8 | 100 | 28 | 12 | 5.4 | ||
| THS005964 | 2 | 75 | 47.625 | 128 | 32 | 12.5 | 25.4 | 8.2 |
These models are for extension types, they are not standard products, please order them additionally if necessary: THS005949 and THS005962
The face mill holder end face is precisely ground, so that the connection of the tool disk and holder is perfect, it is suitable for rough processing and can achieve optimal cutting performance.
The face mill holder end face is precisely ground, so that the connection of the tool disk and holder is perfect, it is suitable for rough processing and can achieve optimal cutting performance.
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS002132 BT40 FACE MILL HOLDER OD=( 3/ 4)" L= 45 mm | ||||||
| STRAIGHT | ( 3/ 4)" | 45 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002133 BT40 FACE MILL HOLDER OD=( 1)" L= 45 mm | ||||||
| STRAIGHT | ( 1)" | 45 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002134 BT40 FACE MILL HOLDER OD=( 1- 1/ 4)" L= 45 mm | ||||||
| STRAIGHT | ( 1- 1/ 4)" | 45 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002135 BT40 FACE MILL HOLDER OD=( 1- 1/ 2)" L= 60 mm | ||||||
| STRAIGHT | ( 1- 1/ 2)" | 60 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003660 BT30 FACE MILL HOLDER OD=(1)" L= 45 mm | ||||||
|
|
||||||
| THS003785 BT50 FACE MILL HOLDER OD=(1-1/2)" L=45 mm | ||||||
|
|
||||||
| THS003786 BT50 FACE MILL HOLDER OD=(1)" L=45 mm | ||||||
|
|
||||||
| THS004720 BT30 FACE MILL HOLDER OD=(1)" L= 60 mm | ||||||
|
|
||||||
| THS004968 BT50 FACE MILL HOLDER OD=(1)" L=105 mm | ||||||
|
|
||||||
| THS004977 BT50 FACE MILL HOLDER OD=(1)" L=200 mm | ||||||
|
|
||||||
| THS004978 BT50 FACE MILL HOLDER OD=(1-1/4)" L=105 mm | ||||||
|
|
||||||
| THS004980 BT50 FACE MILL HOLDER OD=(1-1/4)" L=150 mm | ||||||
|
|
||||||
| THS004981 BT50 FACE MILL HOLDER OD=(1-1/4)" L=200 mm | ||||||
|
|
||||||
| THS004982 BT50 FACE MILL HOLDER OD=(1-1/4)" L= 45 mm | ||||||
|
|
||||||
| THS004983 BT50 FACE MILL HOLDER OD=(1-1/4)" L= 75 mm | ||||||
|
|
||||||
| THS004984 BT50 FACE MILL HOLDER OD=(1-1/2)" L=75 mm | ||||||
|
|
||||||
| THS004985 BT50 FACE MILL HOLDER OD=(2)" L= 45 mm | ||||||
|
|
||||||
| THS005003 BT30 FACE MILL HOLDER OD=(1-1/2)" L= 60 mm | ||||||
|
|
||||||
| THS005208 BT40 FACE MILL HOLDER OD=(1)" L=105 mm | ||||||
|
|
||||||
| THS005210 BT40 FACE MILL HOLDER OD=(1)" L= 60 mm | ||||||
|
|
||||||
| THS005212 BT40 FACE MILL HOLDER OD=(1-1/4)" L= 60 mm | ||||||
|
|
||||||
| THS005213 BT40 FACE MILL HOLDER OD=(1-1/4)" L= 90 mm | ||||||
|
|
||||||
| THS005215 BT40 FACE MILL HOLDER OD=(1-1/2)" L= 90 mm | ||||||
|
|
||||||
| THS005947 BT40 FACE MILL HOLDER OD=(1)" L=150 mm | ||||||
|
|
||||||
| THS005948 BT40 FACE MILL HOLDER OD=(1)" L=200 mm | ||||||
|
|
||||||
| THS005949 BT40 FACE MILL HOLDER OD=(1)" L=250 mm | ||||||
|
|
||||||
| THS005962 BT50 FACE MILL HOLDER OD=(1)" L=250 mm | ||||||
|
|
||||||
| THS005963 BT50 FACE MILL HOLDER OD=(1)" L=90 mm | ||||||
|
|
||||||
| THS005964 BT50 FACE MILL HOLDER OD=(1-7/8)" L= 75 mm | ||||||
|
|
||||||
| THS006396 BT30 FACE MILL HOLDER OD=(1-1/4)" L= 45 mm | ||||||
|
|
||||||
Updated 202505.11
Tool holder machine interface: CNC MILLING SPINDLE turret, BT-50, TAPER, ANY
