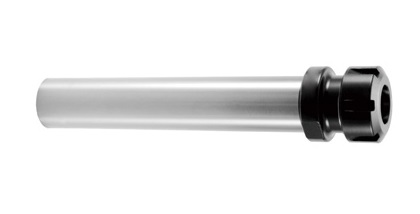

OD=32 mm STRAIGHT SHANK COLLET CHUCK ER32 L= 80 mm
THS001174
$ USD
9100
9100

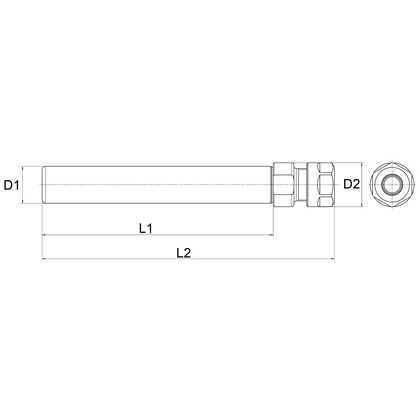

| SKU | Ø D1 | Ø D2 | L1 | L2 |
| THS001155 | 16 | 19 | 100 | 126.5 |
| THS004672 | 19 | 120 | 146.5 | |
| THS001156 | 19 | 130 | 156.5 | |
| THS001157 | 30 | 130 | 169.5 | |
| THS001158 | 20 | 30 | 120 | 159.5 |
| THS001159 | 30 | 180 | 219.5 | |
| THS001160 | 34 | 120 | 165.5 | |
| THS005036 | 34 | 150 | 195.5 | |
| THS001162 | 34 | 170 | 215.5 | |
| THS001163 | 42 | 120 | 172 | |
| THS001181 | 42 | 170 | 222 | |
| THS001123 | 50 | 100 | 161 | |
| THS001164 | 25 | 30 | 130 | 169.5 |
| THS001165 | 30 | 170 | 209.5 | |
| THS001166 | 34 | 130 | 172 | |
| THS001167 | 34 | 170 | 212 | |
| THS001168 | 42 | 130 | 182 | |
| THS001169 | 42 | 170 | 222 | |
| THS001170 | 32 | 42 | 130 | 177 |
| THS001171 | 42 | 170 | 217 | |
| THS001174 | 50 | 80 | 138 | |
| THS001172 | 50 | 130 | 188 | |
| THS001173 | 50 | 170 | 228 |
* This model does not contain spanners and collets, please order them additionally if necessary
Updated 2020.8.11:12:43
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001123 OD=20 mm STRAIGHT SHANK COLLET CHUCK ER32 L=100 mm | ||||||
| STRAIGHT | ER32 | 100 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001155 OD=16 mm STRAIGHT SHANK COLLET CHUCK ER11 L=100 mm | ||||||
| STRAIGHT | ER11 | 100 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001156 OD=16 mm STRAIGHT SHANK COLLET CHUCK ER11 L=130 mm | ||||||
| STRAIGHT | ER11 | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001157 OD=16 mm STRAIGHT SHANK COLLET CHUCK ER16 L=130 mm | ||||||
| STRAIGHT | ER16 | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001158 OD=20 mm STRAIGHT SHANK COLLET CHUCK ER16 L=120 mm | ||||||
| STRAIGHT | ER16 | 120 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001159 OD=20 mm STRAIGHT SHANK COLLET CHUCK ER16 L=180 mm | ||||||
| STRAIGHT | ER16 | 180 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001160 OD=20 mm STRAIGHT SHANK COLLET CHUCK ER20 L=120 mm | ||||||
| STRAIGHT | ER20 | 120 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001161 OD=20 mm STRAIGHT SHANK COLLET CHUCK ER20 L=150 mm | ||||||
| STRAIGHT | ER20 | 150 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001162 OD=20 mm STRAIGHT SHANK COLLET CHUCK ER20 L=170 mm | ||||||
| STRAIGHT | ER20 | 170 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001163 OD=20 mm STRAIGHT SHANK COLLET CHUCK ER25 L=120 mm | ||||||
| STRAIGHT | ER25 | 120 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001164 OD=25 mm STRAIGHT SHANK COLLET CHUCK ER16 L=130 mm | ||||||
| STRAIGHT | ER16 | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001165 OD=25 mm STRAIGHT SHANK COLLET CHUCK ER16 L=170 mm | ||||||
| STRAIGHT | ER16 | 170 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001166 OD=25 mm STRAIGHT SHANK COLLET CHUCK ER20 L=130 mm | ||||||
| STRAIGHT | ER20 | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001167 OD=25 mm STRAIGHT SHANK COLLET CHUCK ER20 L=170 mm | ||||||
| STRAIGHT | ER20 | 170 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001168 OD=25 mm STRAIGHT SHANK COLLET CHUCK ER25 L=130 mm | ||||||
| STRAIGHT | ER25 | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001169 OD=25 mm STRAIGHT SHANK COLLET CHUCK ER25 L=170 mm | ||||||
| STRAIGHT | ER25 | 170 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001170 OD=32 mm STRAIGHT SHANK COLLET CHUCK ER25 L=130 mm | ||||||
| STRAIGHT | ER25 | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001171 OD=32 mm STRAIGHT SHANK COLLET CHUCK ER25 L=170 mm | ||||||
| STRAIGHT | ER25 | 170 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001172 OD=32 mm STRAIGHT SHANK COLLET CHUCK ER32 L=130 mm | ||||||
| STRAIGHT | ER32 | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001173 OD=32 mm STRAIGHT SHANK COLLET CHUCK ER32 L=170 mm | ||||||
| STRAIGHT | ER32 | 170 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001174 OD=32 mm STRAIGHT SHANK COLLET CHUCK ER32 L= 80 mm | ||||||
| STRAIGHT | ER32 | 80 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001181 OD=20 mm CYLINDRICAL SHANK COLLET CHUCK ER25 L=170 mm | ||||||
| STRAIGHT | ER25 | 170 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004672 OD=16 mm STRIGHT SHANK COLLET CHUCK ER11 L=120 mm | ||||||
|
|
||||||
| THS005078 OD=(3/4)" STRIGHT SHANK COLLET CHUCK ER16 L=(2)" Type C | ||||||
|
|
||||||
| THS005080 OD=(3/4)" STRIGHT SHANK COLLET CHUCK ER16M L=(2)" Type C | ||||||
|
|
||||||
| THS005081 OD=(3/4)" STRIGHT SHANK COLLET CHUCK ER16 L=(4)" Type C | ||||||
|
|
||||||
| THS005082 OD=(3/4)" STRIGHT SHANK COLLET CHUCK ER16M L=(4)" Type C | ||||||
|
|
||||||
| THS005083 OD=(3/4)" STRIGHT SHANK COLLET CHUCK ER16 L=(6)" Type C | ||||||
|
|
||||||
| THS005084 OD=(3/4)" STRIGHT SHANK COLLET CHUCK ER16M L=(6)" Type C | ||||||
|
|
||||||
| THS005085 OD=(3/4)" STRIGHT SHANK COLLET CHUCK ER20 L=(2)" Type C | ||||||
|
|
||||||
Updated 202504.30
