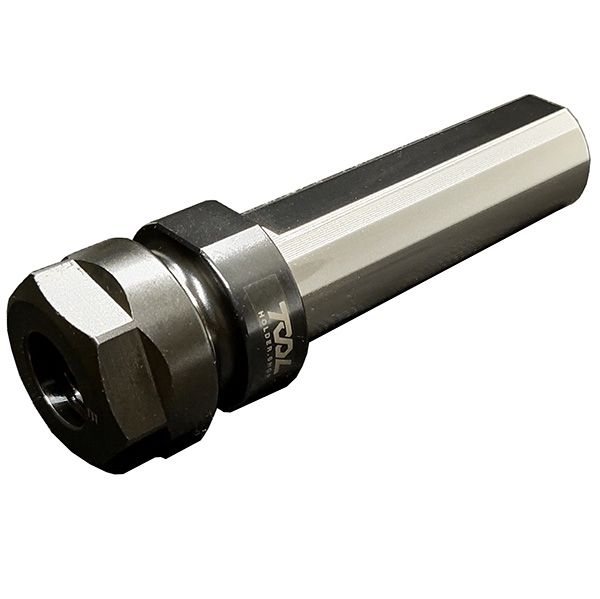

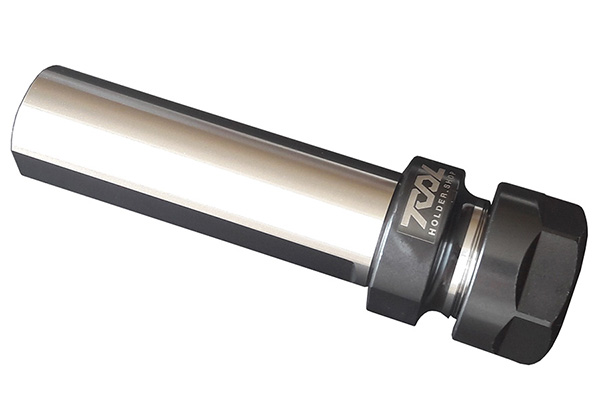

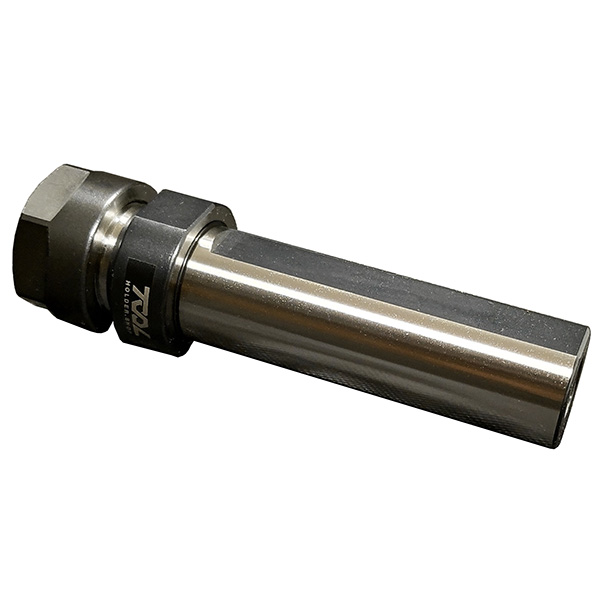

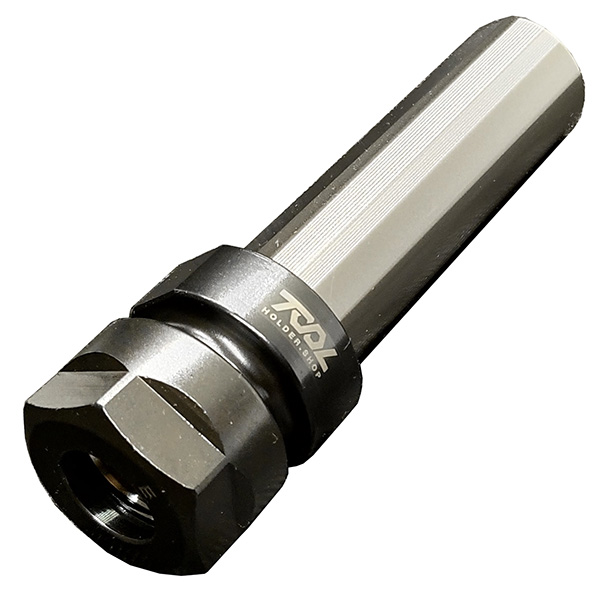

OD=( 1)" STRAIGHT SHANK COLLET CHUCK ER25 L= 70 mm
THS019301

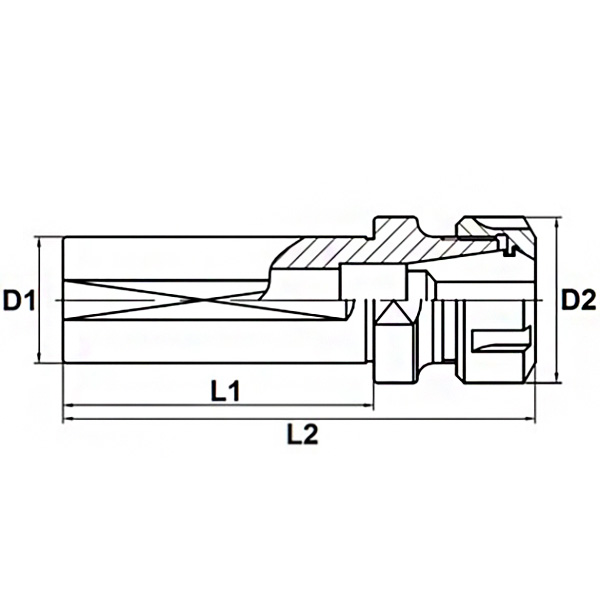

| SKU | Ø D1 | Ø D2 | L1 | L2 |
| THS001070 | 16 | 30 | 70 | 109.5 |
| THS001074 | 20 | 30 | 70 | 109.5 |
| THS001072 | 30 | 100 | 139.5 | |
| THS001073 | 30 | 120 | 159.5 | |
| THS001077 | 34 | 80 | 125.5 | |
| THS001075 | 34 | 100 | 145.5 | |
| THS001076 | 34 | 120 | 165.5 | |
| THS001078 | 25 | 34 | 80 | 122 |
| THS001079 | 42 | 70 | 122 | |
| THS001080 | 32 | 42 | 80 | 132 |
| THS001083 | 34 | 80 | 122 | |
| THS001085 | 42 | 70 | 117 | |
| THS001086 | 42 | 80 | 127 | |
| THS001087 | 50 | 80 | 138 | |
| THS001088 | 50 | 130 | 188 | |
| THS001089 | 40 | 63 | 70 | 137 |
| THS001090 | 42 | 80 | 132 | |
| THS001092 | 50 | 80 | 131 | |
| THS001091 | 50 | 135 | 193 | |
| THS001093 | 63 | 80 | 147 |
The above models do not contain spanners and collets. Please order them additionally if necessary.
Updated 2020.8.11:12:43
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001070 OD=16 mm STRIGHT SHANK SIDE LOCK COLLET CHUCK ER16 L=110 mm | ||||||
| STRAIGHT | ER16 | 110 mm |
CW-CW STATIC |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001071 SHANK OD=20 mm SIDE LOCK MILLING DRILLING COLLET CHUCK ER11M L= 88 mm | ||||||
| STRAIGHT | ER11 | 88 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001072 OD=20 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER16 L=140 mm | ||||||
| STRAIGHT | ER16 | 140 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001073 OD=20 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER16 L=160 mm | ||||||
| STRAIGHT | ER16 | 160 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001074 OD=20 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER16 L=110 mm | ||||||
| STRAIGHT | ER16 | 110 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001075 OD=20 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER20 L=146 mm | ||||||
| STRAIGHT | ER20 | 146 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001076 OD=20 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER20 L=166 mm | ||||||
| STRAIGHT | ER20 | 166 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001077 OD=20 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER20 L=126 mm | ||||||
| STRAIGHT | ER20 | 126 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001078 OD=25 mm CYLINDRICAL SHANK WITH FLAT COLLET CHUCK ER20 L=122 mm | ||||||
| STRAIGHT | ER20 | 122 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001079 OD=25 mm CYLINDRICAL SHANK WITH FLAT COLLET CHUCK ER25 L=122 mm | ||||||
| STRAIGHT | ER25 | 122 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001080 OD=25 mm CYLINDRICAL SHANK WITH FLAT COLLET CHUCK ER25 L=132 mm | ||||||
| STRAIGHT | ER25 | 132 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001081 OD=25 mm CYLINDRICAL SHANK WITH FLAT COLLET CHUCK ER32 L=122 mm | ||||||
| STRAIGHT | ER32 | 122 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001082 OD=25 mm CYLINDRICAL SHANK WITH FLAT COLLET CHUCK ER40 L=122 mm | ||||||
| STRAIGHT | ER40 | 122 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001083 OD=32 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER20 L=122 mm | ||||||
| STRAIGHT | ER20 | 122 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001084 OD=32 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER25 L=110 mm | ||||||
| STRAIGHT | ER25 | 110 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001085 OD=32 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER25 L=117 mm | ||||||
| STRAIGHT | ER25 | 117 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001086 OD=32 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER25 L=127 mm | ||||||
| STRAIGHT | ER25 | 127 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001087 OD=32 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER32 L=138 mm | ||||||
| STRAIGHT | ER32 | 138 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001088 OD=32 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER32 L=188 mm | ||||||
| STRAIGHT | ER32 | 188 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001089 OD=32 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER40 L=137 mm | ||||||
| STRAIGHT | ER40 | 137 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001090 OD=40 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER25 L=132 mm | ||||||
| STRAIGHT | ER25 | 132 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001091 OD=40 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER32 L=193 mm | ||||||
| STRAIGHT | ER32 | 193 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001092 OD=40 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER32 L=131 mm | ||||||
| STRAIGHT | ER32 | 131 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001093 OD=40 mm STRAIGHT SHANK SIDE LOCK MILLING DRILLING COLLET CHUCK ER40 L=147 mm | ||||||
| STRAIGHT | ER40 | 147 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS018835 OD=22 mm CYLINDRICAL SHANK WITH FLAT COLLET CHUCK ER20 L=100 mm | ||||||
|
|
||||||
| THS019291 OD=20 mm STRIGHT SHANK SIDE LOCK COLLET CHUCK ER11 L=40 mm | ||||||
|
|
||||||
| THS019296 OD=20 mm SIDE LOCK MILLING DRILLING COLLET CHUCK ER16M L= 40 mm | ||||||
|
|
||||||
| THS019297 OD=( 1)" STRAIGHT SHANK COLLET CHUCK ER16M L= 40 mm | ||||||
|
|
||||||
| THS019298 OD=( 1)" STRAIGHT SHANK COLLET CHUCK ER16M L= 70 mm | ||||||
|
|
||||||
| THS019299 OD=( 1)" STRAIGHT SHANK COLLET CHUCK ER16M L=105 mm | ||||||
|
|
||||||
Updated 202504.30
