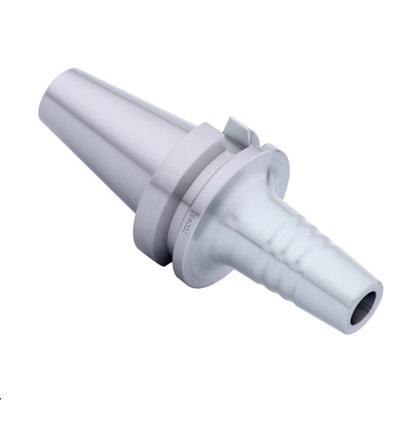

BT50 BACK LOCKING COLLET HOLDER UC16 L=120 mm
THS004587
$ USD
36400
36400

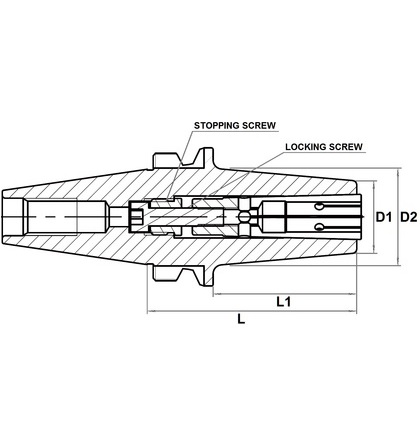

| SKU | L | L1 | D1 | D2 | G | RPM | Collet | Locking screw |
Stopping screw |
Spanner |
| THS004381 | 70 | 48 | 24 | 30 | G2.5 | 24000 | UC10 | M6L25 | UC-M12 | 5x100 |
| THS004382 | 90 | 68 | 32 | 40 | G2.5 | 24000 | UC16 | M8L30 | UC-M18 | 6x100 |
| THS004383 | 90 | 63 | 24 | 32 | G6.3 | 16000 | UC10 | M6L30 | UC-M12 | 5x100 |
| THS004378 | 120 | 93 | 24 | 36 | G6.3 | 16000 | UC10 | M6L30 | UC-M12 | 5x100 |
| THS004379 | 150 | 123 | 24 | 40 | G6.3 | 16000 | UC10 | M6L30 | UC-M12 | 5x100 |
| THS004380 | 90 | 63 | 32 | 40 | G6.3 | 16000 | UC16 | M8L30 | UC-M18 | 6x100 |
| THS004376 | 110 | 72 | 24 | 36 | G6.3 | 16000 | UC10 | M6L30 | UC-M12 | 5x100 |
| THS004377 | 200 | 162 | 24 | 50 | G6.3 | 16000 | UC10 | M6L30 | UC-M12 | 5x100 |
| THS004587 | 120 | 82 | 32 | 42 | G6.3 | 16000 | UC16 | M8L30 | UC-M18 | 5x100 |
Updated 2020.8.11:12:43
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004376 BT50 BACK LOCKING COLLET HOLDER UC10 L=110 mm | ||||||
|
|
||||||
| THS004377 BT50 BACK LOCKING COLLET HOLDER UC10 L=200 mm | ||||||
|
|
||||||
| THS004378 BT40 BACK LOCKING COLLET HOLDER UC10 L=120 mm | ||||||
|
|
||||||
| THS004379 BT40 BACK LOCKING COLLET HOLDER UC10 L=150 mm | ||||||
|
|
||||||
| THS004380 BT40 BACK LOCKING COLLET HOLDER UC16 L= 90 mm | ||||||
|
|
||||||
| THS004381 BT30 BACK LOCKING COLLET HOLDER UC10 L= 70 mm | ||||||
|
|
||||||
| THS004382 BT30 BACK LOCKING COLLET HOLDER UC16 L= 90 mm | ||||||
|
|
||||||
| THS004383 BT40 BACK LOCKING COLLET HOLDER UC10 L= 90 mm | ||||||
|
|
||||||
| THS004587 BT50 BACK LOCKING COLLET HOLDER UC16 L=120 mm | ||||||
|
|
||||||
Updated 202505.11
Tool holder machine interface: CNC MILLING SPINDLE turret, BT-50, TAPER, ANY
