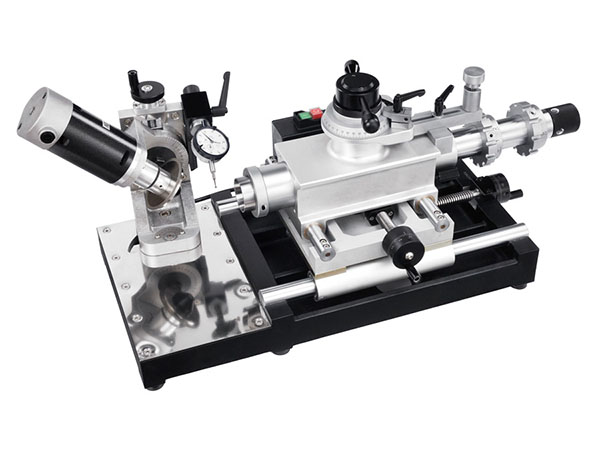

SHARPENING MACHINE HELICAL TYPE EH832
THS003779
$ USD
722600
722600
| Specification | |
| Tool diameter | Ø8 ~ Ø32 mm |
| Spiral length with workhead spindle | 160 mm |
| Longitudinal travel of workhead | 150 mm |
| Cross travel of workhead | 130 mm |
| Vertical movement of wheel head | 50 mm |
| Tilting angle of wheel head | ±90° |
| Workhead spindle | C5 |
| Spiral flute and axial relief grinding | Infinitely variable, left and right hand |
| Helix angle | 0° ~ 90° |
| Grinding wheel bore | 19.06 mm |
| Grinding wheel diameter | Max. 90 mm |
| Grinding motor | 0.25 kW |
| Grinding wheel direction | Clockwise |
| Grinding spindle speed | 4800 RPM (250w-300w) |
| Power supply | AC110V 60Hz |
Standard Accessories include:
Taper grinding device
Indexing plate 10,12 divisions
Operating tools
Instruction manual
Grinding: SDC (1.5 mm • Ø8 ~ Ø12 mm), SDC (2.0 mm • Ø12 ~ Ø32 mm) Carbide Only
C5 Collet: Ø12 • Ø15 • Ø20 • Ø25 • Ø32 mm • Diameter Ø50 mm
Collet Holder: C20-SSK10-80L x 1 pcs (Ø6 • Ø8 • Ø10 mm)
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS003779 SHARPENING MACHINE HELICAL TYPE EH832 | ||||||
|
|
||||||
Updated 202504.30
