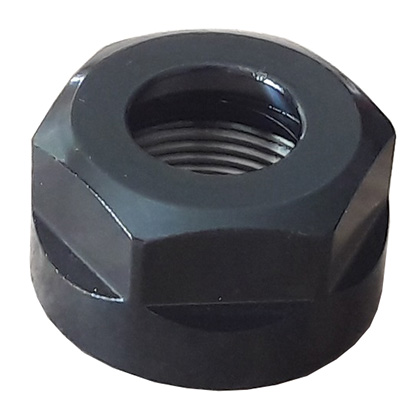

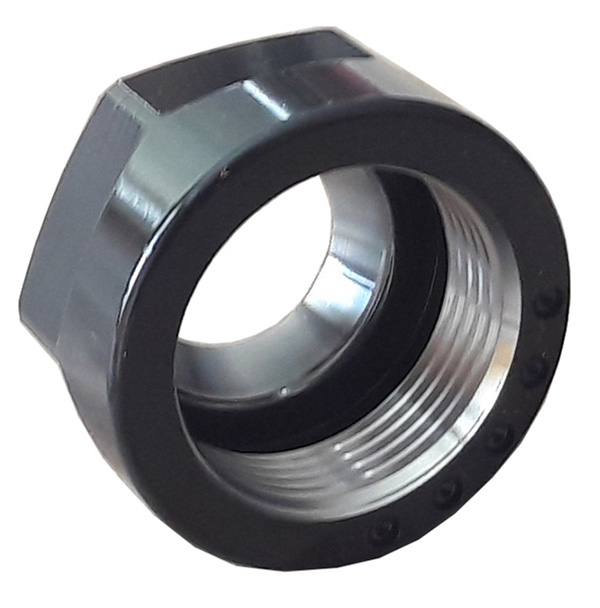

COLLET NUT ER11
THS004812
$ USD
23500
23500
| SKU | Ø D | L | G | Clamping Torque |
| THS004812 | 19 | 12 | M14x0.75 | 5 |
| THS004811 | 30 | 17.5 | M22x1.5 | 7 |
| THS004814 | 34 | 19 | M25x1.5 | 12 |
CAUTION: The tightening of the clamping nut shall not exceed limited torques, otherwise the toolholder, clamping nuts and collets may be damaged or worn out.
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004811 COLLET NUT ER16 OD=27 mm FOR CNC | ||||||
|
|
||||||
| THS004812 COLLET NUT ER11 | ||||||
|
|
||||||
| THS004814 COLLET NUT ER20 | ||||||
|
|
||||||
| THS018272 COLLET NUT ER16 OD=25 mm FOR VDI | ||||||
|
|
||||||
Updated 202404
COMPATIBLE LATHES
