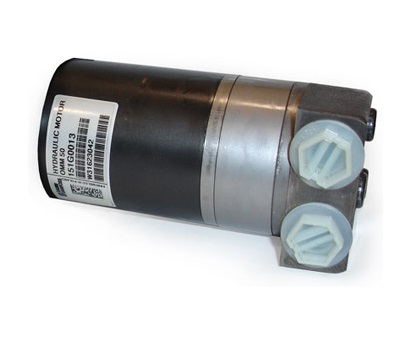

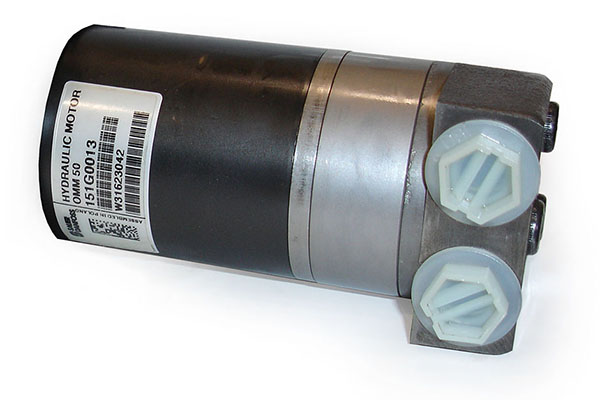

Figure L30000580: OMM20 HYDRAULIC MOTOR SIDE PORT METRIC

$ CAD CAD 61600

OMM20 HYDRAULIC MOTOR SIDE PORT METRIC, SKU001563

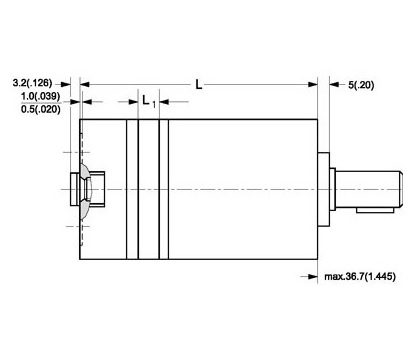

Table L30000580: OMM20 HYDRAULIC MOTOR SIDE PORT METRIC

Hydraulic Motor ModelLength
L max.mm [in]L1 mm [in]
OMM08 Side Port104.0 [4.09]3.5 [0.14]
OMM12.5 Side Port105.0 [4.17]5.5 [0.22]
OMM20 Side Port109.0 [4.29]8.5 [0.33]
OMM32 Side Port114.0 [4.49]13.5 [0.53]
OMM40 Side Port118.0 [4.65]17.0 [0.67]
OMM50 Side Port112.0 [4.80]21.5 [0.85]


Technical data for OMM with 16 mm and 5/8 inch cylindrical shaft


TypeOMMOMMOMMOMMOMMOMM
Motor size812.520324050
Geometric
displacement
cm3
in3
8.2
(0.50)
12.9
(0.79)
19.9
(1.22)
31.6
(1.93)
39.8
(2.43)
50.3
(3.08)
Max.speedmin-1
rpm
cont.195015501000630500400
int. 1)245019401250800630500
Max.torqueNm
(lbf-in)
cont.11
(95)
16
(140)
25
(220)
40
(350)
45
(400)
46
(410)
int. 1)15
(135)
23
(200)
35
(310)
57
(500)
70
(620)
88
(780)
peak 2)21
(185)
33
(290)
51
(450)
64
(570)
82
(725)
100
(890)
Max.outputkW
hp
cont.1.8
(2.4)
2.4
(3.2)
2.4
(3.2)
2.4
(3.2)
2.2
(3.0)
1.8
(2.4)
int. 1)2.6
(3.5)
3.2
(4.3)
3.2
(4.3)
3.2
(4.3)
3.2
(4.3)
3.2
(4.3)
Max.pressure dropbar
psi
cont.100
(1450)
100
(1450)
100
(1450)
100
(1450)
90
(1310)
70
(1020)
int. 1)140
(2030)
140
(2030)
140
(2030)
140
(2030)
140
(2030)
140
(2030)
peak 2)200
(2900)
200
(2900)
200
(2900)
160
(2320)
160
(2320)
160
(2320)
Max.oil flowl/min
gpm
cont.16
(4.2)
20
(5.3)
20
(5.3)
20
(5.3)
20
(5.3)
20
(5.3)
int. 1)20
(5.3)
25
(6.6)
25
(6.6)
25
(6.6)
25
(6.6)
25
(6.6)
Max.starting pressure
with unloaded shaft
bar
psi
4
(60)
4
(60)
4
(60)
4
(60)
4
(60)
4
(60)
Min.starting
torque
at max.press.drop cont.
Nm (lbf-in)
7
(60)
12
(105)
21
(185)
34
(300)
38
(335)
41
(365)
at max.press.drop int. 1)
Nm (lbf-in)
10
(90)
17
(150)
29
(255)
48
(425)
62
(550)
79
(700)
Min.speed 3)min-1
(rpm)
504030303030


TypeMax.inlet pressure
OMM 08 ~ 50bar
(psi)
cont.140
(2030)
bar
(psi)
int. 1)175
(2540)
bar
(psi)
peak 2)225
(3260)

1) Intermittent operation: the permissible values may occur for max. 10% of every minute.

2) Peak load: the permissible values may occur for max. 1% of every minute.

3) Operation by lower speeds may be slightly less smooth.
