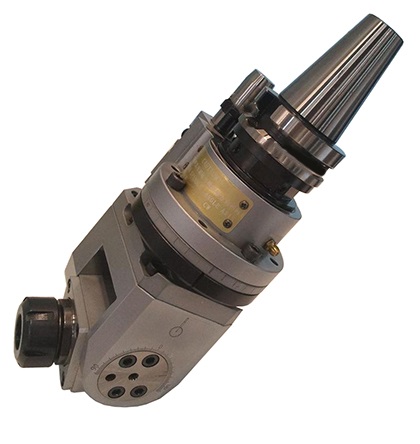

SK40 ANGULAR HEAD UNIVERSAL ER25 L=176 mm PIN= 65 mm

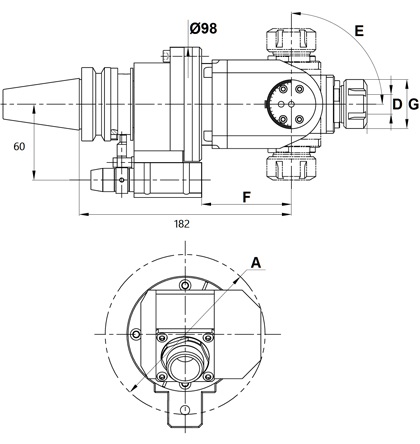

SKU Ø D S L A B C E F Ø G
SKU003858 2 ~ 16 60 182 138 65 29 ± 90° 80 42
SKU003856 65
SKP010717 2 ~ 16 80 200 138 65 29 ± 90° 80 42
SKP011734 85
SKP011738 110
SKP010720-60 2 ~ 16 60 176 138 65 29 ± 90° 80 42
SKP010720-65 65
SKP010719-80 2 ~ 16 80 178 138 65 29 ± 90° 80 42
SKP010719-85 85
SKP010719-110 110
SKU Interface Direction Capacity Projection Rotation Hand Coolant Offset

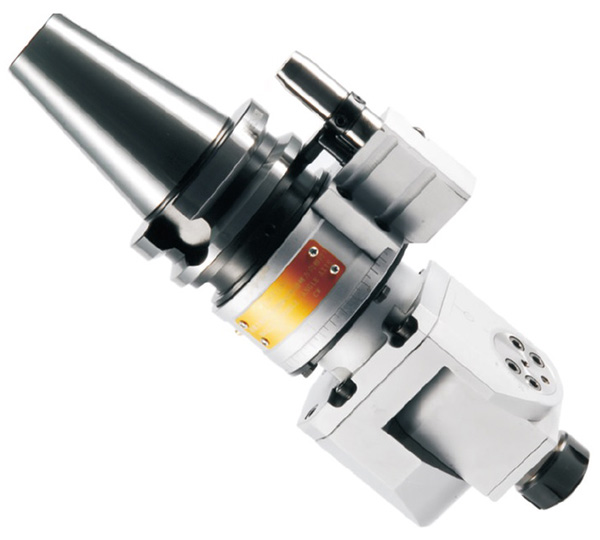

SKU003856 BT40 UNIVERSAL ANGULAR HEAD ER25 L=182 mm PIN= 65 mm



SKU003858 BT40 UNIVERSAL ANGULAR HEAD ER25 L=182 mm PIN= 60 mm



SKU014184 BT50 ANGULAR HEAD UNIVERSAL ER25 L=200 mm PIN=110 mm
BT
50
TAPER

SKU014185 BT50 ANGULAR HEAD UNIVERSAL ER25 L=200 mm PIN= 80 mm
BT
50
TAPER

SKU014186 BT50 ANGULAR HEAD UNIVERSAL ER25 L=200 mm PIN= 85 mm
BT
50
TAPER

SKU014187 SK40 ANGULAR HEAD UNIVERSAL ER25 L=176 mm PIN= 65 mm



SKU014188 SK50 ANGULAR HEAD UNIVERSAL ER25 L=178 mm PIN= 85 mm
