CAT50 ANGULAR HEAD 90 DEGREE BT40 L=202 mm PIN=110 mm BOLT MOUNTED
THS014076
| Run-out: | 0.002 mm |
| Material: | Alloy Steel |
| R.P.M.: | Max. 4000 RPM |
| Torque: | Max. 60 Nm |
| Gear Ratio: | 1 : 1 |
| Spindle Type: | BT, SK, CAT |
| Output Interface: | BT 40 |
| Standard Accessory: | Open End Wrench, L-type Wrench |
| Output Rotation: | Reverse to Input Rotation |

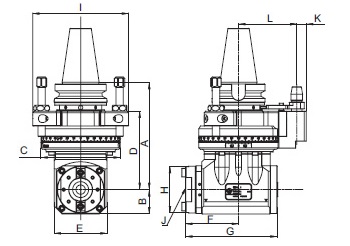

| SKU | A | B | C | D | E | F | G | H | I | J | K | L |
| SKP020017 | 202.5 | 46 | 150 | 148 | 100 | 100 | 193 | 88 | 239 | BT40 | 18 | 110 |
| SKP020043 | ||||||||||||
| SKP020018 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS014075 BT50 ANGULAR HEAD 90 DEGREE BT40 L=202 mm PIN=110 mm BOLT MOUNTED | ||||||
|
|
||||||
| THS014076 CAT50 ANGULAR HEAD 90 DEGREE BT40 L=202 mm PIN=110 mm BOLT MOUNTED | ||||||
|
|
||||||
| THS014081 SK50 ANGULAR HEAD 90 DEGREE BT40 L=202 mm PIN=110 mm BOLT MOUNTED | ||||||
|
|
||||||
Updated 202404
