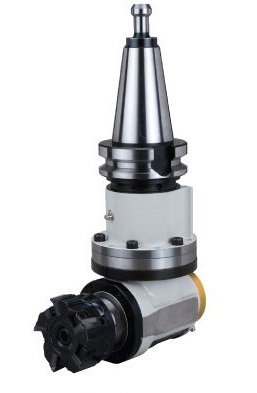

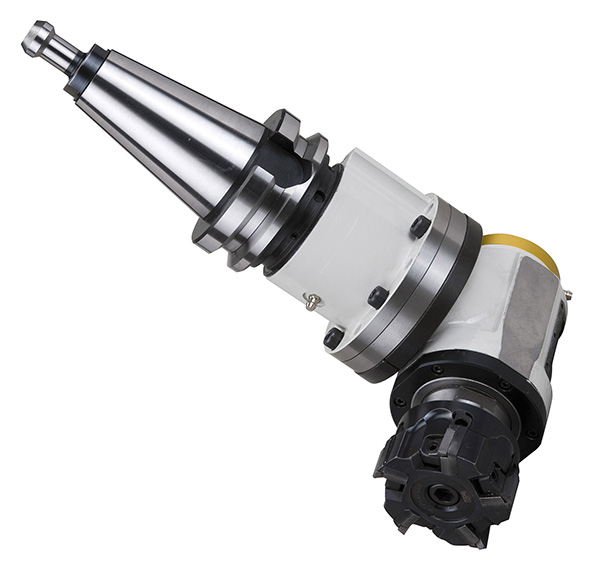

CAT40 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=192 mm PIN= 70 mm
THS014059
$ USD
558900
558900
| Run-out: | 0.002 mm |
| Material: | FCD60 ~ FCD65 |
| R.P.M.: | Max 4000 RPM |
| Torque: | Max. 47 Nm |
| Gear Ratio: | 1 : 1 |
| Spindle Type: | BT, SK, CAT |
| Standard Accessory: | Open End Wrench |
| Output Rotation: | Reverse to Input Rotation |

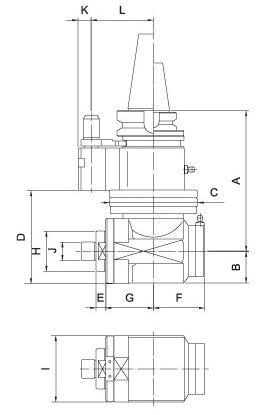

| SKU | A | B | C | D | E | F | G | H | I | J | K | L | N.W. (kg) |
| SKP009829 | 192 | 44.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 90 | 25.4 | 17 | 70/80/85 | 12.1 |
| SKP009830 | 195 | 44.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 90 | 25.4 | 17 | 80/85/110 | 14.7 |
| SKP009831 | 192 | 44.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 90 | 25.4 | 17 | 70/80/85 | 12.1 |
| SKP009832 | 195 | 44.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 90 | 25.4 | 17 | 80/85/110 | 14.7 |
| SKP009833 | 192 | 44.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 90 | 25.4 | 17 | 70/80/85 | 12.1 |
| SKP009834 | 195 | 44.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 90 | 25.4 | 17 | 80/85/110 | 14.7 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS014053 BT40 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=192 mm PIN= 70 mm | ||||||
|
|
||||||
| THS014054 BT40 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=192 mm PIN= 80 mm | ||||||
|
|
||||||
| THS014055 BT40 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=192 mm PIN= 85 mm | ||||||
|
|
||||||
| THS014056 BT50 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=195 mm PIN=110 mm | ||||||
|
|
||||||
| THS014057 BT50 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=195 mm PIN= 80 mm | ||||||
|
|
||||||
| THS014058 BT50 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=195 mm PIN= 85 mm | ||||||
|
|
||||||
| THS014059 CAT40 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=192 mm PIN= 70 mm | ||||||
|
|
||||||
| THS014060 CAT40 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=192 mm PIN= 80 mm | ||||||
|
|
||||||
| THS014061 CAT40 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=192 mm PIN= 85 mm | ||||||
|
|
||||||
| THS014062 CAT50 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=195 mm PIN=110 mm | ||||||
|
|
||||||
| THS014063 CAT50 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=195 mm PIN= 80 mm | ||||||
|
|
||||||
| THS014064 CAT50 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=195 mm PIN= 85 mm | ||||||
|
|
||||||
| THS014065 SK40 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=192 mm PIN= 70 mm | ||||||
|
|
||||||
| THS014066 SK40 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=192 mm PIN= 80 mm | ||||||
|
|
||||||
| THS014067 SK40 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=192 mm PIN= 85 mm | ||||||
|
|
||||||
| THS014068 SK50 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=195 mm PIN=110 mm | ||||||
|
|
||||||
| THS014069 SK50 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=195 mm PIN= 80 mm | ||||||
|
|
||||||
| THS014070 SK50 ANGULAR HEAD 90 DEGREE FACE MILL HEAVY DUTY OD=( 1") L=195 mm PIN= 85 mm | ||||||
|
|
||||||
