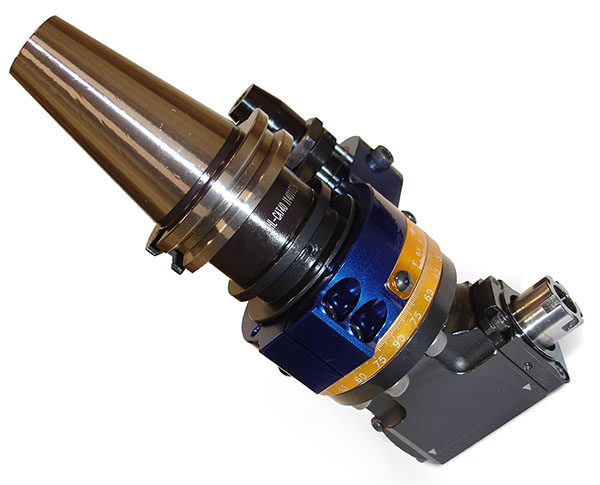

CAT30 ANGULAR HEAD 90 DEGREE SLIM A1 ER16 L=122 mm PIN= 65 mm
THS014094

$ USD USD 329600
Run-out: 0.002 mm
Material: Alloy Steel
R.P.M.: Max. 4000 RPM
Torque: Max. 12 Nm
Gear Ratio: 1 : 1
Spindle Type: BT, SK, CAT
Standard Accessory: Open End Wrench, L-type Wrench
Output Rotation: Reverse to Input Rotation

SKU A B C D E F G H I J K L M
SKP013558 122 20 70 53.5 17 33.1 38.3 22 39.5 1~10(ER16) 55 21 95
SKP019994 122 20 70 53.5 17 33.1 38.3 22 39.5 1~10(ER16) 55 21 95
SKP020032 122 20 70 53.5 17 33.1 38.3 22 39.5 1~10(ER16) 55 21 95
SKP020031 122 20 70 53.5 17 33.1 38.3 22 39.5 1~10(ER16) 55 21 95
SKP019992 122 20 70 53.5 17 33.1 38.3 22 39.5 1~10(ER16) 55 21 95
THS007012 122 20 70 53.5 17 33.1 38.3 22 39.5 1~10(ER16) 55 21 95
SKP064272 122 20 70 53.5 17 33.1 38.3 22 39.5 1~10(ER16) 65 21 95
SKP064273 122 20 70 53.5 17 33.1 38.3 22 39.5 1~10(ER16) 65 21 95
SKP064276 122 20 70 53.5 17 33.1 38.3 22 39.5 1~10(ER16) 65 21 95
SKP064277 122 20 70 53.5 17 33.1 38.3 22 39.5 1~10(ER16) 65 21 95
SKP064274 122 20 70 53.5 17 33.1 38.3 22 39.5 1~10(ER16) 65 21 95
THS007011 122 20 70 53.5 17 33.1 38.3 22 39.5 1~10(ER16) 65 21 95

DIRECTION CAPACITY PROJECTION ROTATION HAND COOLANT OFFSET
THS007011 CAT40 ANGULAR HEAD ER16 L=122 mm PIN= 65 mm
STRAIGHT ER16 122 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS007012 CAT40 ANGULAR HEAD ER16 L=122 mm PIN= 55 mm
STRAIGHT ER16 122 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS014009 SK30 ANGULAR HEAD ER16 L=122 mm PIN= 55 mm SLIM A1

THS014010 SK30 ANGULAR HEAD ER16 L=122 mm PIN= 65 mm SLIM A1

THS014011 SK40 ANGULAR HEAD ER16 L=122 mm PIN= 55 mm SLIM A1

THS014012 SK40 ANGULAR HEAD ER16 L=122 mm PIN= 65 mm SLIM A1

THS014084 BT30 ANGULAR HEAD 90 DEGREE SLIM A1 ER16 L=122 mm PIN= 55 mm

THS014085 BT30 ANGULAR HEAD 90 DEGREE SLIM A1 ER16 L=122 mm PIN= 65 mm

THS014086 BT40 ANGULAR HEAD 90 DEGREE SLIM A1 ER16 L=122 mm PIN= 55 mm

THS014087 BT40 ANGULAR HEAD 90 DEGREE SLIM A1 ER16 L=122 mm PIN= 65 mm

THS014093 CAT30 ANGULAR HEAD 90 DEGREE SLIM A1 ER16 L=122 mm PIN= 55 mm

THS014094 CAT30 ANGULAR HEAD 90 DEGREE SLIM A1 ER16 L=122 mm PIN= 65 mm
