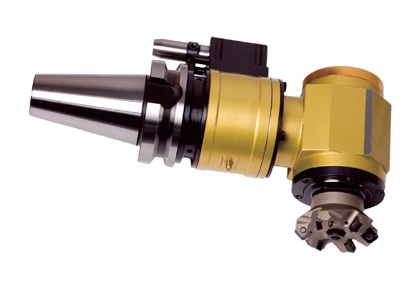

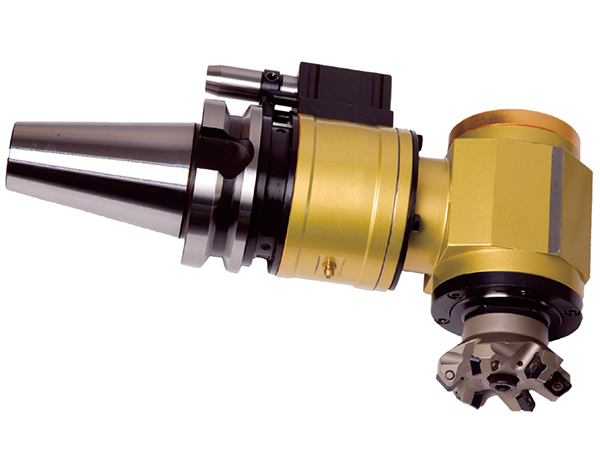

BT50 ANGULAR HEAD 90 DEGREE FACE MILL OD=22 mm L=195 mm PIN= 80 mm
THS014029
$ USD
652500
652500

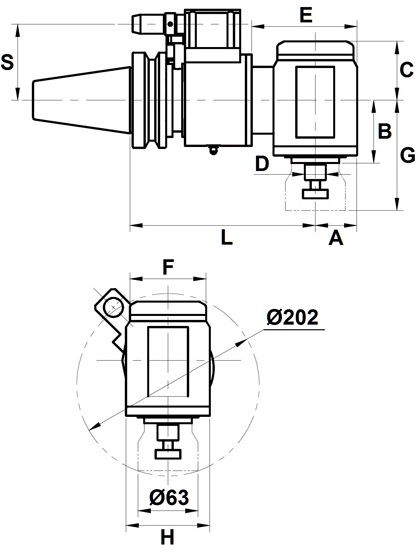

| SKU | Ø D | S | L | A | B | C | E | F | G | H |
| SKP010721 | 22 | 80 | 195 | 44 | 66 | 63.8 | 113 | 80 | 116 | 88 |
| SKP010721 | 85 | |||||||||
| SKP010721 | 110 | |||||||||
| SKP010722 | 22 | 80 | 175 | 44 | 66 | 63.8 | 113 | 80 | 116 | 88 |
| SKP010722 | 85 | |||||||||
| SKP010722 | 110 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS014028 BT50 ANGULAR HEAD 90 DEGREE FACE MILL OD=22 mm L=175 mm PIN= 80 mm | ||||||
|
|
||||||
| THS014029 BT50 ANGULAR HEAD 90 DEGREE FACE MILL OD=22 mm L=195 mm PIN= 80 mm | ||||||
|
|
||||||
Updated 202404
Tool holder machine interface: CNC MILLING SPINDLE turret, BT-50, TAPER, ANY
