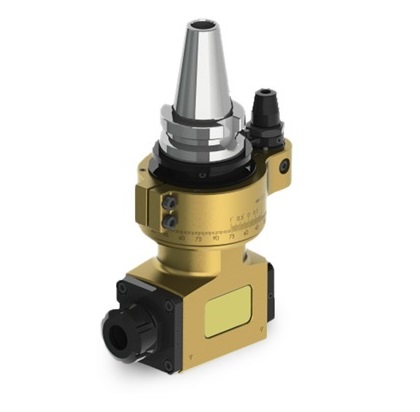

BT40 ANGULAR HEAD 90 DEGREE SLIM A2 ER25 L=155 mm PIN= 65 mm
THS014091
$ USD
368800
368800
| Run-out: | 0.002 mm |
| Material: | Alloy Steel |
| R.P.M.: | Max. 4000 RPM |
| Torque: | Max. 30 Nm |
| Gear Ratio: | 1 : 1 |
| Spindle Type: | BT, SK(ISO), CAT |
| Standard Accessory: | Open End Wrench, ER Wrench, ER Nut |
| Output Rotation: | Reverse to Input Rotation |

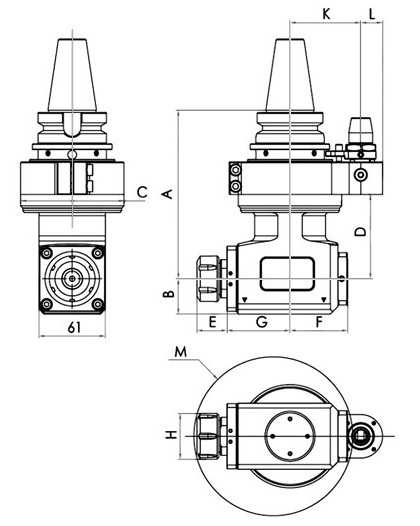

| SKU | A | B | C | D | E | F | G | H | I | J | K | L | M |
| SKU014091 | 155 | 32.5 | 95 | 61 | 27.5 | 53 | 58 | 42 | 61 | 1~16(ER25) | 65 | 20 | 146 |
| SKU014013 | 155 | 32.5 | 95 | 61 | 27.5 | 53 | 58 | 42 | 61 | 1~16(ER25) | 65 | 20 | 146 |
| SKU014007 | 155 | 32.5 | 95 | 61 | 27.5 | 53 | 58 | 42 | 61 | 1~16(ER25) | 65 | 20 | 146 |
| SKU014092 | 155 | 32.5 | 95 | 77.5 | 32.5 | 53 | 58 | 50 | 61 | 3~20(ER32) | 65 | 20 | 152 |
| SKU014014 | 155 | 32.5 | 95 | 77.5 | 32.5 | 53 | 58 | 50 | 61 | 3~20(ER32) | 65 | 20 | 152 |
| SKU014008 | 160.5 | 32.5 | 95 | 77.5 | 32.5 | 53 | 58 | 50 | 61 | 3~20(ER32) | 65 | 20 | 152 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS014007 CAT40 ANGULAR HEAD ER25 L=155 mm PIN= 65 mm SLIM A2 | ||||||
|
|
||||||
| THS014008 CAT40 ANGULAR HEAD ER32 L=160 mm PIN= 65 mm SLIM | ||||||
|
|
||||||
| THS014013 SK40 ANGULAR HEAD ER25 L=155 mm PIN= 65 mm SLIM A2 | ||||||
|
|
||||||
| THS014014 SK40 ANGULAR HEAD ER32 L=155 mm PIN= 65 mm SLIM A3 | ||||||
|
|
||||||
| THS014091 BT40 ANGULAR HEAD 90 DEGREE SLIM A2 ER25 L=155 mm PIN= 65 mm | ||||||
|
|
||||||
| THS014092 BT40 ANGULAR HEAD 90 DEGREE SLIM A3 ER32 L=155 mm PIN= 65 mm | ||||||
|
|
||||||
Updated 202404
