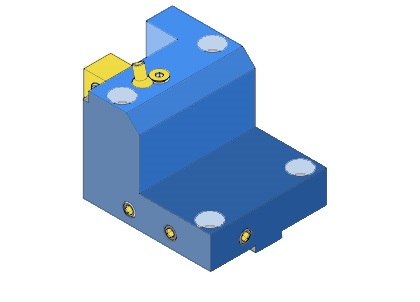

BMT BOLT PATTERN 69x71 TURNING HOLDER H=25 mm FOR NAKAMURA WT300 NAKAMURA SUPERMILL WY250
THS010018
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS

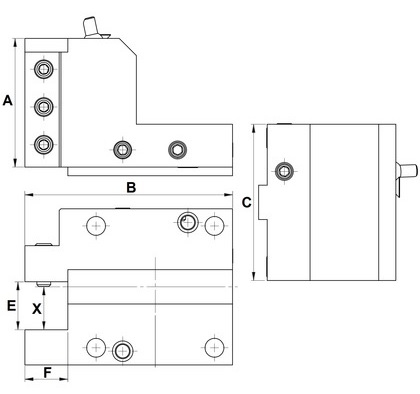

| SKU | X | A | B | C | E | F | NAKAMURA LATHE |
| THS010018 | 25 | 65 | 116 | 45.5 | 28 | 25 | NAKAMURA SUPERMILL WT-150L NAKAMURA SUPERMILL WY-250L |
| THS007574 | 75 | 121 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS007574 BMT BOLT PATTERN 69x71 TURNING HOLDER H=25 mm FOR NAKAMURA WT300 NAKAMURA SUPERMILL WT150 | ||||||
| STRIGHT | 25 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | |
| THS010018 BMT BOLT PATTERN 69x71 TURNING HOLDER H=25 mm FOR NAKAMURA WT300 NAKAMURA SUPERMILL WY250 | ||||||
| STRIGHT | 25 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | |
Updated 202305
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT300-65, STATIC, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
