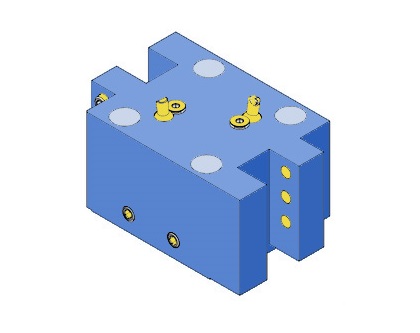

BMT BOLT PATTERN 69x71 TURNING HOLDER DOUBLE 2xH=25 mm FOR NAKAMURA WT300 SUPERMILL WT150
THS007288
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
$ USD
113000
113000

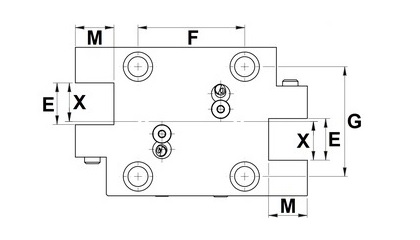

| SKU | X | A | B | C | E | F | G | M | NAKAMURA LATHE |
| THS007289 | 20 | 112 | 63 | 79 | 22.5 | 40 | 55 | 20 | NAKAMURA WT100 NAKAMURA WY100 |
| THS007288 | 25 | 150 | 70 | 96 | 27 | 69 | 71 | 25 | NAKAMURA WT300 NAKAMURA SUPERMILL WT150 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS007288 BMT BOLT PATTERN 69x71 TURNING HOLDER DOUBLE 2xH=25 mm FOR NAKAMURA WT300 SUPERMILL WT150 | ||||||
| STRIGHT | 25 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | |
| THS007289 BMT BOLT PATTERN 40x55 TURNING HOLDER DOUBLE 2xH=20 mm FOR NAKAMURA WT150 NAKAMURA WY100 | ||||||
| STRIGHT | 20 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | |
Updated 202305
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 69x71 NAKAMURA WT300, STATIC, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
